Product Details:
|
Material: | Tungsten Carbide | ISO Grade: | G20 |
---|---|---|---|
Application: | Carbide Pull Mold | Hardness: | HRA 89.5 |
TRS: | 2800 | Density: | 14.1 |
Outer Diameter: | 45 | Inner Diameter: | 16 |
Roughness: | Ra 0.1 | ||
High Light: | Tungsten Carbide Pull Rod Mold HRA 89.5,Tungsten Carbide Mould G20,Tungsten Carbide Mould Ra 0.1 |

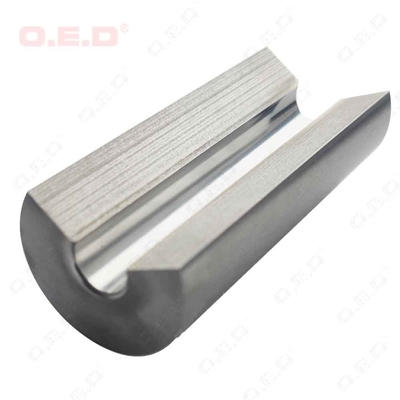

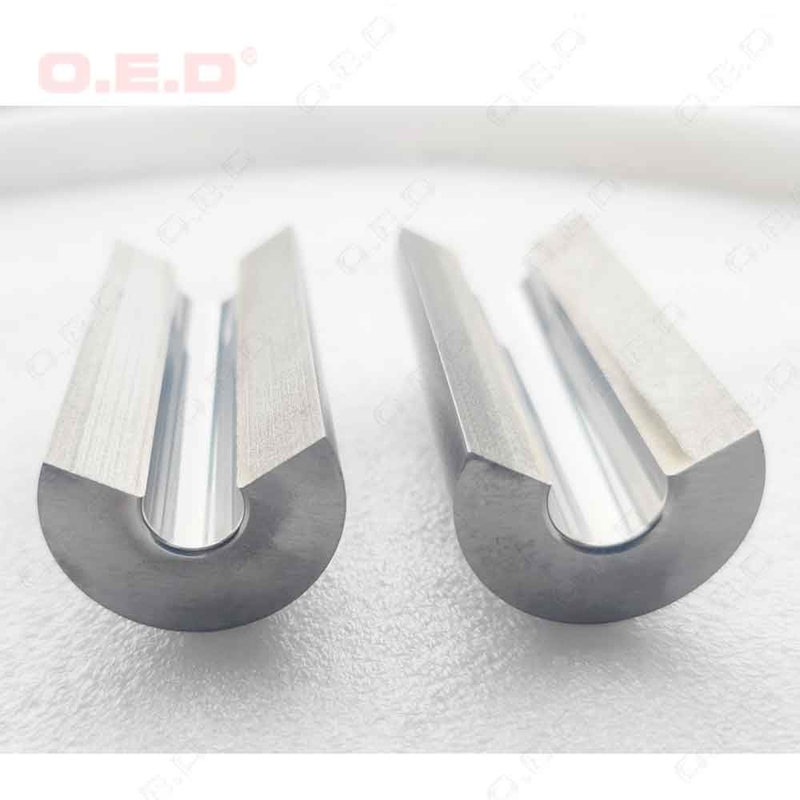

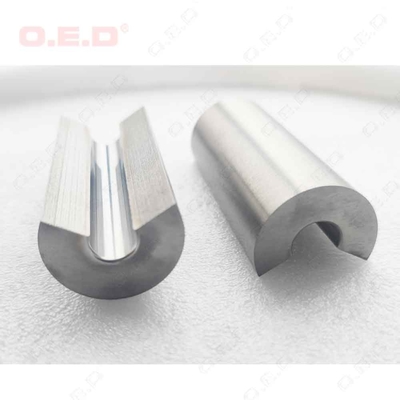

Half Round Rod Tungsten Carbide Pull Rod Mold Parts G20 High Strength Carbide Mold
Cemented carbide molds are used as mechanical equipment parts with high requirements for industrial production.
They are commonly used as cemented carbide stamping molds, cemented carbide progressive molds, cemented carbide pressing molds, cemented carbide shrink tube molds, and cemented carbide wire drawing molds. , Carbide drawing molds and other purposes.
Length 110mm +0.05mm
Innder diameter 9.5mm -0.005mm
The roughness of inner diameter Ra 0.1

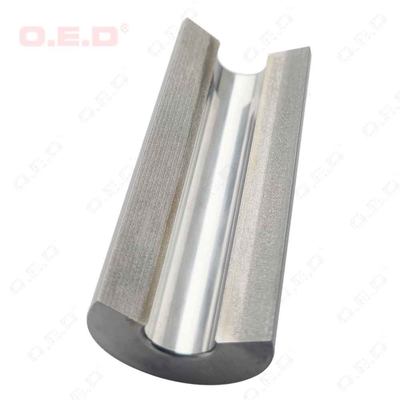

Half-round with polished inner diameter for precision mold parts.
we specialized in producing Punches, Ejector Pins and sleeves, Die Buttons, Bushes, Ejector Punches, Drill Rods, Ball Cages, Springs,Block Sets of many different standards
Recommended carbide grades:
ISO Grade | Carbide grade | WC% | Co % | Hardness(HRA±0.5) | Density g/cm3 |
TRS N/mm2 |
Recommended Application |
K01 | YG3 | 97 | 3 | 91.5 | 15.2 | 1500 | Suitable for steel wire, non-ferrous metal and alloy wire rod or material |
K01 | YG3X | 97 | 3 | 92.5 | 15.2 | 1450 | High hardness, good wear resistance, low impact and low impact. Suitable for fine steel wire, non-ferrous metal and alloy wire . |
K10 | YG6 | 94 | 6 | 90.5 | 14.95 | 2600 | For rough machining of non-ferrous metals. |
K15 | YG6X | 94 | 6 | 91.5 | 14.85 | 2700 | Suitable for processing of non ferrous, metal finishing and woodworking cutting tooling |
K10 | YG6A | 94 | 6 | 92 | 14.95 | 2450 | For wire drawing die and woodworking cutting tools |
K30 | YG8 | 92 | 8 | 89.5 | 14.7 | 2700 | For wire drawing die,drawing die |
K40 | YG11 | 89 | 11 | 88.5 | 14.45 | 2900 | For wearing parts and mining tools |
G30 | YG15 | 86.5 | 13.5 | 87 | 14.0 | 2280 | Strength is the best, the wear resistance is low, it is suitable for impact rotary rock drill and heavy rock drill, rock hard rock layer. |
