Product Details:
|
| Material: | Tungsten Carbide | ISO Grade: | K01 |
|---|---|---|---|
| Application: | Recyling Wood | Length: | 40mm |
| Width: | 20mm | Thickness: | 1.2mm |
| Hardness: | HRA 93.6 | TRS: | 2000 |
| Density: | 15.1 | Grain Size: | Fine |
| High Light: | Hard Wood Carbide Planer Knives,Tungsten Carbide Planer Knives,HRA 93.6 Carbide Planer Knives |
||

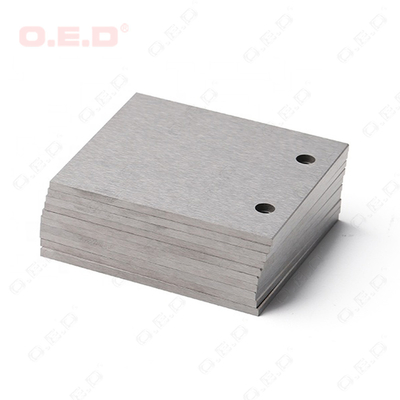

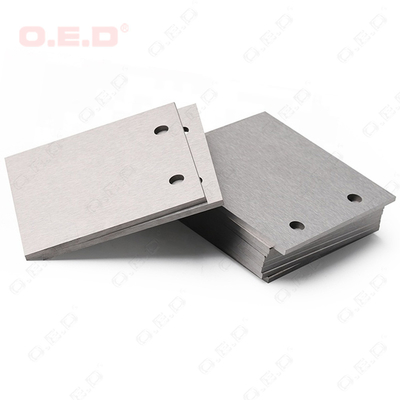

Hard Wood Carbide Woodworking Planer Knifes Tungsten Carbide Plywood Blades
High hardness woodworking knifes
Hardness HRA 94
Length 40mm
Width 20mm
Thickness 1.2mm
Sharp edges with quality grinding.
Unground carbide flat bar blanks for Solid Carbide Strips and carbide blanks for other carbide tools like Saw tips for woodworking, Indexable knives, Blanks for profiling, and rods for woodturning tools are all available.
Recommened Grades of carbide woodworking tools:
| ISO Code | Grade | Density g/cm3 |
Hardness HRA | TRS N/mm2 |
Grain size | Appplications | Proposal for welding |
| K01 | YG3X | 14.9-15.1 | 94.5 | 2000 | Ultra fine | For the cutting of the timber such as shaving board, laminated board, density board and compound material. | Recommend to use resistance welding .and the temperature should not be too high |
| K05 | YG6AX | 14.9-15.1 | 93.6 | 2600 | Ultra fine | ||
| K20 | YG6 | 14.85 -15.05 | 91 | 2100 | Midium | For The Cutting of Ordinary Wood | Recommend to use resistance welding .and the temperature should not be too high |
| K30 | YG8 | 14.60-14.85 | 90 | 2400 | Coarse | For the cutting of the ordinary wood,also for the aluminum | |
| K40 | YG8C | 14.5-14.8 | 88.5 | 2400 | Coarse | For the cutting of the recycling wood especially for some iron nails and stones in it | |
| K10 | YG6X | 14.75-14.95 | 92 .0 | 2000 | Fine | For the citing of the wood specially | Recommend to use the high frequeney welding |
| K10 | YG8X | 14.60 -14.85 | 91.5 | 2200 | Fine | For the citing of the wood and aluminum specially |
