Product Details:
|
Material: | Tungsten Carbide | ISO Grade: | K30 |
---|---|---|---|
Application: | Woodworking Strips | Length: | 310mm |
Width: | 5-20mm | Thickness: | 1.2-3mm |
Hardness: | HRA 94 | TRS: | 2000 |
Density: | 15.3 | Grain Size: | Midium |
High Light: | K30 Carbide Saw Tip,310mm Carbide Saw Tip |

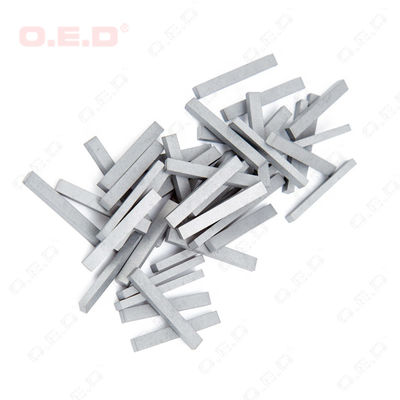

saw blades tips for woodworking K30 carbide tools circular tips
Stanrard carbide strip, standard length 310,320. Stips can be used to process a variety of wood and metal materials.
Multiple grades are available and the length of the requirements can be customized.
Stable quality for woodworking planer machine to machin hard wood.
Standard sizes of carbide strips
Type | Dimension (mm) | ||
L | W | T | |
S | 310 | 4 | 1.5-4.0 |
S | 310 | 6 | 1.5-6.0 |
S | 310 | 8 | 1.5-8.0 |
S | 310 | 10 | 1.5-8.0 |
S | 310 | 12 | 1.5-8.0 |
S | 310 | 14 | 1.5-8.0 |
S | 310 | 15 | 1.5-10.0 |
S | 310 | 16 | 1.5-8.0 |
S | 310 | 18 | 1.5-8.0 |
S | 310 | 20 | 1.5-8.0 |
S | 310 | 24 | 1.5-8.0 |
S | 310 | 25 | 1.5-8.0 |
S | 310 | 28 | 1.5-8.0 |
S | 310 | 30 | 1.5-8.0 |
S | 310 | 45 | 3-12.0 |
S | 310 | 50 | 2-8.0 |
We are good at special tools according to customer's drawing. So don't hesitate to contact for any shapes of carbide tools.
Unground carbide flat bar blanks for Solid Carbide Strips and carbide blanks for other carbide tools like Saw tips for woodworking, Indexable knives, Blanks for profiling, and rods for woodturning tools are all available.
Recommened Grades of carbide woodworking tools:
ISO Code | Grade | Density g/cm3 |
Hardness HRA | TRS N/mm2 |
Grain size | Appplications | Proposal for welding |
K01 | YG3X | 14.9-15.1 | 94.5 | 2000 | Ultra fine | For the cutting of the timber such as shaving board, laminated board, density board and compound material. | Recommend to use resistance welding .and the temperature should not be too high |
K05 | YG6AX | 14.9-15.1 | 93.6 | 2600 | Ultra fine | ||
K20 | YG6 | 14.85 -15.05 | 91 | 2100 | Midium | For The Cutting of Ordinary Wood | Recommend to use resistance welding .and the temperature should not be too high |
K30 | YG8 | 14.60-14.85 | 90 | 2400 | Coarse | For the cutting of the ordinary wood,also for the aluminum | |
K40 | YG8C | 14.5-14.8 | 88.5 | 2400 | Coarse | For the cutting of the recycling wood especially for some iron nails and stones in it | |
K10 | YG6X | 14.75-14.95 | 92 .0 | 2000 | Fine | For the citing of the wood specially | Recommend to use the high frequeney welding |
K10 | YG8X | 14.60 -14.85 | 91.5 | 2200 | Fine | For the citing of the wood and aluminum specially |
