Product Details:
|
| Material: | Tungsten Carbide | Type: | Cutter Tools |
|---|---|---|---|
| Application: | Carbide Shearing Blades | ISO Grade: | K40 |
| TRS: | 3800 | Hardness: | HRA 91.9 |
| Density: | 14.5 | Length: | 120 |
| Width: | 20 | Thickness: | 4 |
| High Light: | Industrial Cutting Tungsten Carbide Blades,Tungsten Carbide Blades 3800 TRS,HRA 91.9 tungsten carbide blade |
||

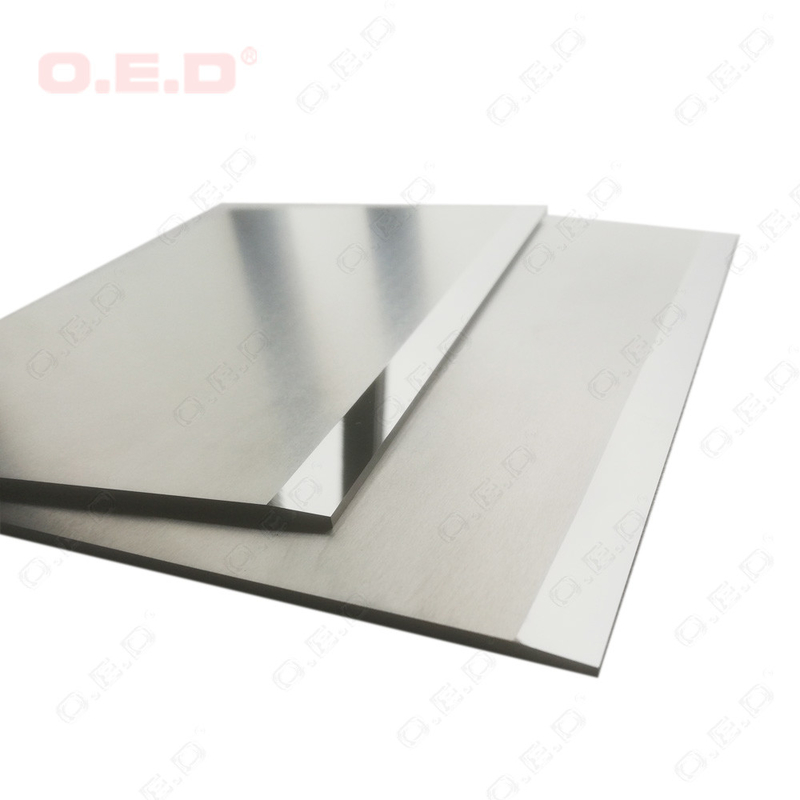

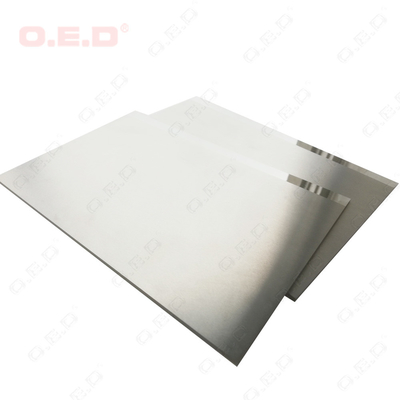

Tungsten Carbide Wire Cutter Metal Working Knives Industries Cutting Shearing Blades
Length 120mm
Width 20mm
Thickness 4mm
Cutting angle 60°
Special cutting blade for cutting wires. Cutting edges polished.
Recommended grades for Metal working:
| Application Code |
Chemical Composition | Physical Properties of powder |
Physical and mechanical properties and mirco structure as stintered |
Application recommended | ||||||||
| Co | Tic/ TacNbc |
WC | Hall Flow | Apparent density |
Density | Hardness | Transverse rupture strength |
Coercivity | Magnetic saturation |
Porosity | ||
| s/25cm3 | g/cm3 | g/cm3 | HV 30 | N/mm2 | KA/m | % | ||||||
| K05 | 6 | 0.3 | 93.7 | 35 | 3.45 | 14.94 | 1650-1750 | ≥1560 | 19.5-24.5 | 5.1-5.9 | A02 B02 | For machining super-hard grey cast steel, hardening steel, chilled iron, high silicon-aluminum alloy,high wear-resistant plastic, hard paper plate and ceramics. |
| 6 | 2 | 92 | 35 | 2.85 | 14.95 | 1350-1500 | ≥1600 | 21.5-26.5 | 4.9-5.9 | A02 B02 | ||
| K10-K15 | 6 | 0.4 | 93.6 | 35 | 3.45 | 14.91 | 1665-1835 | ≥123 | 19.5-24.5 | 5.2-6.2 | A02 B02 | For machining cast iron with hardness higher than 200HB, short-chip forgeable cast iron, silicon-aluminum alloy, copper alloy, plastic, glass, ceramics and stones. |
| K20 | 6 | 0.4 | 93.6 | 35 | 3.25 | 14.9 | 1600-1700 | ≥1670 | 16.3-19.2 | 5.2-6.0 | A02 B02 | For machining grey cast iron with hardness lower than 200HB, non-ferrous metal, copper, brass and aluminum |
| 7.8 | 1 | 91.2 | 35 | 3.35 | 14.61 | ≥1400 | ≥2000 | 15.0-18.0 | 6.6-7.8 | A02 B02 | ||
| K30 | 6 | 2 | 92 | 35 | 3.45 | 14.8 | 1450-1600 | ≥1320 | 13.5-15.1 | 5.3-6.0 | A02 B00 | For machining low-hardness grey cast iron, low-strength steel and compact wood. |
Our advantages:
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.
The internal stress can be removed through the cryogenic process to improve the microstructure.
The internal stress can be removed through the vibration process to improve the overall performance.
The service can be improved through the heat treatment process.
Why choose us for carbide wear parts:
