Product Details:
|
| Material: | Tungsten Carbide | ISO Grade: | G20 |
|---|---|---|---|
| Application: | Carbide Mould | Standard: | DIN, GB, ISO, JIS, BA, ANSI |
| Hardness: | HV30 1000 | TRS: | 2200 |
| Density: | 14 | ||
| High Light: | Die Processing Tungsten Carbide Mould,180mm Tungsten Carbide Mould |
||

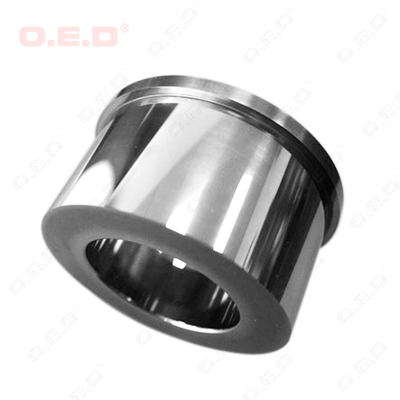

Carbide Die Processing Tungsten Steel Inner Diameter Concave Die Precision Mold Parts
we specialized in producing Punches,Ejector Pins and sleeves,Die Buttons,Bushes,Ejector Punches,Drill Rods, Ball Cages,Springs,Block Sets of many different standards
Tungsten carbide mold processing precision custom-made tungsten steel inner diameter die, suitable for use in Matsushita Electric BM-B-2 equipment engineering.
Outer diameter 250mm
Inner diameter 180mm
Inner hole polished Ra 0.05
Concentricity 0.05
Precision mould parts:
Grinding parts with precision less than 0.002
Precise EDM parts with precision less than 0.005
Facilities advantage:
EDM Cutter 15 sets
Grinder 15 sets
Wire-cuting 3 sets
CNC 2 Sets
Milling machine 1 set
OED uses high-quality sintered blanks, which can make the products have high hardness and wear resistance, good toughness, high inner hole smoothness, good surface smoothness of stretched products, low friction coefficient, long life, etc., and are widely used in copper, iron, aluminum, stainless steel, etc. Stretch forming of metal products.
Recommended carbide grades:
| ISO Grade | Carbide grade | WC% | Co % | Hardness(HRA±0.5) | Density g/cm3 |
TRS N/mm2 |
Recommended Application |
| K01 | YG3 | 97 | 3 | 91.5 | 15.2 | 1500 | Suitable for steel wire, non-ferrous metal and alloy wire rod or material |
| K01 | YG3X | 97 | 3 | 92.5 | 15.2 | 1450 | High hardness, good wear resistance, low impact and low impact. Suitable for fine steel wire, non-ferrous metal and alloy wire . |
| K10 | YG6 | 94 | 6 | 90.5 | 14.95 | 2600 | For rough machining of non-ferrous metals. |
| K15 | YG6X | 94 | 6 | 91.5 | 14.85 | 2700 | Suitable for processing of non ferrous, metal finishing and woodworking cutting tooling |
| K10 | YG6A | 94 | 6 | 92 | 14.95 | 2450 | For wire drawing die and woodworking cutting tools |
| K30 | YG8 | 92 | 8 | 89.5 | 14.7 | 2700 | For wire drawing die,drawing die |
| K40 | YG11 | 89 | 11 | 88.5 | 14.45 | 2900 | For wearing parts and mining tools |
| G30 | YG15 | 86.5 | 13.5 | 87 | 14.0 | 2280 | Strength is the best, the wear resistance is low, it is suitable for impact rotary rock drill and heavy rock drill, rock hard rock layer. |
