Product Details:
|
| Material: | Tungsten Carbide | ISO Grade: | G20 |
|---|---|---|---|
| Application: | Carbide Mould | Standard: | DIN, GB, ISO, JIS, BA, ANSI |
| Hardness: | HV30 1000 | TRS: | 2200 |
| Density: | 14 | ||
| High Light: | G20 Carbide Punch And Die,OED Carbide Punch And Die |
||

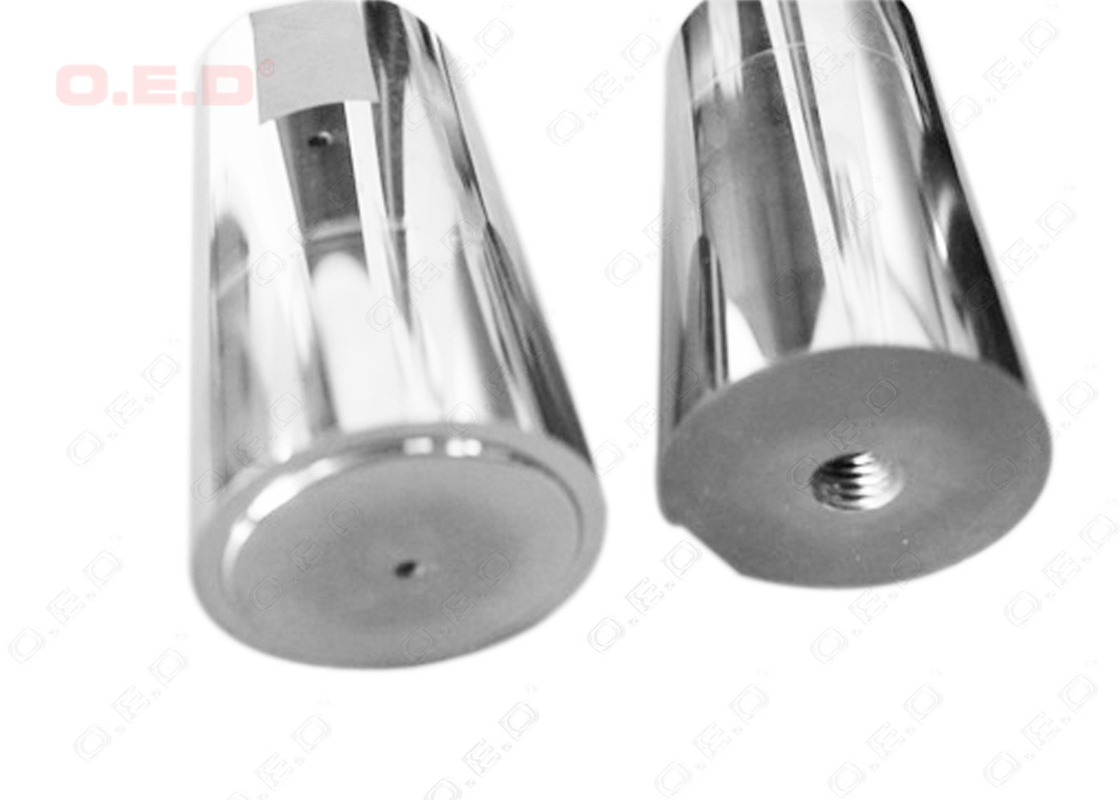

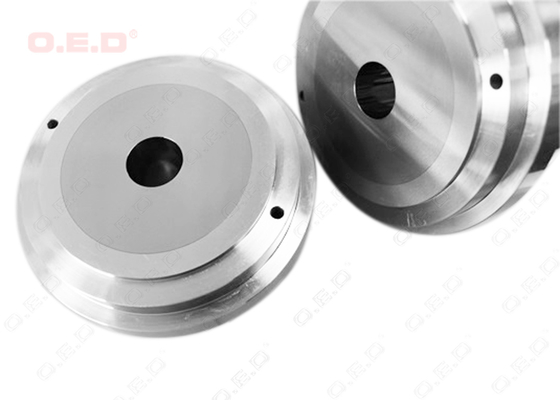

Carbide Punch And Die Punch And Die For Press Mold Ejector Precision Mold Parts
we specialized in producing Punches,Ejector Pins and sleeves,Die Buttons,Bushes,Ejector Punches,Drill Rods, Ball Cages,Springs,Block Sets of many different standards
Cemented carbide molds are used as mechanical equipment parts with high requirements for industrial production.
They are commonly used as cemented carbide stamping molds, cemented carbide progressive molds, cemented carbide pressing molds, cemented carbide shrink tube molds, and cemented carbide wire drawing molds. , Carbide drawing molds and other purposes.
High wear resistance is the basic requirement of mold products, especially for the cooperative operation of progressive molds, combined molds, and multi-station molds.
The good performance of cemented carbide mold materials is a high-quality performance of long-lasting operation. As a tool material, cemented carbide has become a good choice for mold products due to its high hardness, high strength, and high wear resistance.
Precision mould parts:
Grinding parts with precision less than 0.002
Precise EDM parts with precision less than 0.005
Facilities advantage:
EDM Cutter 15 sets
Grinder 15 sets
Wire-cuting 3 sets
CNC 2 Sets
Milling machine 1 set
Recommended carbide grades:
| ISO Grade | Carbide grade | WC% | Co % | Hardness(HRA±0.5) | Density g/cm3 |
TRS N/mm2 |
Recommended Application |
| K01 | YG3 | 97 | 3 | 91.5 | 15.2 | 1500 | Suitable for steel wire, non-ferrous metal and alloy wire rod or material |
| K01 | YG3X | 97 | 3 | 92.5 | 15.2 | 1450 | High hardness, good wear resistance, low impact and low impact. Suitable for fine steel wire, non-ferrous metal and alloy wire . |
| K10 | YG6 | 94 | 6 | 90.5 | 14.95 | 2600 | For rough machining of non-ferrous metals. |
| K15 | YG6X | 94 | 6 | 91.5 | 14.85 | 2700 | Suitable for processing of non ferrous, metal finishing and woodworking cutting tooling |
| K10 | YG6A | 94 | 6 | 92 | 14.95 | 2450 | For wire drawing die and woodworking cutting tools |
| K30 | YG8 | 92 | 8 | 89.5 | 14.7 | 2700 | For wire drawing die,drawing die |
| K40 | YG11 | 89 | 11 | 88.5 | 14.45 | 2900 | For wearing parts and mining tools |
| G30 | YG15 | 86.5 | 13.5 | 87 | 14.0 | 2280 | Strength is the best, the wear resistance is low, it is suitable for impact rotary rock drill and heavy rock drill, rock hard rock layer. |
