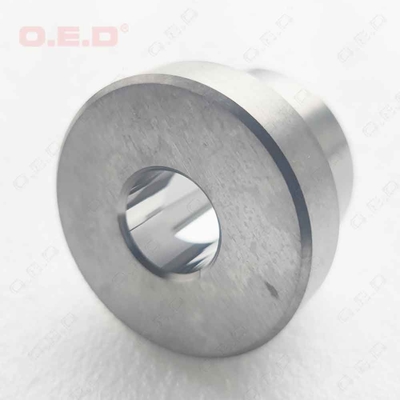

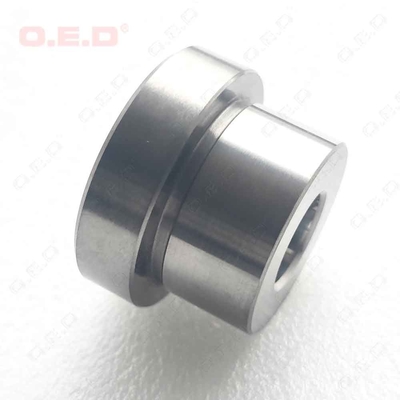

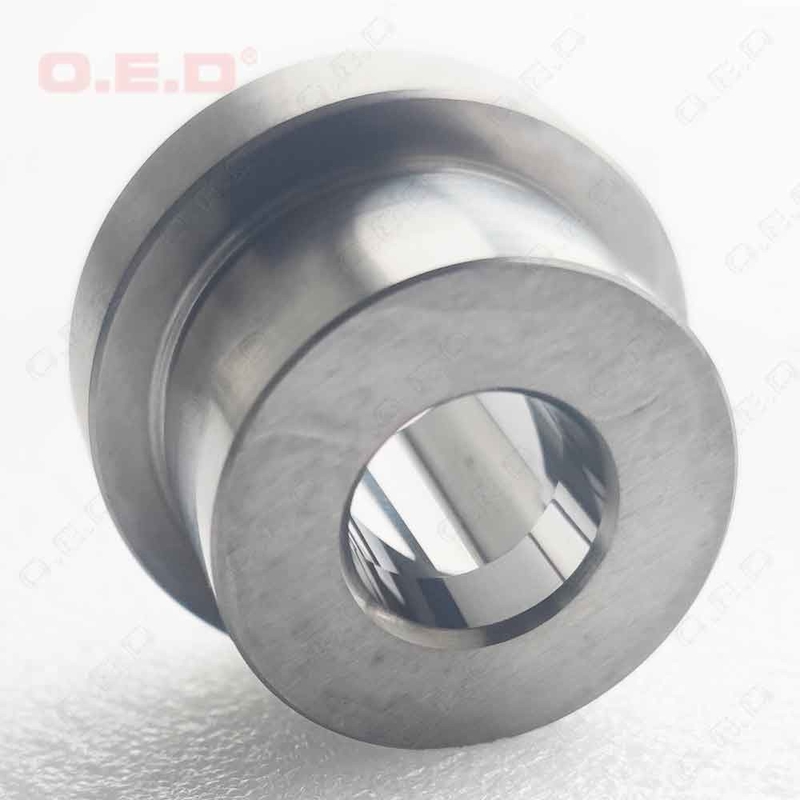

G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts

G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts
G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts

Large Image :  G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts

Product Details:
Place of Origin: China
Brand Name: OED or OEM
Certification: ISO 9001: 2015
Model Number: Puching seat
Payment & Shipping Terms:
Minimum Order Quantity: Small qty of amples are available.
Price: Raw sintered between 38-68usd/kg, special tools can be negotiable
Packaging Details: plastic box/box + Cartons
Delivery Time: Standard products in one week, special tools in 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000kgs per month

G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts

Description
Material: Tungsten Carbide ISO Grade: G30
Application: Carbide Mould Parts Hardness: HRA 88
TRS: 3200 Density: 14.1
Outer Diameter: 45 Inner Diameter: 16
Roughness: Ra 0.1
High Light:

Tungsten Carbide Polished Mold Parts​

,

Carbide Mould parts G30

G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts​



Outer diameter 45mm +0.05mm

Innder diameter 16mm -0.005mm

Height 30mm +0.2mm

The roughness of inner diameter Ra 0.1



Polished inner diameter for precision mold parts.

G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts 0G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts 1



we specialized in producing Punches, Ejector Pins and sleeves, Die Buttons, Bushes, Ejector Punches, Drill Rods, Ball Cages, Springs,Block Sets of many different standards



Cemented carbide molds are used as mechanical equipment parts with high requirements for industrial production.

They are commonly used as cemented carbide stamping molds, cemented carbide progressive molds, cemented carbide pressing molds, cemented carbide shrink tube molds, and cemented carbide wire drawing molds. , Carbide drawing molds and other purposes.



High wear resistance is the basic requirement of mold products, especially for the cooperative operation of progressive molds, combined molds, and multi-station molds.



The good performance of cemented carbide mold materials is a high-quality performance of the long-lasting operation. As a tool material, cemented carbide has become a good choice for mold products due to its high hardness, high strength, and high wear resistance.





G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts 2





Recommended carbide grades:

ISO Grade Carbide grade WC% Co % Hardness(HRA±0.5) Density
g/cm3
TRS
N/mm2
Recommended Application
K01 YG3 97 3 91.5 15.2 1500 Suitable for steel wire, non-ferrous metal and alloy wire rod or material
K01 YG3X 97 3 92.5 15.2 1450 High hardness, good wear resistance, low impact and low impact. Suitable for fine steel wire, non-ferrous metal and alloy wire .
K10 YG6 94 6 90.5 14.95 2600 For rough machining of non-ferrous metals.
K15 YG6X 94 6 91.5 14.85 2700 Suitable for processing of non ferrous, metal finishing and woodworking cutting tooling
K10 YG6A 94 6 92 14.95 2450 For wire drawing die and woodworking cutting tools
K30 YG8 92 8 89.5 14.7 2700 For wire drawing die,drawing die
K40 YG11 89 11 88.5 14.45 2900 For wearing parts and mining tools
G30 YG15 86.5 13.5 87 14.0 2280 Strength is the best, the wear resistance is low, it is suitable for impact rotary rock drill and heavy rock drill, rock hard rock layer.



G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts 3





G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts 4





G30 Tungsten Carbide Up Punching Molds Seat Polished Mold Parts 5
