Product Details:
|
| Type: | Carbide Mold Parts | Application: | Mold Punching Pin |
|---|---|---|---|
| Material: | Tungsten Carbide | ISO Grade: | K40 |
| Hardness: | HRA 92 | TRS: | 3800 |
| Diameter: | 10 | Length: | 150 |
| Concentricity: | 0.005 | Roughness: | Ra 0.2 |
| High Light: | Ra 0.2 Tungsten Carbide Pins,10mm Tungsten Carbide Pins,150mm tungsten carbide pin |
||

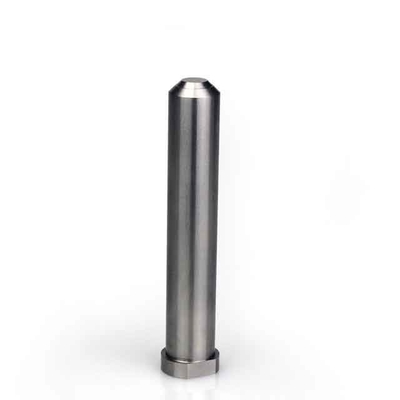

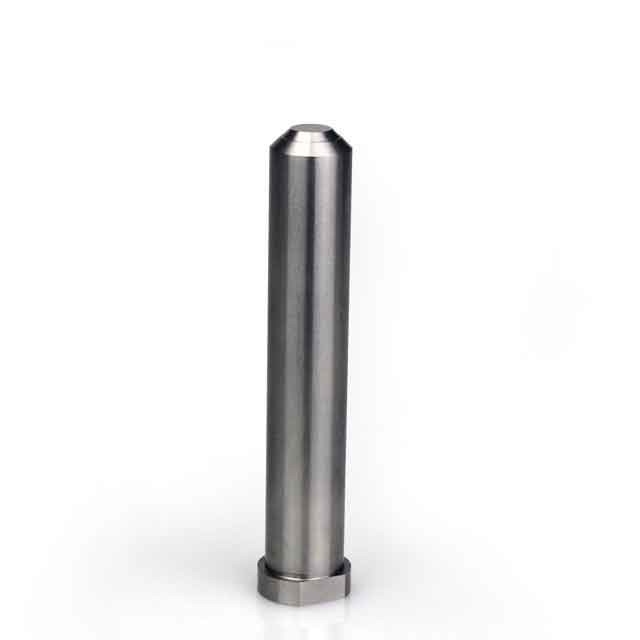

Carbide Precision Punching Pin Carbide Mold Parts Tungsten Part Components
Diameter Dia 10mm
Length: 150mm
Carbide punching pins, customized sizes are available.
| Co | Density | Hardness (HRA) | TRS |
| (Wt %) | (g/cm3) | (≥N/mm²) | |
| 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
