Product Details:
|
| Material: | Tungsten Carbide | ISO Grade: | OK10F |
|---|---|---|---|
| Application: | Carbide Saw Blades | Hardness: | HRA 92 |
| TRS: | 2000 | Density: | 14.90 |
| Grain Size: | Fine | Thickness: | 0.8 |
| Teeth: | 100 | ||
| High Light: | K10F Solid Carbide Saw Blades,HRA 92 Carbide Saw Blades,K10F 100 Teeth Circular Blades |
||

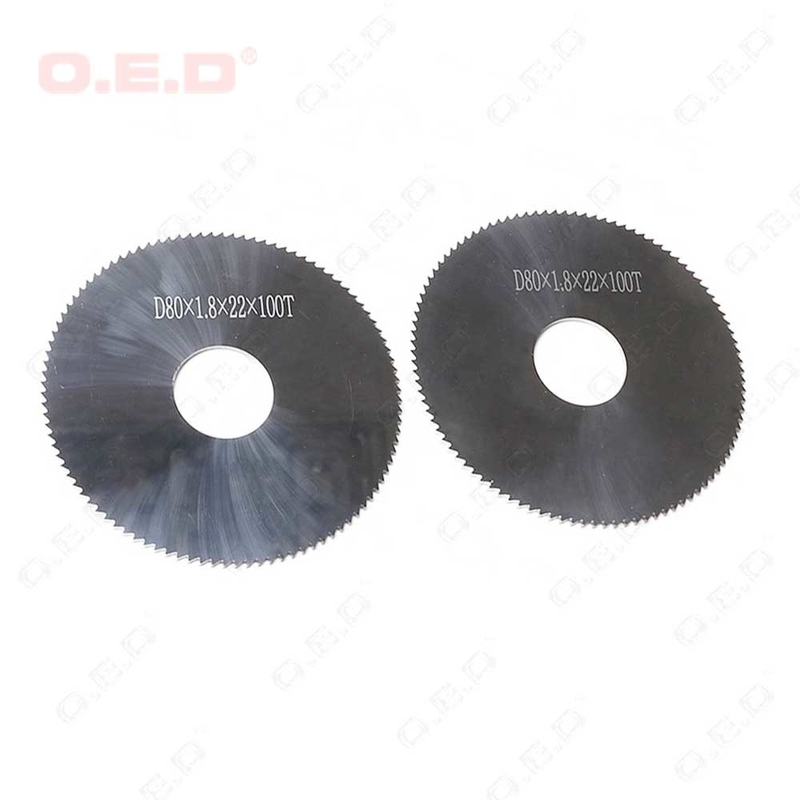

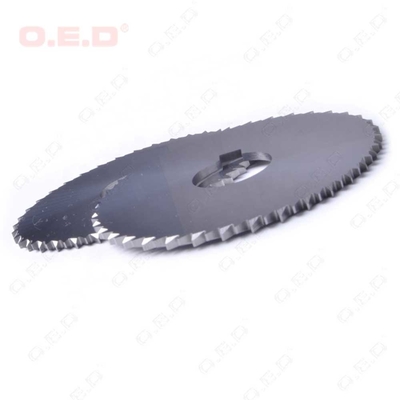

K10F solid carbide saw blades for metal cutting 100 teeth circular blades
Material:
Grade: OK10F
Cobalt: 6%
Density: 14.9
Hardness HRA 92
T.R.S 2000
Grain size: Fine
OD 80mm
ID 22H7
Thickness 0.8mm ±.01
Polished surface Ra 0.2
100 teeth solid carbide saw blades are suited for cutting metals, and plastics.
Standard circular saw blades can be delivered in 5 days and specially customized saw blades can be delivered in 15 days.
Carbide Grade OK10F
| Wear part grades | Grade | ISO Grade | Co | Density |
Hardness HRA |
T.R.S. | Grain size |
| OK01UF | K01-K05 | 3.00 | 15.10 | 93.50 | 2000 | Ultra Fine | |
| OK10F | K10-K20 | 6.00 | 14.90 | 92.00 | 2000 | Middle/Fine | |
| OK30 | K30 | 8.00 | 14.80 | 91.50 | 2200 | Fine | |
| OK40F | K40 | 10.00 | 14.45 | 91.90 | 3400 | Middle/Fine | |
| OK50F | K50 | 12.00 | 14.25 | 90.00 | 3500 | Fine | |
| OG10 | G10 | 8.00 | 14.70 | 91.00 | 2100 | Middle | |
| OG20 | G20 | 11.00 | 14.40 | 89.00 | 2400 | Middle | |
| OG30 | G30 | 15.00 | 14.20 | 86.70 | 2800 | Middle | |
| OG40 | G40 | 20.00 | 13.65 | 85.00 | 3000 | Middle | |
| OG50 | G50 | 25.00 | 13.20 | 84.20 | 3200 | Middle |
we specialized in producing Punches, Ejector Pins and sleeves, Die Buttons, Bushes, Ejector Punches, Drill Rods, Ball Cages, Springs,Block Sets of many different standards
