Product Details:
|
| Type: | Circular Blade | Application: | For Cutting Paper, Rubber, Plastic, Steel, Soft Metal, Wood, MDF |
|---|---|---|---|
| Material: | K40UF | ISO Grade: | K30 |
| Hardness: | 91.9-92HRA | Outer Diameter: | 15 Mm To 305 Mm |
| Inner Diameter: | 4 Mm To 230 Mm | Thickness: | 0.3 Mm To 5.5 Mm |
| Cutting Angle: | 7 Degree To 20 Degree | Surface Roughness: | Polish Finished |
| Parallelism: | 0.02 | ||
| High Light: | K40UF Carbide Slitter Blades,Carbide Slitter Blades Parallelism 0.005 |
||

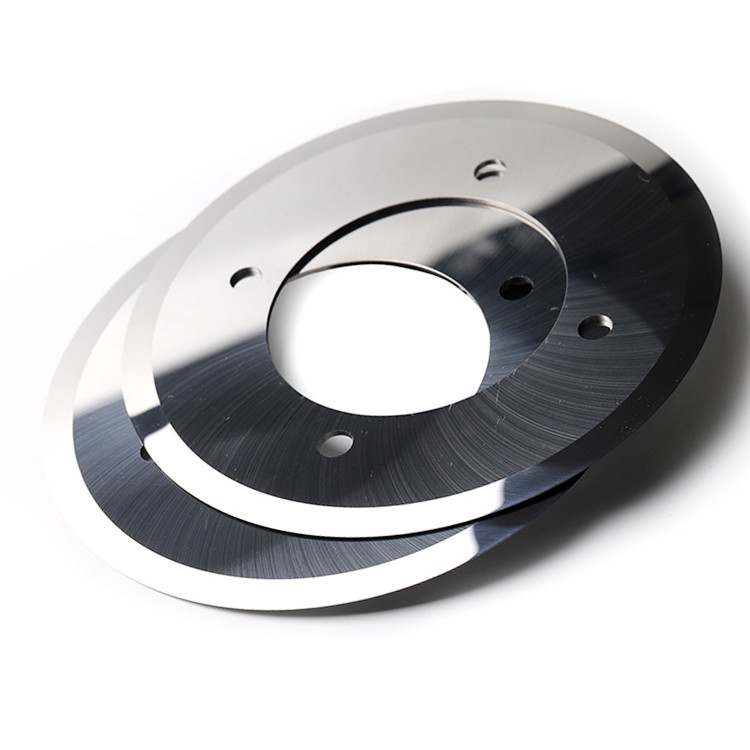

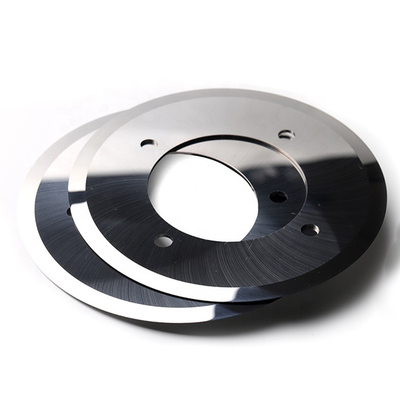

K40UF Carbide Slitter Blades Parallelism 0.005 For Cutting Paper Metal
Dimension of our regular circular carbide knives:
Outer diameter from 15 mm to 305 mm;
Inner diameter from 4 mm to 230 mm
Thickness from 0.3 mm to 5.5 mm
Hardness: HRA 91.9
Finished polished
Circular carbide knives is good for cutting paper industry, tobacco, plastic, Plywood, wood, PVC, stainless steel, iron, rubber, plywood, pcb and so on.
| OD (mm) | ID (mm) | T (mm) | Tolerance |
| 200 | 122 | 1.2 | ISO 2768-f |
| 210 | 110 | 1.5 | ISO 2768-f |
| 210 | 122 | 1.3 | ISO 2768-f |
| 230 | 110 | 1.3 | ISO 2768-f |
| 230 | 130 | 1.5 | ISO 2768-f |
| 250 | 105 | 1.5 | ISO 2768-f |
| 250 | 140 | 1.5 | ISO 2768-f |
| 260 | 110 | 1.5 | ISO 2768-f |
| 260 | 114 | 1.6 | ISO 2768-f |
| 260 | 140 | 1.5 | ISO 2768-f |
| 260 | 150 | 1.5 | ISO 2768-f |
| 260 | 170 | 1.5 | ISO 2768-f |
| 270 | 170 | 1.6 | ISO 2768-f |
| 280 | 160 | 1.6 | ISO 2768-f |
| 290 | 110 | 1.5 | ISO 2768-f |
| 290 | 160 | 1.5 | ISO 2768-f |
| 300 | 165 | 3 | ISO 2768-f |
| 305 | 65 | 1.5 | ISO 2768-f |
Customized products is available, please just send us your drawing, then we'll reply you the costs.
Cutting edge like double edge, single edge, saw blade with teeth are all available. The reliable wear resistant performance can have a longer working life than HSS material. We have been focusing on circular carbide knives over 20 years, so don't hesitate to contact us if you are interested in it. We'll reply you in 12 hours.
Carbide Grade Recommendation:
| ISO Code | Density g/cm3 |
Hardness HRA |
TRS N/MM2 |
Grain size μm |
Recommend Application |
| K20 | 14.6 | 89.7-90.2 | 2800 | 1.6 | For asbestos material |
| K30 | 14.3 | 89.5-90.0 | 3300 | 1.6 | For plastic and paper |
| K05 | 14.9 | 92.8-93.2 | 2500 | 0.8 | For carboard optical fiber, leather |
| K10 | 14.8 | 92.0-92.5 | 2500 | 0.8 | For compound material |
| K30 | 14.4 | 91.4-91.8 | 3200 | 1 | For corrugated paper, chemical fiber, plastic, leather |
| K40 | 14.1 | 92.4-93.0 | 3500 | 0.8 | For corrugated paper, carboard, optical fiber, leather |
Advantages of our Carbide Circular Blade:
Sharp cutting edge
Perfect performance of wear-resistent to get a longer life
Good for cutting PCB, plastic, PVC, wood and metalworking.
Safty packing to ensure no damange during transport.
Circular knife with teeth or without, blank or finish grinding.
Different caribde grades for different application to ensure the perfect performance.
Welcome to contact us for more details, free samples are available.
