Product Details:
|
| Material: | Tungsten Carbide | Application: | Asbestos Til Corrugated Asbestos Sheeting Cutter |
|---|---|---|---|
| Hardness: | 92 HRA | TRS: | 2800 |
| Density: | 14.5 | ISO Grade: | K10 |
| OD: | 305mm | ID: | 192mm |
| Thickness: | 5mm | Parallelism: | 0.02 |
| Roughness: | Ra 0.4 | Teeth: | None |
| High Light: | K10 Solid Carbide Blades,Asbestos Til Solid Carbide Blades |
||

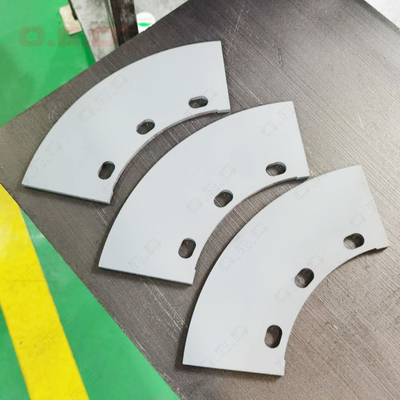

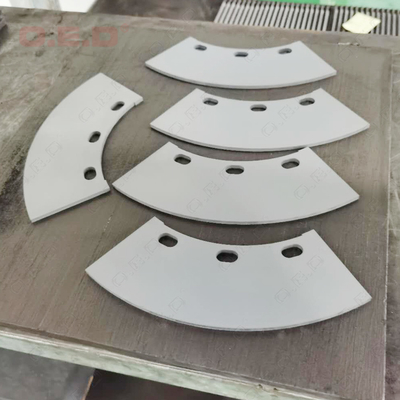

Solid Carbide Segment Cutter Slitter Blades For Asbestos Til Corrugated Asbestos Sheeting Cutter
Precision ground blank or raw sintered blank are avaliable.
Recomented carbide grades for Corrugated Asbestos Sheeting Cutter are as follows:
| ISO Code | Grade | Binder | Grain size | Density g/cm3 |
Hardness HRA |
TRS N/mm2 |
Application |
| K10 | YF06 | 6 | fine | 14.9 | 92 | 2000 | Fine grain size, good wear resistance. Semi-finishing of chilled cast iron, non-ferrous metals, semi-finishing and finishing of hardness steel, alloy steel. |
| K20 | YG8 | 8 | medium | 14.7 | 89.5 | 2500 | High stength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast iron, non-ferrous metals and the alloys as wee as non metallic materials at low cutting speed. |
| K30 | YS2T | 10 | fine | 14.5 | 92 | 2350 | Fine grain size, high resistance high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc. |
