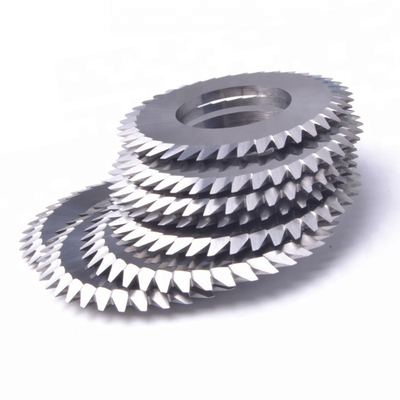

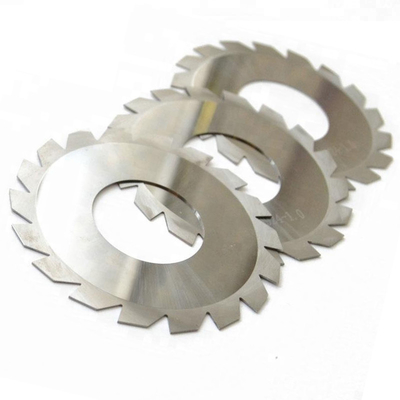

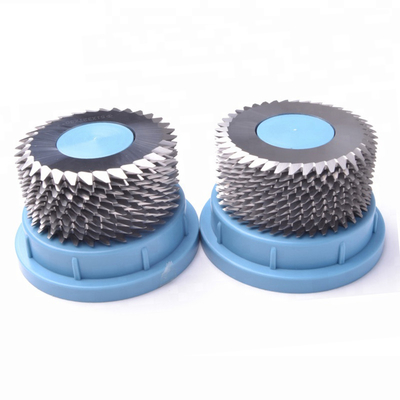

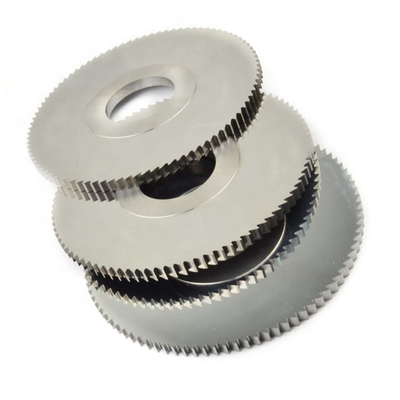

YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron

YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron
YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron

Large Image :  YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron

Product Details:
Place of Origin: China
Brand Name: OED/OEM
Certification: ISO9001:2015
Model Number: Carbide saw blades
Payment & Shipping Terms:
Minimum Order Quantity: Small qty of amples are available.
Price: negotiable
Packaging Details: plastic box/box + Cartons
Delivery Time: Standard products in one week, special tools in 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000kgs per month

YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron

Description
Material: YG8 Applicatin: Saw Blades
ISO Grade: K20 OD: 8mm-110mm
ID: 3mm-32mm T: 0.2mm-2mm
Cobalt: 8% TRS: 2500
Hardness: HRA 89.5
High Light:

Polished Tungsten Carbide Saw Blades

,

0.2mm Tungsten Carbide Saw Blades

,

Machining Cast Iron Carbide Slitter Blades

YF06 Polished Tungsten Carbide Saw Blades 0.2mm With 80Z For Machining Cast Iron



K20 datasheet

Grade YG8



ISO Code Grade Binder Grain size Density
g/cm3
Hardness
HRA
TRS
N/mm2
Application
K20 YG8 8 medium 14.7 89.5 2500 High stength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast iron, non-ferrous metals and the alloys as wee as non metallic materials at low cutting speed.
K30 YS2T 10 fine 14.5 92 2350 Fine grain size, high resistance high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc.



Specification for the saw blades:

Specifications Type of teeth OD ID T Number of teeth(Z)
CSB-O8I3T Z A/B 8 3 0.2-2 20/24/32
CSB-O12I5T Z A/B 12 5 0.2-2 20/24/32/40
CSB-O16I5T Z A/B 16 5 0.2-2 20/24/32/40/48
CSB-O20I5T Z A/B 20 5 0.2-2 24/32/48/64
CSB-O25I8T Z A/B 25 8 0.2-3 24/32/48/64/80
CSB-O32I8T Z A/B 32 8 0.2-3 40/48/64/80
CSB-O40I8T Z A/B 40 8 0.2-3 40/64/80/100
CSB-O40I10T Z A/B 40 10 0.2-4 40/64/80/100
CSB-O50I12.7T Z A/B 50 12.7 0.2-4 40/64/80/100
CSB-O50I13T Z A/B 50 13 0.2-5 40/64/80/100
CSB-O60I12.7T Z A/B 60 12.7 0.2-5 40/64/80/100
CSB-O60I22T Z A/B 60 22 0.2-5 40/64/80/100
CSB-O60I25.4T Z A/B 60 25.4 0.2-2 40/64/80/100
CSB-O70I12.7T Z A/B 70 12.7 0.2-2 40/64/72/90/100
CSB-O70I22T Z A/B 70 22 0.2-2 40/64/72/90/100
CSB-O70I25.4T Z A/B 70 25.4 0.2-2 40/64/72/90/100
CSB-O75I22T Z A/B 75 22 0.2-2 64/72/90/100
CSB-O75I25.4T Z A/B 75 25.4 0.2-3 64/72/90/100
CSB-O80I22T Z A/B 80 22 0.2-3 64/72/100/120
CSB-O80I25.4T Z A/B 80 25.4 0.2-3 64/72/100/120
CSB-O90I22T Z A/B 90 22 0.2-4 72/90/100/120
CSB-O90I25.4T Z A/B 90 25.4 0.2-4 72/90/100/120
CSB-O100I22T Z A/B 100 22 0.2-5 90/100/120/160
CSB-O100I25.4T Z A/B 100 25.4 0.2-5 90/100/120/160
CSB-O100I32T Z A/B 100 32 0.2-5 90/100/120/160
CSB-O110I22T Z A/B 110 22 0.2-5 100/120/140/160
CSB-O110I25.4T Z A/B 110 25.4 0.2-5 100/120/140/160
CSB-O110I32T Z A/B 110 32 0.2-5 100/120/140/160






Regular Carbide Grades:



Wear part grades Grade ISO Grade Co Density Hardness T.R.S. Grain size
OK05UF K05 6.00 14.90 93.20 3000 Ultra Fine
OK10F K10-K20 6.00 14.90 92.00 2000 Middle/Fine
OK30M K30 8.00 14.80 91.50 2200 Fine
OK40F K40 10.00 14.45 91.90 3400 Middle/Fine
OK50M K50 12.00 14.25 90.00 3500 Fine
OG30M G10 8.00 14.70 91.00 2100 Middle
OG60M G20 11.00 14.40 89.00 2400 Middle
OG70M G30 15.00 14.20 86.70 2800 Middle
OG80M G40 20.00 13.65 85.00 3000 Middle
OG90M G50 25.00 13.20 84.20 3200 Middle



Corrosion resistance grades:

Corrosion-resistant grades Grade Ni+Co Density Hardness Hardness T.R.S. Grain size
HRA HV30
ON10 5.50 14.80 90.90 1,480 >1450 Middle
ON20 6.00 14.80 90.80 1,460 >1600 Middle
ON30 7.50 14.65 90.30 1,410 >1800 Middle
ON40 9.00 14.55 89.20 1,310 >2150 Middle
ON50 10.00 14.40 89.00 1,300 >2300 Middle
ON60 11.00 14.20 88.50 1,250 >2450 Middle
ON70 15.00 13.15 84.10 950 >2650 Middle




YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron 0YF06 Polished Tungsten Carbide Saw Blades 0.2mm 80Z For Machining Cast Iron 1
