Product Details:
|
Material: | YF06 | Applicatin: | Saw Blades |
---|---|---|---|
ISO Grade: | K10 | OD: | 60mm |
ID: | 12.7mm | T: | 0.2mm |
Cobalt: | 6% | TRS: | 2000 |
Hardness: | HRA 92 | ||
High Light: | HRA 92 Tungsten Carbide Slitter Blades,Non Ferrous Metals Carbide Slitter Blades,K10 Carbide Slitting Saw Blades |

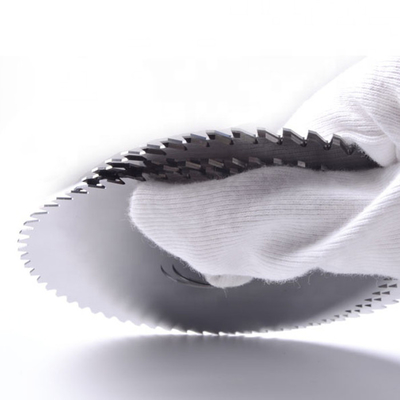

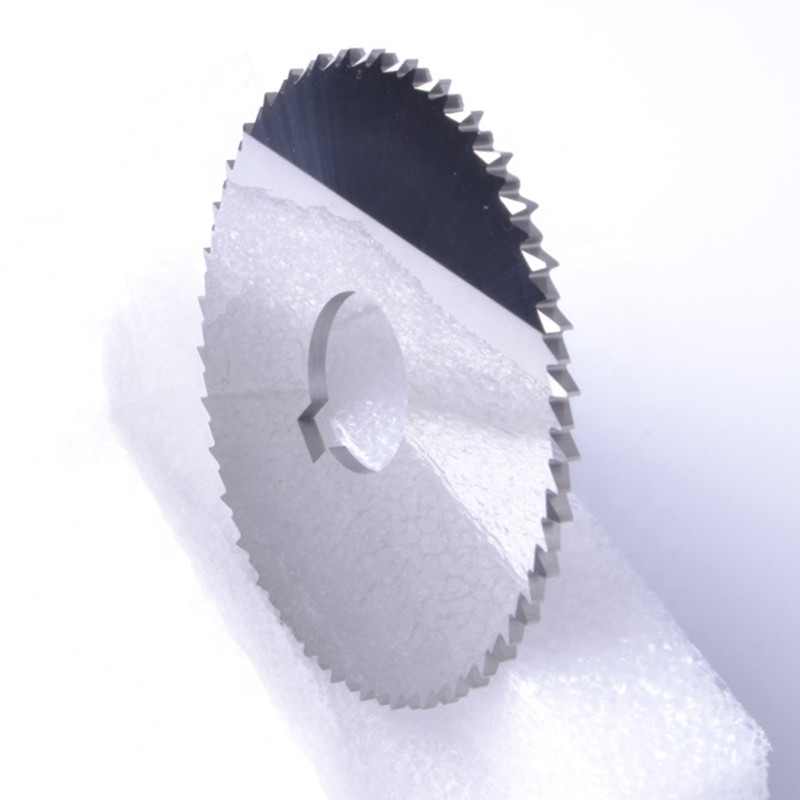

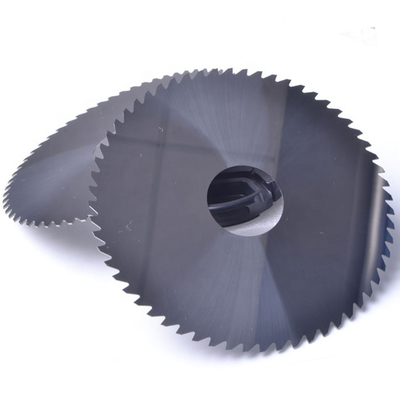

YF06 Polished tungsten carbide saw blades 0.2mm with 80Z for machining cast iron
YF06 Carbide datasheet
ISO Code | Grade | Binder | Grain size | Density g/cm3 |
Hardness HRA |
TRS N/mm2 |
Application |
K10 | YF06 | 6 | fine | 14.9 | 92 | 2000 | Fine-grain size, good wear resistance. Semi-finishing of chilled cast iron, non-ferrous metals, semi-finishing and finishing of hardness steel, alloy steel. |
OD 60mm
ID 12.7mm
Thickness 0.2mm
Teeth 80pcs
Specification for the saw blades:
Specifications | Type of teeth | OD | ID | T | Number of teeth(Z) |
CSB-O8I3T Z | A/B | 8 | 3 | 0.2-2 | 20/24/32 |
CSB-O12I5T Z | A/B | 12 | 5 | 0.2-2 | 20/24/32/40 |
CSB-O16I5T Z | A/B | 16 | 5 | 0.2-2 | 20/24/32/40/48 |
CSB-O20I5T Z | A/B | 20 | 5 | 0.2-2 | 24/32/48/64 |
CSB-O25I8T Z | A/B | 25 | 8 | 0.2-3 | 24/32/48/64/80 |
CSB-O32I8T Z | A/B | 32 | 8 | 0.2-3 | 40/48/64/80 |
CSB-O40I8T Z | A/B | 40 | 8 | 0.2-3 | 40/64/80/100 |
CSB-O40I10T Z | A/B | 40 | 10 | 0.2-4 | 40/64/80/100 |
CSB-O50I12.7T Z | A/B | 50 | 12.7 | 0.2-4 | 40/64/80/100 |
CSB-O50I13T Z | A/B | 50 | 13 | 0.2-5 | 40/64/80/100 |
CSB-O60I12.7T Z | A/B | 60 | 12.7 | 0.2-5 | 40/64/80/100 |
CSB-O60I22T Z | A/B | 60 | 22 | 0.2-5 | 40/64/80/100 |
CSB-O60I25.4T Z | A/B | 60 | 25.4 | 0.2-2 | 40/64/80/100 |
CSB-O70I12.7T Z | A/B | 70 | 12.7 | 0.2-2 | 40/64/72/90/100 |
CSB-O70I22T Z | A/B | 70 | 22 | 0.2-2 | 40/64/72/90/100 |
CSB-O70I25.4T Z | A/B | 70 | 25.4 | 0.2-2 | 40/64/72/90/100 |
CSB-O75I22T Z | A/B | 75 | 22 | 0.2-2 | 64/72/90/100 |
CSB-O75I25.4T Z | A/B | 75 | 25.4 | 0.2-3 | 64/72/90/100 |
CSB-O80I22T Z | A/B | 80 | 22 | 0.2-3 | 64/72/100/120 |
CSB-O80I25.4T Z | A/B | 80 | 25.4 | 0.2-3 | 64/72/100/120 |
CSB-O90I22T Z | A/B | 90 | 22 | 0.2-4 | 72/90/100/120 |
CSB-O90I25.4T Z | A/B | 90 | 25.4 | 0.2-4 | 72/90/100/120 |
CSB-O100I22T Z | A/B | 100 | 22 | 0.2-5 | 90/100/120/160 |
CSB-O100I25.4T Z | A/B | 100 | 25.4 | 0.2-5 | 90/100/120/160 |
CSB-O100I32T Z | A/B | 100 | 32 | 0.2-5 | 90/100/120/160 |
CSB-O110I22T Z | A/B | 110 | 22 | 0.2-5 | 100/120/140/160 |
CSB-O110I25.4T Z | A/B | 110 | 25.4 | 0.2-5 | 100/120/140/160 |
CSB-O110I32T Z | A/B | 110 | 32 | 0.2-5 | 100/120/140/160 |
Regular Carbide Grades:
Wear part grades | Grade | ISO Grade | Co | Density | Hardness | T.R.S. | Grain size |
OK05UF | K05 | 6.00 | 14.90 | 93.20 | 3000 | Ultra Fine | |
OK10F | K10-K20 | 6.00 | 14.90 | 92.00 | 2000 | Middle/Fine | |
OK30M | K30 | 8.00 | 14.80 | 91.50 | 2200 | Fine | |
OK40F | K40 | 10.00 | 14.45 | 91.90 | 3400 | Middle/Fine | |
OK50M | K50 | 12.00 | 14.25 | 90.00 | 3500 | Fine | |
OG30M | G10 | 8.00 | 14.70 | 91.00 | 2100 | Middle | |
OG60M | G20 | 11.00 | 14.40 | 89.00 | 2400 | Middle | |
OG70M | G30 | 15.00 | 14.20 | 86.70 | 2800 | Middle | |
OG80M | G40 | 20.00 | 13.65 | 85.00 | 3000 | Middle | |
OG90M | G50 | 25.00 | 13.20 | 84.20 | 3200 | Middle |
Corrosion resistance grades:
Corrosion-resistant grades | Grade | Ni+Co | Density | Hardness | Hardness | T.R.S. | Grain size |
HRA | HV30 | ||||||
ON10 | 5.50 | 14.80 | 90.90 | 1,480 | >1450 | Middle | |
ON20 | 6.00 | 14.80 | 90.80 | 1,460 | >1600 | Middle | |
ON30 | 7.50 | 14.65 | 90.30 | 1,410 | >1800 | Middle | |
ON40 | 9.00 | 14.55 | 89.20 | 1,310 | >2150 | Middle | |
ON50 | 10.00 | 14.40 | 89.00 | 1,300 | >2300 | Middle | |
ON60 | 11.00 | 14.20 | 88.50 | 1,250 | >2450 | Middle | |
ON70 | 15.00 | 13.15 | 84.10 | 950 | >2650 | Middle |
