G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts

G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts
G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts

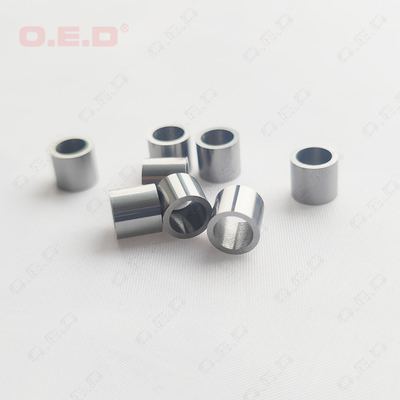

Large Image :  G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts

Product Details:
Place of Origin: China
Brand Name: OED/OEM
Certification: ISO9001:2015
Model Number: Carbide wear bushing
Payment & Shipping Terms:
Minimum Order Quantity: Small qty of amples are available.
Price: negotiable
Packaging Details: plastic box/box + Cartons
Delivery Time: Standard products in one week, special tools in 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000kgs per month

G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts

Description
Material: YG11 Applicatin: Wear Bushings
ISO Grade: G20 OD: 10
ID: 6 Thickness: 13
TRS: 3100 Hardness: HRA 88.5
Density: 14.42
High Light:

G20 Tungsten Carbide Bushings

,

Roundness 0.01mm Tungsten Carbide Bushings

,

Ra 0.2 Tungsten Carbide Wear Parts

G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts



Finished ground with precision tolerances

Outer diameter 10mm

Inner diameter 6mm

Height 13mm

Roundness 0.01mm

Roughness Ra 0.2



Precision bushings as wear parts for machines spare parts. OED can produce the bushings OD from 6mm to 100mm, and the height could be 10 times the inner diameter.



Raw sintered or finished ground are all available. Production time is short as we are really professional in producing these products. Welcome to send your drawings for more details.

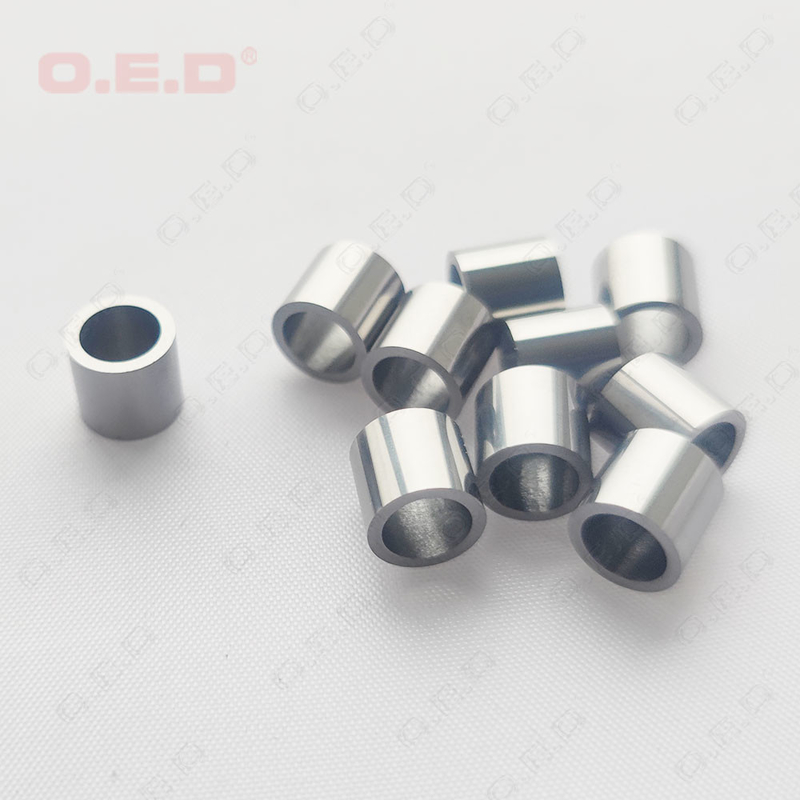

G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts 0




Regular Carbide Grades:



Wear part grades Grade ISO Grade Co Density Hardness T.R.S. Grain size
OK05UF K05 6.00 14.90 93.20 3000 Ultra Fine
OK10F K10-K20 6.00 14.90 92.00 2000 Middle/Fine
OK30M K30 8.00 14.80 91.50 2200 Fine
OK40F K40 10.00 14.45 91.90 3400 Middle/Fine
OK50M K50 12.00 14.25 90.00 3500 Fine
OG30M G10 8.00 14.70 91.00 2100 Middle
OG60M G20 11.00 14.40 89.00 2400 Middle
OG70M G30 15.00 14.20 86.70 2800 Middle
OG80M G40 20.00 13.65 85.00 3000 Middle
OG90M G50 25.00 13.20 84.20 3200 Middle



Corrosion resistance grades:

Corrosion-resistant grades Grade Ni+Co Density Hardness Hardness T.R.S. Grain size
HRA HV30
ON10 5.50 14.80 90.90 1,480 >1450 Middle
ON20 6.00 14.80 90.80 1,460 >1600 Middle
ON30 7.50 14.65 90.30 1,410 >1800 Middle
ON40 9.00 14.55 89.20 1,310 >2150 Middle
ON50 10.00 14.40 89.00 1,300 >2300 Middle
ON60 11.00 14.20 88.50 1,250 >2450 Middle
ON70 15.00 13.15 84.10 950 >2650 Middle

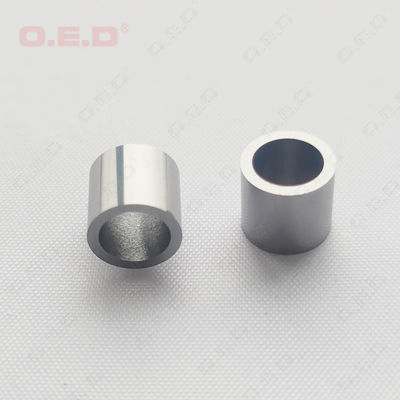

G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts 1G20 Tungsten Carbide Bushings With Precision Ground Roundness 0.01 Wear Parts 2
