R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm

R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm
R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm

Large Image :  R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm

Product Details:
Place of Origin: China
Brand Name: OED/OEM
Certification: ISO9001:2015
Model Number: Carbide wear plate
Payment & Shipping Terms:
Minimum Order Quantity: Small qty of amples are available.
Price: negotiable
Packaging Details: plastic box/box + Cartons
Delivery Time: Standard products in one week, special tools in 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000kgs per month

R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm

Description
Material: 11% Cobalt Applicatin: Wear Plate As Wear Parts
ISO Grade: G20 Length: 197
Width: 30 Thickness: 6
TRS: 3000 Hardness: HRA 88
Density: 14.4
High Light:

YL10.2 Tungsten Carbide Wear Plate

,

197mm Tungsten Carbide Wear Plate

,

M8 Bolt Holes Carbide Wear Plate

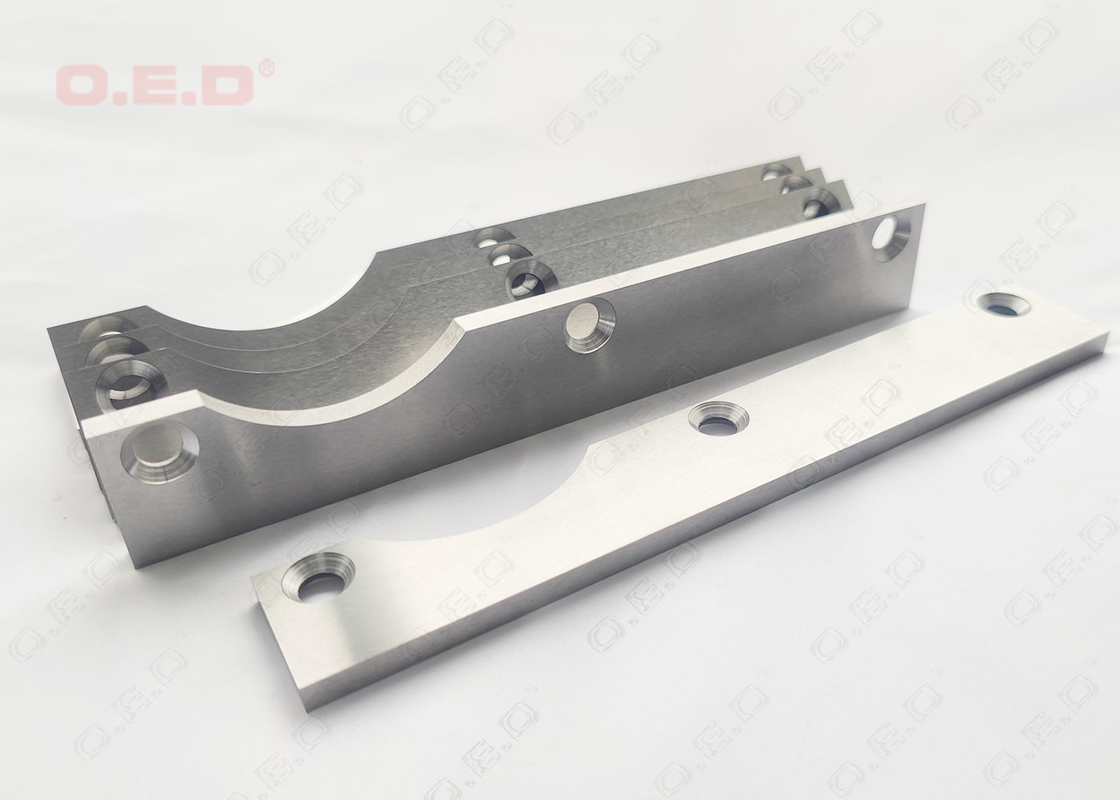

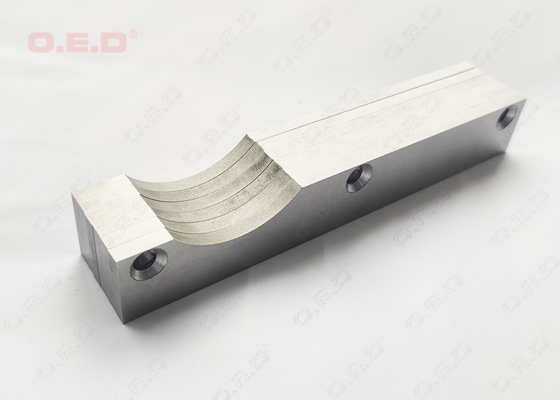

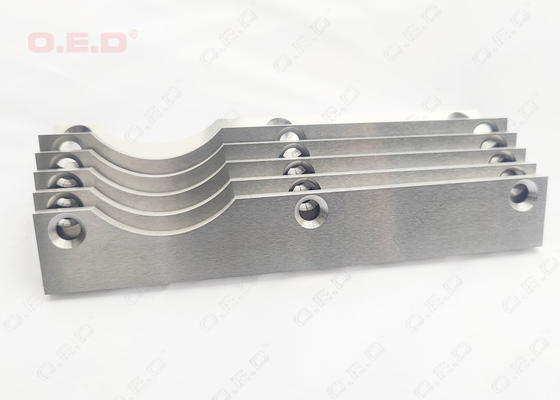

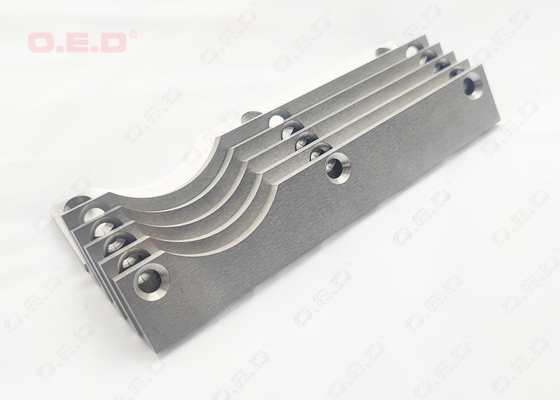

R102 YL10.2 Tungsten carbide wear plate with M8 bolt holes length 197mm



Finished ground tungsten carbide wear plates

Length 197mm

Width 30mm

Thickness 6mm

All ground with a surface roughness Ra 0.8



YL10.2 wear plate with hardness HRA 91.9, T.R.S 3800 N/mm2. Fine-grain size grades, long service life than other materials.

R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm 0R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm 1




Regular Carbide Grades:



Wear part grades Grade ISO Grade Co Density Hardness T.R.S. Grain size
OK05UF K05 6.00 14.90 93.20 3000 Ultra Fine
OK10F K10-K20 6.00 14.90 92.00 2000 Middle/Fine
OK30M K30 8.00 14.80 91.50 2200 Fine
OK40F K40 10.00 14.45 91.90 3400 Middle/Fine
OK50M K50 12.00 14.25 90.00 3500 Fine
OG30M G10 8.00 14.70 91.00 2100 Middle
OG60M G20 11.00 14.40 89.00 2400 Middle
OG70M G30 15.00 14.20 86.70 2800 Middle
OG80M G40 20.00 13.65 85.00 3000 Middle
OG90M G50 25.00 13.20 84.20 3200 Middle



Corrosion resistance grades:

Corrosion-resistant grades Grade Ni+Co Density Hardness Hardness T.R.S. Grain size
HRA HV30
ON10 5.50 14.80 90.90 1,480 >1450 Middle
ON20 6.00 14.80 90.80 1,460 >1600 Middle
ON30 7.50 14.65 90.30 1,410 >1800 Middle
ON40 9.00 14.55 89.20 1,310 >2150 Middle
ON50 10.00 14.40 89.00 1,300 >2300 Middle
ON60 11.00 14.20 88.50 1,250 >2450 Middle
ON70 15.00 13.15 84.10 950 >2650 Middle

R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm 2R102 YL10.2 Tungsten Carbide Wear Plate With M8 Bolt Holes Length 197mm 3
