Product Details:
|
| Material: | Tungsten Carbide | ISO Grade: | K40 |
|---|---|---|---|
| Application: | Detector Rods | Hardness: | HRA 91.9 |
| TRS: | 3800 | Density: | 14.45 |
| Outer Diameter: | 6 | Length: | 40 |
| Roughness: | Ra 0.2 | ||
| High Light: | HRA 91.9 Carbide Detector Rods,Thread M6 Tungsten Carbide Rod,Carbide Detector Rods Length 40mm |
||

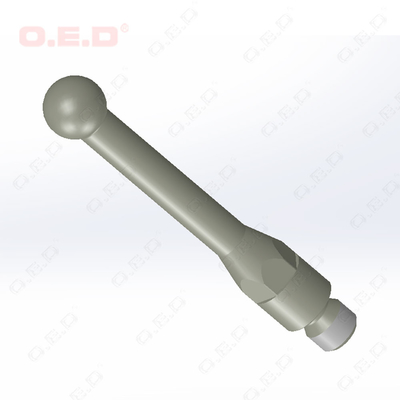

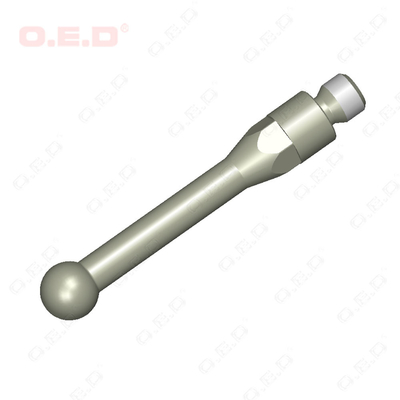

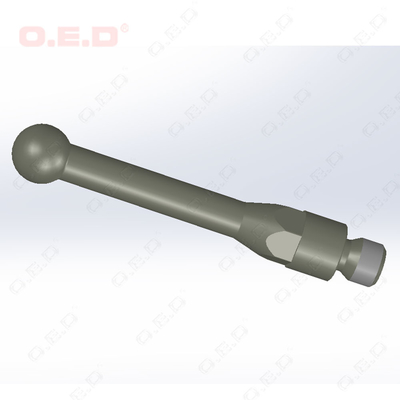

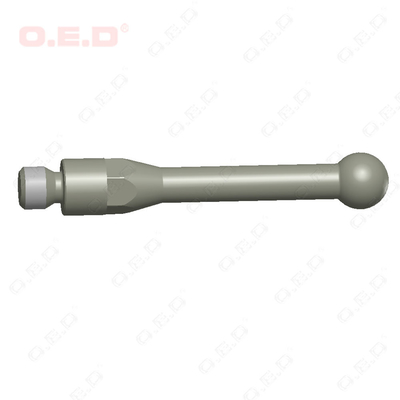

OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9
Polished carbide detector rods with thread M6.
General Dimensions:
Outer diameter 6mm
Length 40mm
Ball size 8mm
Perpendicularity 0.02mm
Circularity 0.02mm
Thread M6
Remove all sharp edges. It is used for testing the equipment detector head.
All surface Ra 0.2
Carbide Grade OK40F
| Wear part grades | Grade | ISO Grade | Co | Density |
Hardness HRA |
T.R.S. | Grain size |
| OK01UF | K01-K05 | 3.00 | 15.10 | 93.50 | 2000 | Ultra Fine | |
| OK10F | K10-K20 | 6.00 | 14.90 | 92.00 | 2000 | Middle/Fine | |
| OK30 | K30 | 8.00 | 14.80 | 91.50 | 2200 | Fine | |
| OK40F | K40 | 10.00 | 14.45 | 91.90 | 3400 | Middle/Fine | |
| OK50F | K50 | 12.00 | 14.25 | 90.00 | 3500 | Fine | |
| OG10 | G10 | 8.00 | 14.70 | 91.00 | 2100 | Middle | |
| OG20 | G20 | 11.00 | 14.40 | 89.00 | 2400 | Middle | |
| OG30 | G30 | 15.00 | 14.20 | 86.70 | 2800 | Middle | |
| OG40 | G40 | 20.00 | 13.65 | 85.00 | 3000 | Middle | |
| OG50 | G50 | 25.00 | 13.20 | 84.20 | 3200 | Middle |
we specialized in producing Punches, Ejector Pins and sleeves, Die Buttons, Bushes, Ejector Punches, Drill Rods, Ball Cages, Springs,Block Sets of many different standards
