Product Details:
|
Material: | Tungsten Carbide | ISO Grade: | G20 |
---|---|---|---|
Application: | Scissor Wear Bushing | Hardness: | HRA 87.5 |
TRS: | 2400 | Density: | 14.4 |
Outer Diameter: | 13 | Inner Diameter: | 5.5 |
Roughness: | Ra 0.8 | ||
High Light: | HRA 89 T.C. Tungsten Carbide Bushings,Ra 0.8 Tungsten Carbide Bushings,6.7mm Thickness Tungsten Carbide Bushings |

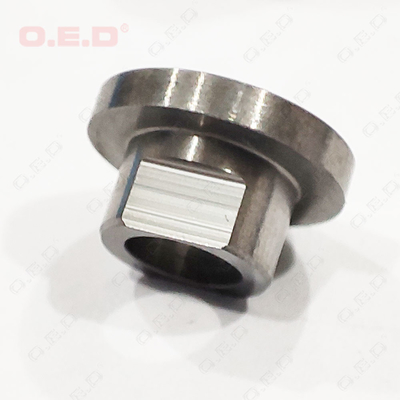

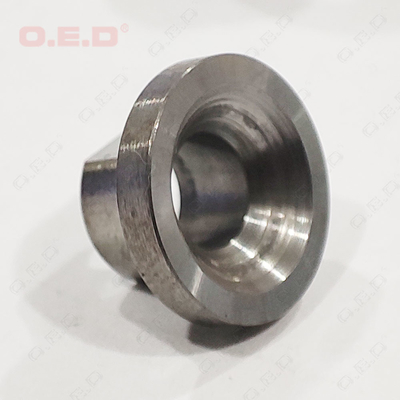

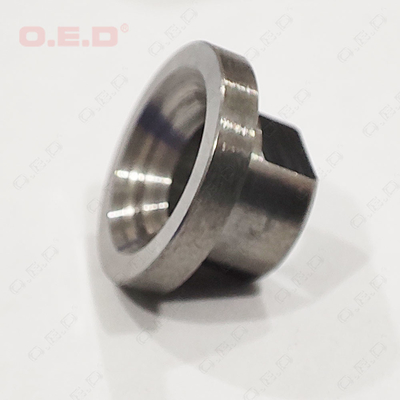

OG20 Tungsten Carbide Bushings For Scissors Wear Parts HRA 89 T.C. Bush Ground
Good wear-resistance performance T.C bush as scissors part.
Item No. 690
Outer diameter 13mm
Inner diameter 5mm
Thickness 6.7mm
All surface Ra 0.8
Carbide Grade OG20
Chemical Component (Wt/Wt %) | ||
Co | 11 | |
WC | 89 | |
Other | ||
Physical Performance | ||
Density(g/cm3) | ISO3369 | 14.45±0.05 |
Hardness HV30 | ISO3878 | 1150±50 (HRA 87.5±0.3) |
4πσ(μTm3/kg) | ||
HC(KA/m) | ISO3326 | 10.4±2.5 |
*TRS(N/mm2) | ISO3327 | >2400 |
Compressive strength N/mm² | 4200 | |
Micro Structure | ||
Micro porosity | ISO4505 | |
A (<10μm) | ≤02 | |
B (10-25μm) | 00 | |
C | 00 | |
Grain size (micron) | ISO 4499 | 1.6μm |
η | ISO 4499 | E00 |
metallography 1500X | ||
we specialized in producing Punches, Ejector Pins and sleeves, Die Buttons, Bushes, Ejector Punches, Drill Rods, Ball Cages, Springs,Block Sets of many different standards
Recommended carbide grades:
ISO Grade | Carbide grade | WC% | Co % | Hardness(HRA±0.5) | Density g/cm3 | TRS N/mm2 | Recommended Application |
K01 | YG3 | 97 | 3 | 91.5 | 15.2 | 1500 | Suitable for steel wire, non-ferrous metal and alloy wire rod or material |
K01 | YG3X | 97 | 3 | 92.5 | 15.2 | 1450 | High hardness, good wear resistance, low impact, and low impact. Suitable for fine steel wire, non-ferrous metal, and alloy wire. |
K10 | YG6 | 94 | 6 | 90.5 | 14.95 | 2600 | For rough machining of non-ferrous metals. |
K15 | YG6X | 94 | 6 | 91.5 | 14.85 | 2700 | Suitable for processing of non-ferrous, metal finishing, and woodworking cutting tooling |
K10 | YG6A | 94 | 6 | 92 | 14.95 | 2450 | For wire drawing die and woodworking cutting tools |
K30 | YG8 | 92 | 8 | 89.5 | 14.7 | 2700 | For wire drawing die, drawing die |
K40 | YG11 | 89 | 11 | 88.5 | 14.45 | 2900 | For wearing parts and mining tools |
G30 | YG15 | 86.5 | 13.5 | 87 | 14.0 | 2280 | Strength is the best, the wear resistance is low, it is suitable for impact rotary rock drill and heavy rock drill, rock hard rock layer. |
