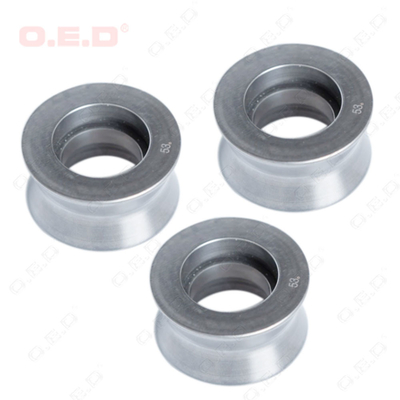

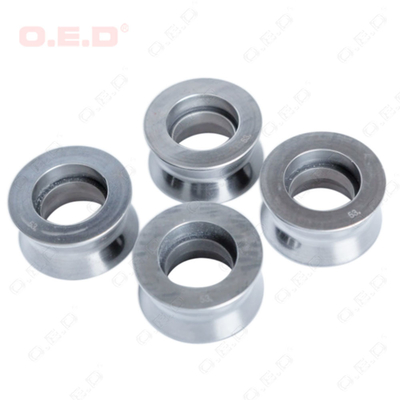

Cermet Carbide Roller Corrosion Resistance Tic-Fe Roller For Steel Wires

Cermet Carbide Roller Corrosion Resistance Rollers Tic-Fe Roller For Steel Wires​

OD 56mm

ID 30mm

Height 40mm

Parallelism 0.02

Roughness Ra 0.8

Run-out 0.05

Application: for the steel wire rollers.

Used in steel rollers, it has high requirements for temperature and oxidation resistance. In an extremely high-temperature environment must work continuously, and its weight is much lighter than cemented carbide, which can effectively reduce the load of the bearing.

Material choices:

Tungsten carbide, general YG8

Tic-Fe material, which is lighter than tungsten carbide with good wear resistance.

Cermet, which has good performance in the high-temperature working environment.

Contact us for more details if you have any questions about the products or materials.

Our advantages:

• CIP forming.

CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.

• Cryogenic process

The internal stress can be removed through the cryogenic process to improve the microstructure.

• Vibration process

The internal stress can be removed through the vibration process to improve the overall performance.

• Heat treatment

The service can be improved through the heat treatment process.





CIP forming.
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.


Why choose us for carbide wear parts:


• Professional production equipment. From spray drying towers, extrusion molding, mold molding, injection molding, CIP, HIP sintering furnaces, flat grinders, heartless grinders, round grinders, EMD cutting, polishing machines, etc. OED can provide reliable quality assurance for your products.

  ---



• The strict control of the production processing. From raw materials, sintering, processing, we will strictly test each process, non-conforming products will not enter the subsequent production.

  ---



• Proficient technical team. Senior carbide raw materials engineers: To analyze whether the product meets your application requirements. Senior production managers: To study the most suitable for your product processing methods. Skilled technical inspectors: To test whether the finished product meets your drawing requirements.

  ---



• Reliable service. Not only can we provide pre-sales technical services, but our engineers can also come up with product improvements to provide the most reasonable solution for your product.

  ---



• Low-cost sample development. For trial orders, such as quantity below 10pcs, our engineer team can help customers to find the solution with mold fees. In this way, our customers can try the samples at a minimized cost.

  ---



• Fast delivery. Standard products could be delivered in one week, and the special carbide tools could be finished in 25-45 days after confirming the drawings or 3D model.
