Product Details:
|
| Material: | Tungsten Carbide | ISO GRADE: | G20 |
|---|---|---|---|
| Application: | Carbide Bushing | Type: | Oil/Gas Wear Parts |
| Hardness: | HRA 90.1 | TRS: | 3800 |
| Density: | 14.2 | ||
| High Light: | G20 Tungsten Carbide Wear Parts,OED Tungsten Carbide Wear Parts,Precision Carbide Seal Rings |
||

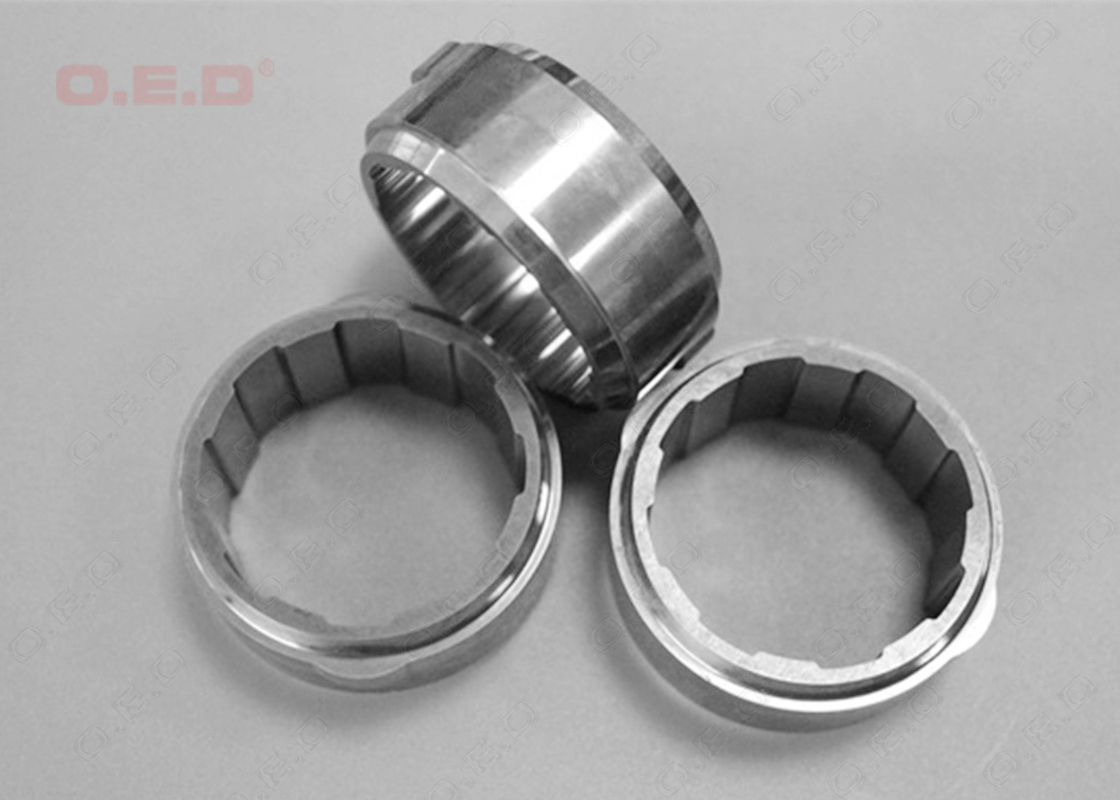

Carbide Precision Seal Ring Tungsten Co-Ni Wear Ring For Oil Gas Parts
OD from 30-110mm
ID from 20-90mm
Wall thickness from 1mm to 10mm
Cobalt Binder Grades
| Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90 | 1520 |
| YG6X | 6 | 14.9 | 91 | 1450 |
| YG6A | 6 | 14.9 | 92 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88 | 1810 |
| YG15 | 15 | 14 | 87 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84 | 2550 |
Nickel Binder Grades
| Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
