Product Details:
|
| Material: | Tungsten Carbide | ISO GRADE: | G20 |
|---|---|---|---|
| Application: | Carbide Spray Nozzle | Type: | Oil/Gas Wear Parts |
| Hardness: | HRA 90.1 | TRS: | 3800 |
| Density: | 14.2 | ||
| High Light: | G20 Tungsten Carbide Nozzles,Tungsten Carbide Nozzles HRA 90.1,Oil Gas carbide spray nozzle |
||

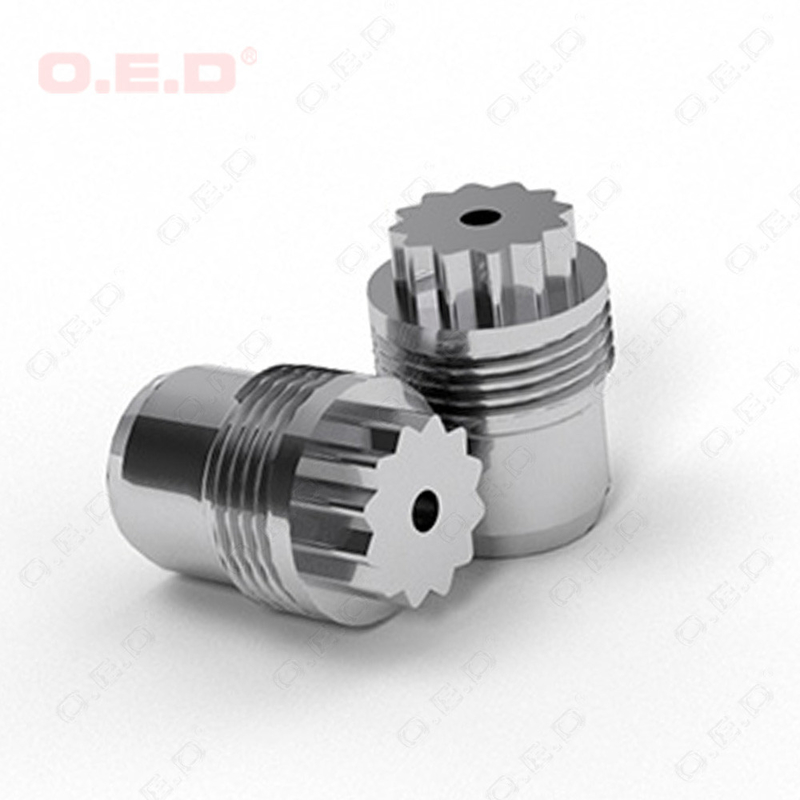

Oil Gas Industries Carbide Spray Nozzles Thread Carbide Wear Parts
Carbide nozzles are mainly used for PDC drills and roller cone drills, and under high pressure, vibration, mortar and other working conditions, drilling fluid is used to flush, cool and lubricate the tip of the bit to clean up borehole debris. Oil and gas exploration.
Cobalt Binder Grades
| Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90 | 1520 |
| YG6X | 6 | 14.9 | 91 | 1450 |
| YG6A | 6 | 14.9 | 92 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88 | 1810 |
| YG15 | 15 | 14 | 87 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84 | 2550 |
Nickel Binder Grades
| Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
