Product Details:
|
Material: | Tungsten Carbide | ISO GRADE: | G20 |
---|---|---|---|
Application: | Carbide Valve Rings | Type: | Oil/Gas Wear Parts |
Hardness: | HRA 90.1 | TRS: | 3800 |
Density: | 14.2 | ||
High Light: | High Hardness Tungsten Carbide Wear Parts,Tungsten Carbide Wear Parts Rings,Oil Field tungsten carbide rings |

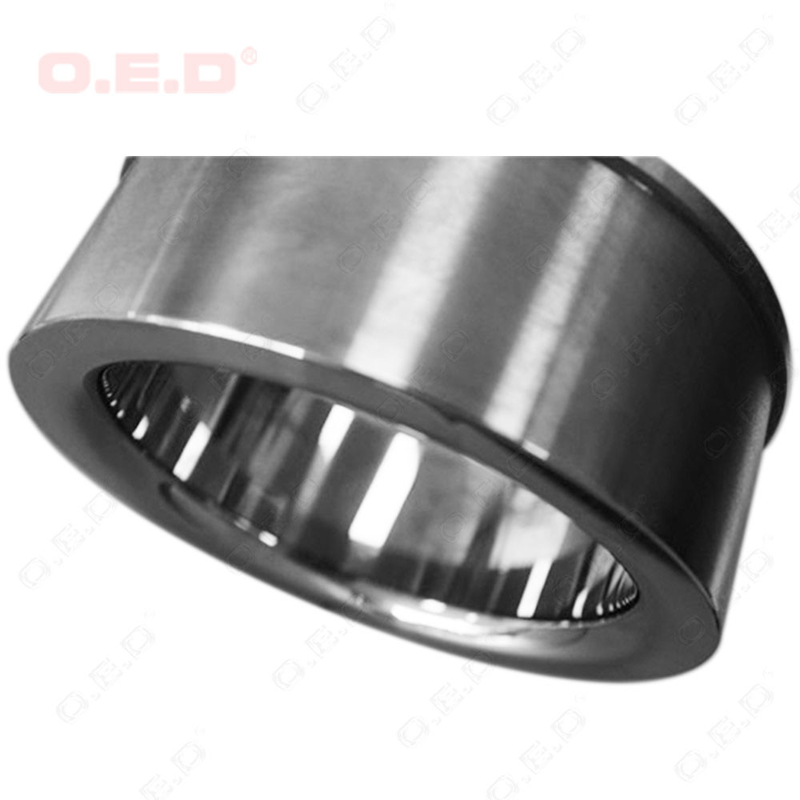

Tungsten Carbide Oil Gas Wear Parts Precision Carbide Rings In Oil Field
OED offer a wide range of custom-sized alloy rings, from blanks to precision sizes.
Carbide has high hardness, high wear resistance and corrosion resistance, compared to silicon carbide wear resistance is higher, so widely used in oil fields, mines, exploration and other high temperature and high pressure environment,
Carbide wear parts for oil and gas industry, wellhead assembly, such as multistage choke manifold, multistage blow down processing, products such as small bits, choke bean, core and seat, plates for throttle valve, explosion proof sleeves, orifice plate, lagging, blasting nozzle, half ball, etc.
Cobalt Binder Grades
Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
YG6 | 6 | 14.8 | 90 | 1520 |
YG6X | 6 | 14.9 | 91 | 1450 |
YG6A | 6 | 14.9 | 92 | 1540 |
YG8 | 8 | 14.7 | 89.5 | 1750 |
YG12 | 12 | 14.2 | 88 | 1810 |
YG15 | 15 | 14 | 87 | 2050 |
YG20 | 20 | 13.5 | 85.5 | 2450 |
YG25 | 25 | 12.1 | 84 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
