Product Details:
|
Material: | Tungsten Carbide | ISO GRADE: | G20 |
---|---|---|---|
Application: | Carbide Valve Cage | Type: | Oil/Gas Wear Parts |
Hardness: | HRA 90.1 | TRS: | 3800 |
Density: | 14.2 | ||
High Light: | Tungsten Carbide Parts Valve Cage,OED Tungsten Carbide Parts |

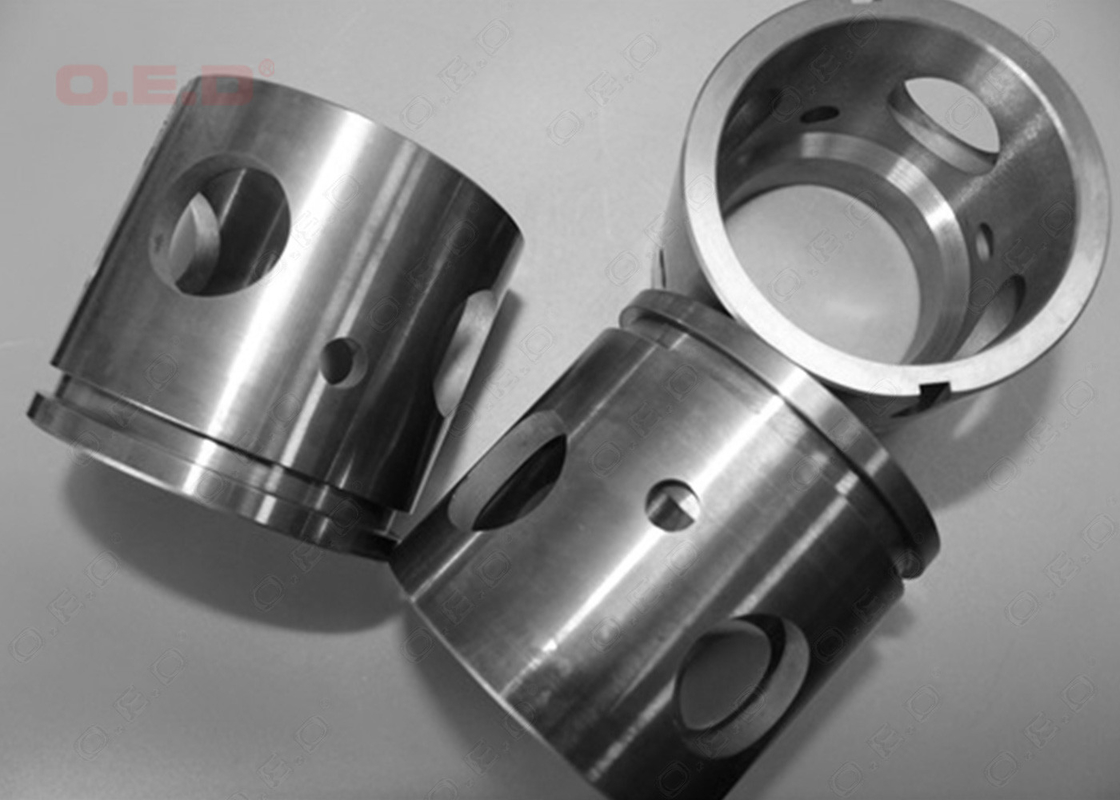

Tungsten Carbide Valve Cage Wellhead Blowout Preventer For Oil Gas Wear Parts
Carbide wear parts for oil and gas industry, wellhead assembly, such as multistage choke manifold, multistage blow down processing, products such as small bits, choke bean, core and seat, plates for throttle valve, explosion proof sleeves, orifice plate, lagging, blasting nozzle, half ball, etc.
Carbide has high hardness, high wear resistance and corrosion resistance, compared to silicon carbide wear resistance is higher, so widely used in oil fields, mines, exploration and other high temperature and high pressure environment,
OED offer a wide range of custom-sized alloy rings, from blanks to precision sizes.
Cobalt Binder Grades
Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
YG6 | 6 | 14.8 | 90 | 1520 |
YG6X | 6 | 14.9 | 91 | 1450 |
YG6A | 6 | 14.9 | 92 | 1540 |
YG8 | 8 | 14.7 | 89.5 | 1750 |
YG12 | 12 | 14.2 | 88 | 1810 |
YG15 | 15 | 14 | 87 | 2050 |
YG20 | 20 | 13.5 | 85.5 | 2450 |
YG25 | 25 | 12.1 | 84 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
