Product Details:
|
| Material: | Tungsten Carbide | ISO GRADE: | G40 |
|---|---|---|---|
| Application: | Oil/Gas Wear Parts | Type: | Punching Head |
| Hardness: | HRA 90.1 | TRS: | 3800 |
| Density: | 14.2 | ||
| High Light: | Wear Resistance Tungsten Carbide Punch,Tungsten Carbide Punch Head,25mm tungsten carbide punches |
||

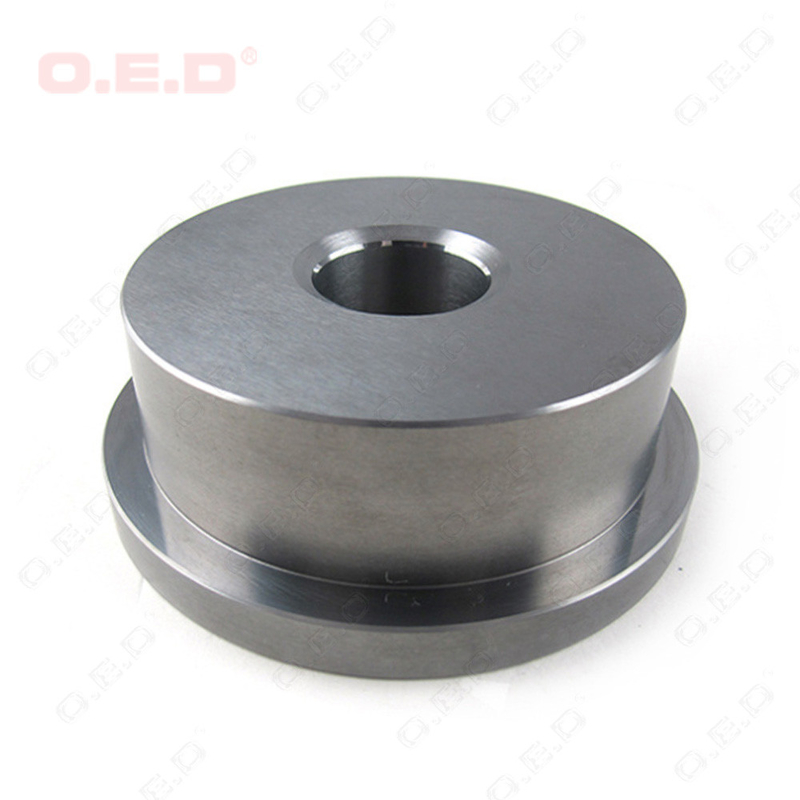

Carbide Wear Resistance Punching Head For Oil Gas Wear Parts Carbide Mould
It is often used in the water pumps, oil pumps, and other pumps, especially used for high pressure or corrosion resistance pumps. Flow restrictors, servo seats, and other sealing components need tungsten carbide bushings.
Material: YG20, Co 20%
Hardness: HRA 90.1
TRS; 3800
Outer diameter 72mm
Height 25mm
Compared with silicon carbide rings, cemented carbide rings have more stable chemical properties such as good wear resistance, high thermal conductivity, low friction coefficient, small expansion coefficient, acid resistance, alkali resistance, self-lubricity, corrosion resistance,
Cobalt Binder Grades
| Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90 | 1520 |
| YG6X | 6 | 14.9 | 91 | 1450 |
| YG6A | 6 | 14.9 | 92 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88 | 1810 |
| YG15 | 15 | 14 | 87 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84 | 2550 |
Nickel Binder Grades
| Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
