K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm

Certification
China Hunan Golden Globe I&E O.E.D Co., Ltd. certification
China Hunan Golden Globe I&E O.E.D Co., Ltd. certification
Customer Reviews
Our company has been cooperating with OED company for over ten years. They can always give us a suitable recommendation for our tools. Great partner!

—— Thomas Berlin

high quality products and also satisying service; being able to provide efficient service; professional proposal and also products.

—— Abdulghan Mohammed

I'm Online Chat Now

K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm

K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm
K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm

Large Image :  K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm

Product Details:
Place of Origin: China
Brand Name: OED/OEM is available
Certification: ISO 9001:2008
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: plastic box
Delivery Time: 1 week
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per week

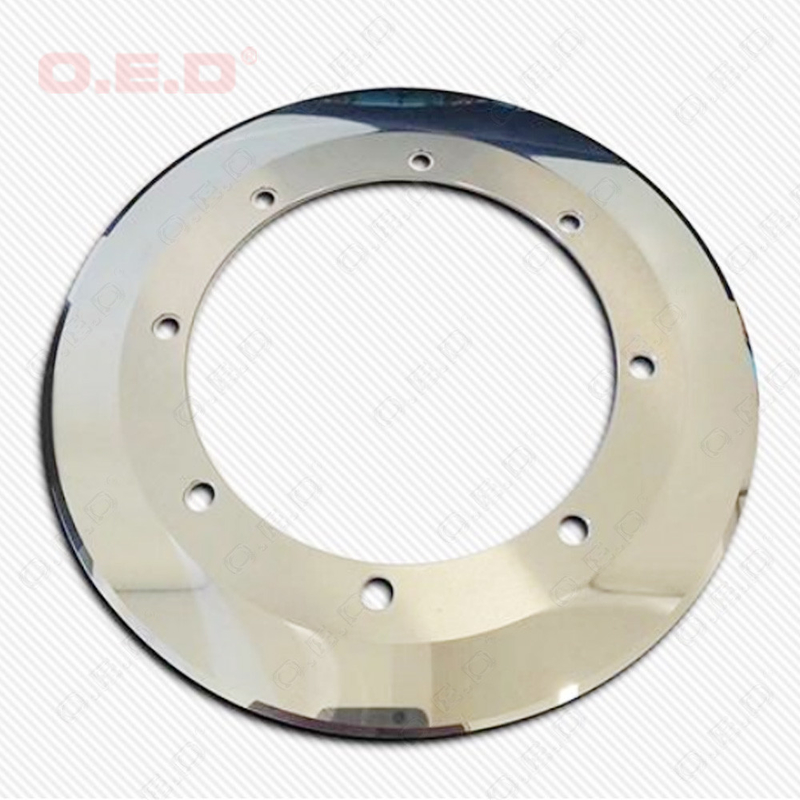

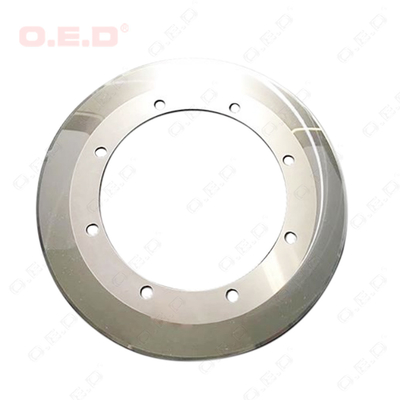

K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm

Description
Material: Tungsten Carbide Application: Carbide Corrugated Circular Slitter Blades
Hardness: 90.5HRA TRS: 2500
Density: 14.8 ISO Grade: K30
OD: 230mm ID: 110mm
Thickness: 1.1mm Parallelism: 0.05
Roughness: Ra 0.8 Cutting Angle: 7 Degree
High Light:

K30 Carbide Slitter Blades

,

Carbide Slitter Blades 1.1mm

,

1.1mm Tungsten Carbide Cutting Blade

Carbide Corrugated Circular Slitter Blades Carbide Carton Knives Tungsten Carbide Cutter​



Outer Diameter: 230mm

Inner Diameter: 110mm

Thickness: 1.1mm





Application

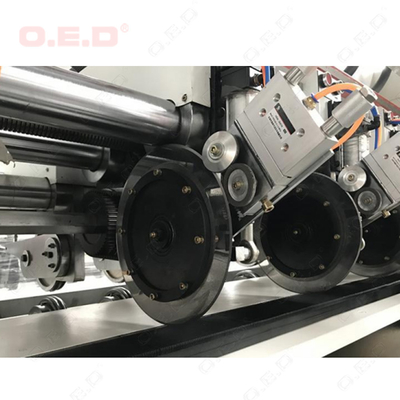

The circular corrugated cardboard cutting blade is mainly used on a thin blade slitter for the slitting of cardboard, three-layer honeycomb board, five-layer honeycomb board, seven-layer honeycomb board.



OED has its own pressing and sintering workshops, with advanced technology and excellent processing equipment, not only satisfying customers' demands on various tungsten carbide products but also reducing their purchasing costs.



item Common size ODxIDxT (mm) Holes Available For machine
1 Ø230xØ110x1.1 6x09 Fosber
2 Ø230xØ135x1.1 4 key slots Fosber
3 Ø220xØ115x1 3x09 Agnati
4 Ø240xØ32x1.2 2x08.5 BHS
5 0240xØ115x1 3x09 Agnati
6 Ø250xØ150x0.8   Peters
7 Ø257xØ135x1.1   Fosber
8 Ø260xØ112x1.5 6x011 Oranda
9 Ø260xØ140x1.5   Isowa
10 Ø260xØ168.3x1.2 68010.5 Marquip
11 Ø265xØ112x1.2 6x011 Mingwei
12 Ø270xØ168,3x1.5 8x010.5 Hseih
13 Ø270xØ140x1.3 6x011 Vatanmakeina
14 Ø270xØ170x1.3 8x010.5
15 Ø280xØ160x1 6x07.5 Mitsubishi
16 Ø280xØ202x1.4 6x08 Mitsubishi
17 Ø291xØ203x1.1 6x08.5 Fosber
18 Ø300xØ112x1.2 6x011 TCY



K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm 0K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm 1

ISO Code Grade Binder Grain size Density
g/cm3
Hardness
HRA
TRS
N/mm2
Application
K10 YF06 6 fine 14.9 92 2000 Fine-grain size, good wear resistance. Semi-finishing of chilled cast iron, non-ferrous metals, semi-finishing and finishing of hardness steel, alloy steel.
K20 YG8 8 medium 14.7 89.5 2500 High strength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast iron, non-ferrous metals, and alloys as wee as non-metallic materials at low cutting speed.
K30 YS2T 10 fine 14.5 92 2350 Fine grain size, high resistance high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc.





K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm 2





K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm 3

K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm 4





K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm 5







K30 Carbide Slitter Blades , Tungsten Carbide Cutting Blade Thickness 1.1mm 6




Our advantages:

  • CIP forming.

CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.

  • Cryogenic process

The internal stress can be removed through the cryogenic process to improve the microstructure.

  • Vibration process

The internal stress can be removed through the vibration process to improve the overall performance.

  • Heat treatment

The service can be improved through the heat treatment process.




Why choose us for carbide wear parts:


  • Professional production equipment. From spray drying towers, extrusion molding, mold molding, injection molding, CIP, HIP sintering furnaces, flat grinders, heartless grinders, round grinders, EMD cutting, polishing machines, etc. OED can provide reliable quality assurance for your products.



  • The strict control of the production processing. From raw materials, sintering, processing, we will strictly test each process, non-conforming products will not enter the subsequent production.



  • Proficient technical team. Senior carbide raw materials engineers: To analyze whether the product meets your application requirements. Senior production managers: To study the most suitable for your product processing methods. Skilled technical inspectors: To test whether the finished product meets your drawing requirements.



  • Reliable service. Not only can we provide pre-sales technical services, but our engineers can also come up with product improvements to provide the most reasonable solution for your product.



  • Low-cost sample development. For trial orders, such as quantity below 10pcs, our engineer team can help customers to find the solution with mold fees. In this way, our customers can try the samples at a minimized cost.



  • Fast delivery. Standard products could be delivered in one week, and the special carbide tools could be finished in 25-45 days after confirming the drawings or 3D model.
