Product Details:
|
Material: | Tungsten Carbide | Application: | Paper Slitteing Knives |
---|---|---|---|
Hardness: | 91.9-92HRA | TRS: | 2500--3000 |
Density: | 14.5 | ISO Grade: | K30 |
OD: | 50-350mm | ID: | 50mm |
Thickness: | 5mm | Parallelism: | 0.05 |
Roughness: | Ra 0.8 | Cutting Angle: | 7 Degree |
High Light: | Tissue Paper Tungsten Carbide Saw Blade,92HRA Tungsten Carbide Saw Blade |

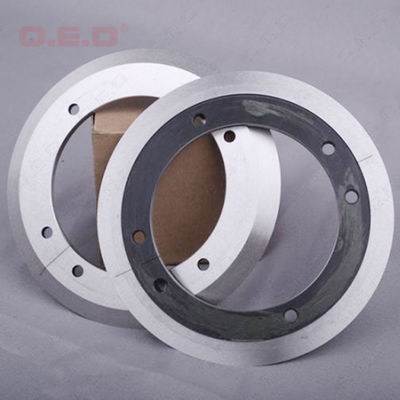

Carbide Rolled Embossed Paper Carbide Tissue Paper Slitter Blades Carbide Circular Knives
Application
The tissue paper slitter blade is also called circular blade, bed knife, bottom blade etc. which is mainlv used for cutting household paper such as tissue paper, rolled embossed paper, rolled paper.It has high hardness and without burrs on cutting.
Standard sizes:
Outer diameter | Inner diameter | Thickness |
200 | 171 | 0.8 |
250 | 222 | 0.8 |
114 | 100 | 40 |
178 | 138 | 55 |
200 | 180 | 40 |
200 | 158 | 55 |
200 | 165 | 92 |
200 | 170 | 95 |
275 | 236 | 62 |
275 | 245 | 100 |
275 | 245 | 85 |
280 | 240 | 110 |
300 | 270 | 88 |
310 | 266 | 110 |
ISO Code | Grade | Binder | Grain size | Density g/cm3 |
Hardness HRA |
TRS N/mm2 |
Application |
K10 | YF06 | 6 | fine | 14.9 | 92 | 2000 | Fine grain size, good wear resistance. Semi-finishing of chilled cast iron, non-ferrous metals, semi-finishing and finishing of hardness steel, alloy steel. |
K20 | YG8 | 8 | medium | 14.7 | 89.5 | 2500 | High stength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast iron, non-ferrous metals and the alloys as wee as non metallic materials at low cutting speed. |
K30 | YS2T | 10 | fine | 14.5 | 92 | 2350 | Fine grain size, high resistance high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc. |
