Product Details:
|
| Material: | Tungsten Carbide | Application: | Paper Slitteing Knives |
|---|---|---|---|
| Hardness: | 91.9-92HRA | TRS: | 2500--3000 |
| Density: | 14.5 | ISO Grade: | K30 |
| OD: | 350mm | ID: | 50mm |
| Thickness: | 5mm | Parallelism: | 0.05 |
| Roughness: | Ra 0.8 | Cutting Angle: | 7 Degree |
| High Light: | 92HRA Carbide Slitter Blades,350mm Carbide Slitter Blades,350mm Rotary Shear Blades |
||

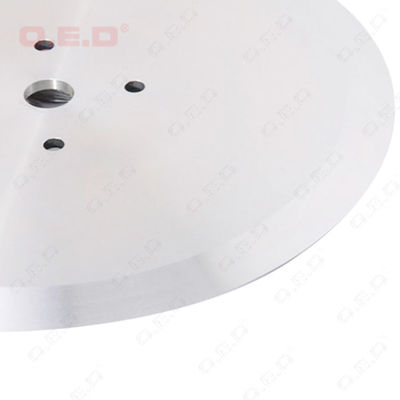

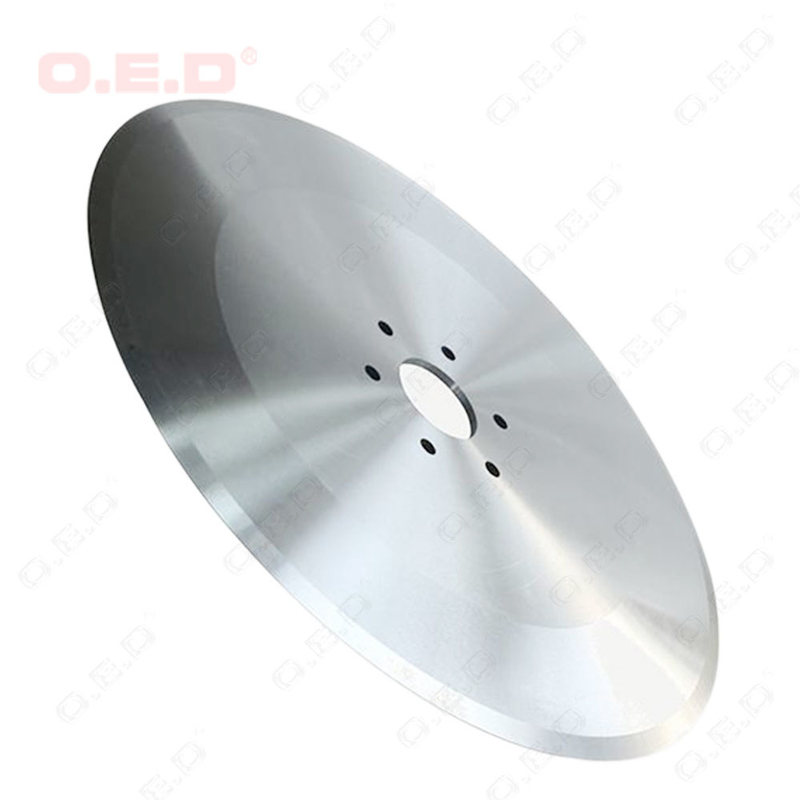

Carbide Large Diameter Rotary Shear Blades Tungsten Carbide Slitter Blades Disc Cutters
Application
The large diameter rotary shear blade is mainly used on tissue paper machines to cut rolled toilet paper, rolled embossed paper etc. During the cutting, the Friction between blade and paper generates heat, thus the blade edge is required to be sharp and wear-resistant, and the radiaL runout oF blade be small.
Standard circular specifications
| Specifications | ||||||||
| Specifications | Outer diameter | Inner diameter | B Width | b Blade width | Large- Medium diameter | Small Medium diameter | C Key width | H Key depth |
| Ø70×Ø45×10×8 | 70 | 45 | 10 | 8 | 67 | 59 | 10 | 49 |
| Ø70×Ø45×4×2.5 | 70 | 45 | 4 | 2.5 | 67 | 59 | 10 | 49 |
| Ø80×Ø50×5×3.5 | 80 | 50 | 5 | 3.5 | 77 | 65 | 10 | 53.8 |
| Ø80×Ø50×10×8 | 80 | 50 | 10 | 8 | 77 | 65 | 10 | 53.8 |
| Ø80×Ø60×10×8 | 80 | 60 | 10 | 8 | 77 | 69 | ||
| Ø70×Ø45×6×4 | 70 | 45 | 6 | 4 | 67 | 59 | ||
| Ø108×Ø80×10×8 | 108 | 80 | 10 | 8 | 105 | 90 | ||
| Ø108×Ø80×20×18 | 108 | 80 | 20 | 18 | 104 | 90 | ||
Recommened grades of slitter blades for metal working:
|
Grade
|
Density | Strength | Hardness | Application |
| YS2T | 14.5 | ≥2300 | ≥91.5 | Qualified for low speed rough machining,milling titanuium alloy and refractory alloy,especially for cut-off tool and silk prick. |
| YG6X | 14.9 | ≥1860 | ≥92.0 | Qualified for machining of chilled cast iron,alloy cast iron,refractory steel and alloy steel.Also Qualified for the machining of common cast iron. |
| YG8 | 14.8 | ≥2400 | ≥89.5 | Wear resistance and bending strength,suitable for disc cutters in electronics industry. |
| YL10.2 | 14.5 | ≥3400 | ≥91.7 | Fine grain alloy, good wear resistance. Used for processing hard wood. Veneer board, PCB, PVC and metals. |
| ISO Code | Grade | Binder | Grain size | Density g/cm3 |
Hardness HRA |
TRS N/mm2 |
Application |
| K10 | YF06 | 6 | fine | 14.9 | 92 | 2000 | Fine grain size, good wear resistance. Semi-finishing of chilled cast iron, non-ferrous metals, semi-finishing and finishing of hardness steel, alloy steel. |
| K20 | YG8 | 8 | medium | 14.7 | 89.5 | 2500 | High stength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast iron, non-ferrous metals and the alloys as wee as non metallic materials at low cutting speed. |
| K30 | YS2T | 10 | fine | 14.5 | 92 | 2350 | Fine grain size, high resistance high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc. |
