Product Details:
|
Material: | Tungsten Carbide | Application: | Metal Slitteing Knives |
---|---|---|---|
Hardness: | 91.9-92HRA | TRS: | 2500--3000 |
Density: | 14.5 | ISO Grade: | K30 |
OD: | 150mm | ID: | 50mm |
Thickness: | 10mm | Parallelism: | 0.05 |
Roughness: | Ra 0.8 | Cutting Angle: | 7 Degree To 20 Degree |
High Light: | Ra 0.8 Carbide Slitter Blades,Silicon Steel Carbide Slitter Blades,Silicon Steel Metal Slitting Blades |

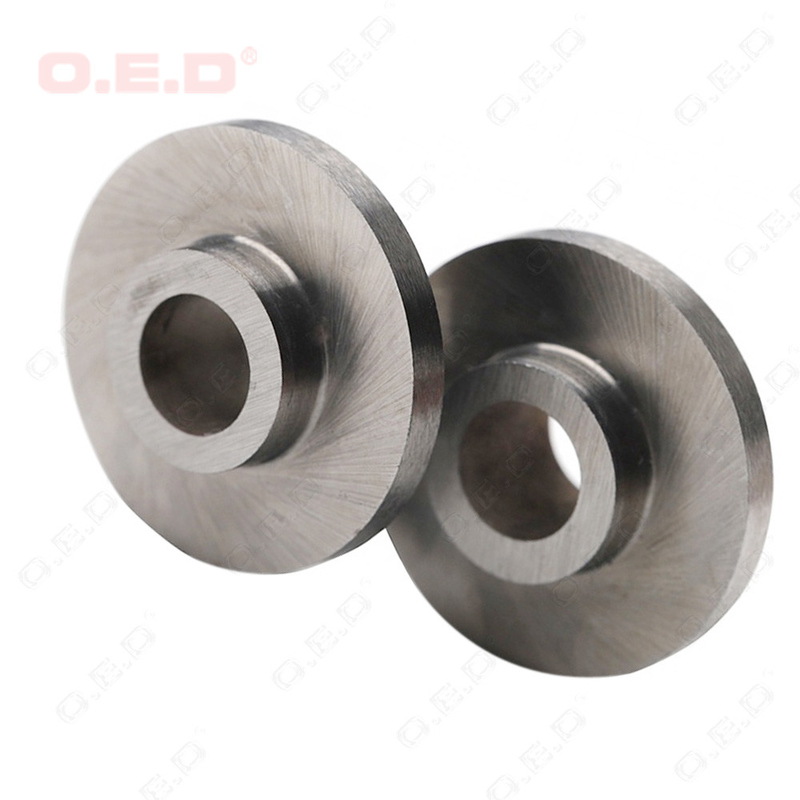

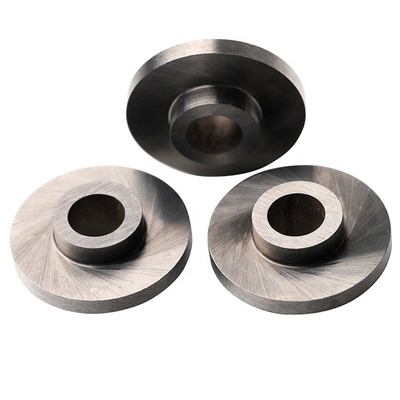

Carbide Slitter Blades K10 Circular For Silicon Steel Sheet Metal Slitting Knives
Round tungsten carbide disc cutting blade for tungsten carbide slot knife.
Full size:
outside diameters range from 8 mm to 324 mm
thicknesses range from 0.8 mm to 8 mm
Full grades of YG6, YG6X, YG8, YS2T, YG10HT are available.
Meet the needs of different applications such as cutting wood, plastics, stainless steel and other metals or materials.
Recommened grades of slitter blades for metal working:
Grade
|
Density | Strength | Hardness | Application |
YS2T | 14.5 | ≥2300 | ≥91.5 | Qualified for low speed rough machining,milling titanuium alloy and refractory alloy,especially for cut-off tool and silk prick. |
YG6X | 14.9 | ≥1860 | ≥92.0 | Qualified for machining of chilled cast iron,alloy cast iron,refractory steel and alloy steel.Also Qualified for the machining of common cast iron. |
YG8 | 14.8 | ≥2400 | ≥89.5 | Wear resistance and bending strength,suitable for disc cutters in electronics industry. |
YL10.2 | 14.5 | ≥3400 | ≥91.7 | Fine grain alloy, good wear resistance. Used for processing hard wood. Veneer board, PCB, PVC and metals. |
