Product Details:
|
Material: | Tungsten Carbide | Type: | Milling Tools |
---|---|---|---|
Application: | For ALU | ISO Grade: | K20 |
TRS: | 2800 | Hardness: | HRA 90.5-92.5 |
Density: | 14.5 | Outer Dia: | 60 |
Inner Dia: | 15 | Thickness: | 15 |
High Light: | K20 Carbide Milling Inserts,Round Carbide Milling Inserts |
K20 Carbide Milling Inserts Aluminium Insert Metal Working Tools Special Carbide Cutting Tools

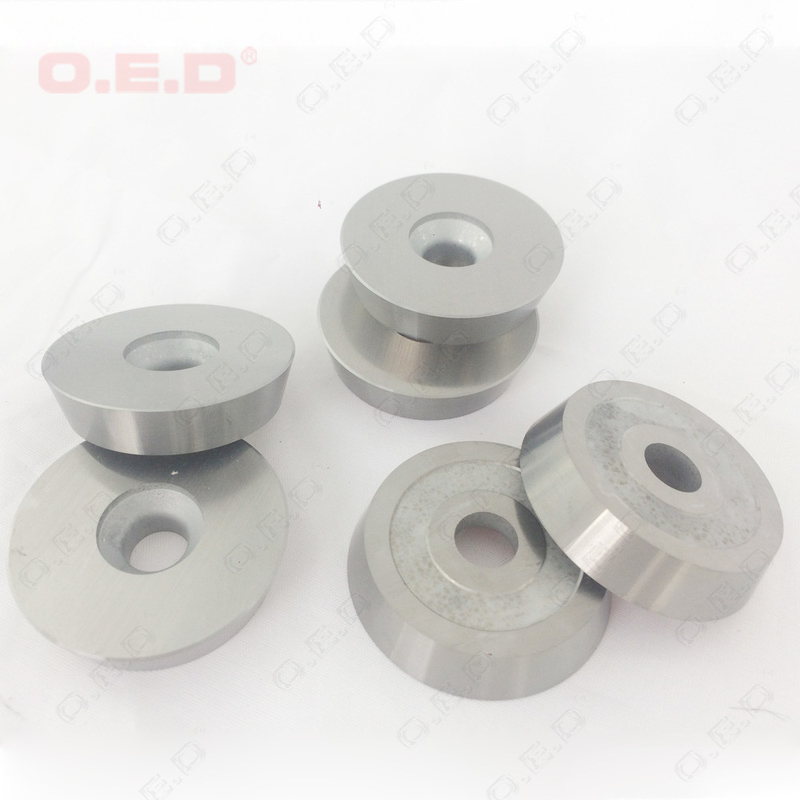

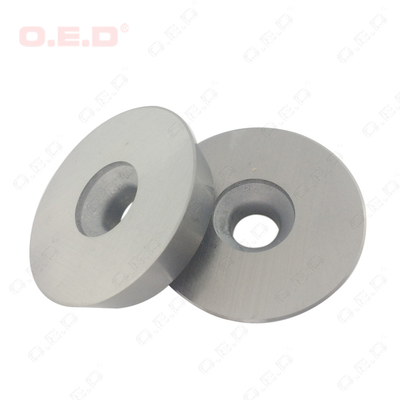

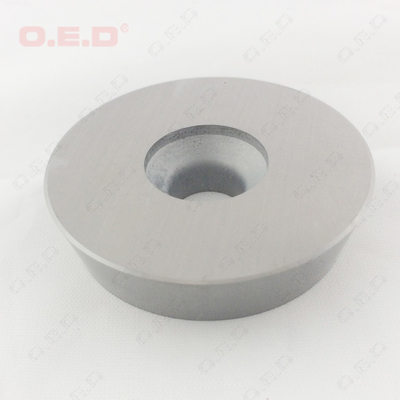

Customized carbide round milling cutter
This cemented carbide milling cutter is a special milling cutter for processing aluminum materials. Used for special cutter heads, it can greatly improve aluminum processing efficiency and save downtime losses caused by equipment maintenance.
Diameter 60mm
Inner hole 15mm
Thickness 15mm
Roundness 0.01
Concentricity 0.01
Finish Ra 0.4
Recommended grades for metal working
Application Code |
Chemical Composition | Physical Properties of powder |
Physical and mechanical properties and mirco structure as stintered |
Application recommended | ||||||||
Co | Tic/ TacNbc |
WC | Hall Flow | Apparent density |
Density | Hardness | Transverse rupture strength |
Coercivity | Magnetic saturation |
Porosity | ||
s/25cm3 | g/cm3 | g/cm3 | HV 30 | N/mm2 | KA/m | % | ||||||
P10 | 9.5 | 35 | 55.5 | 35 | 2.52 | 10.3 | 1525-1675 | ≥1130 | 9.2-11.5 | 8.3-9.5 | A02 B00 | For machining steel and cast steel |
P20 | 8.2 | 14 | 77.8 | 32 | 2.83 | 11.52 | 1560-1700 | ≥1400 | 12.0-15.5 | 7.5-8.2 | A02 B00 | For machining long-chip steel, cast steel and forgeable cast iron |
P25 | 9.5 | 21.9 | 68.6 | 35 | 2.5 | 11.42 | 1400-1550 | ≥1700 | 8.0-10.4 | 8.5-9.5 | A02 B00 | |
P30 | 9.3 | 6.3 | 84.4 | 32 | 3.14 | 13.02 | 1370-1560 | ≥1750 | 9.5-12.5 | 8.6-9.2 | A02 B00 | |
10 | 20 | 70 | 33 | 3.08 | 12.86 | 1425-1575 | ≥1600 | 13.7-15.5 | 8.1-9.1 | A02 B00 | ||
P35 | 11 | 12 | 77 | 35 | 3.24 | 13.12 | 1320-1460 | ≥1650 | 10.7-13.1 | 9.1-10.1 | A02 B00 | For machining steel and cast steel parts with different pores including sand holes. |
P40 | 12 | 18.93 | 69.07 | 35 | 2.88 | 12.75 | ≥1400 | ≥2250 | 15.0-19.0 | 10.0-11.2 | A04 B02 |
