Product Details:
|
| Material: | Tungsten Carbide | Type: | Punching Tools |
|---|---|---|---|
| Application: | For Metal Forming, Stamping Tools | ISO Grade: | G20/G30/G40/G50/G60 |
| TRS: | 2800-3800 | Hardness: | HRA 90.5-92 |
| Density: | 14.5 | Outer Dia: | 30-200 |
| Inner Dia: | 0.5-150 | Thickness: | 10-200 |
| High Light: | Carbide Metal Cutting Tools Pellets,Punching Carbide Metal Cutting Tools,tungsten carbide pellets |
||

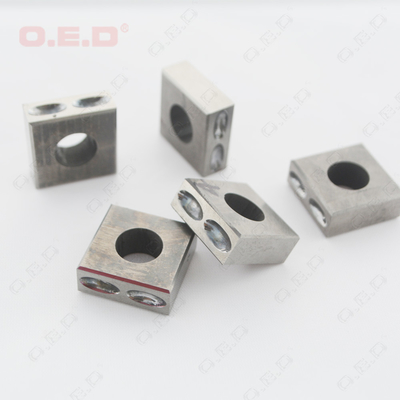

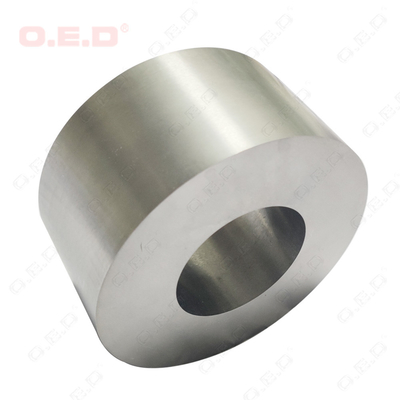

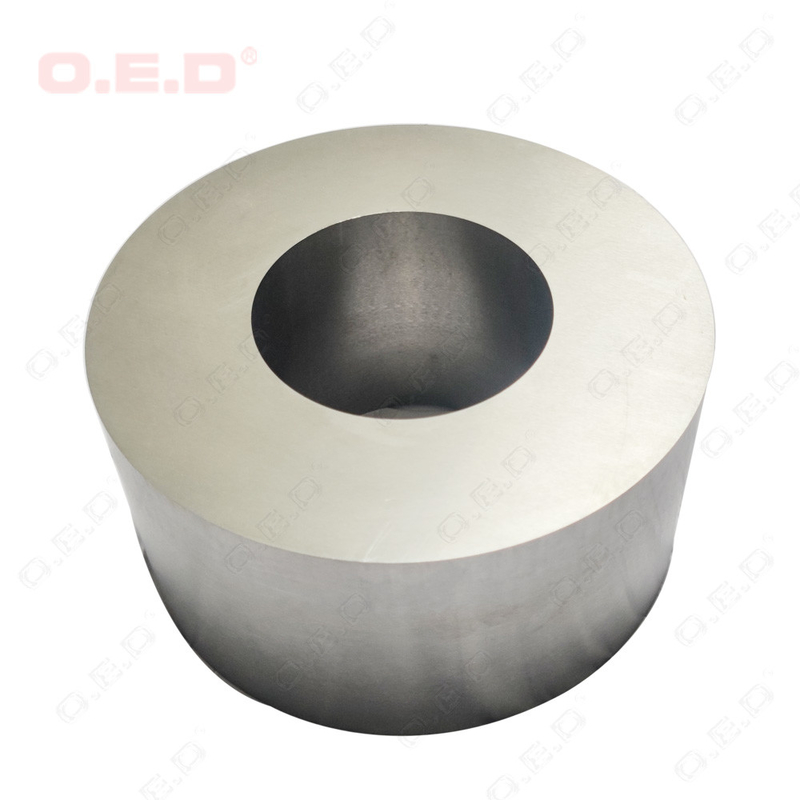

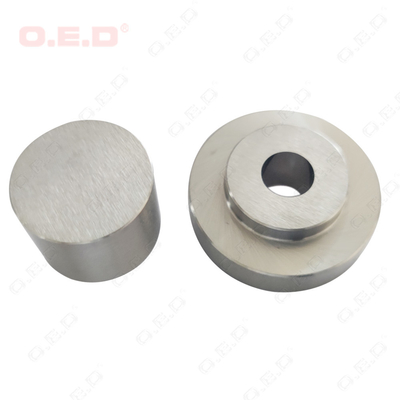

Cold Heading Tools Pellets Tungsten Carbide Metal Working Punching Stamping Tools
Cold heading tools Pellets, also known as hard metal forging tools, are used for shaped pellets in the chemical, food, mechanical engineering, architecture, etc. sectors.
More than 800 kinds of sizes are available with accurate dimensions, fine grain and the polished finish.
Recommended grades
| Grade | Density | TSR | Hardness | Grain Size | Recommended application |
| OCH010 | 13.88 | ≥3200 | ≥86.5 | 2~3 | Suitable for Mold of High Wear Resistance with Small Reduction in Diamete |
| OCH011 | 13.8 | ≥3000 | ≥86 | 3~6 | Inner diameter Φ2.1 and below nut and bolt die for stainless steel |
| OCH012 | 13.55 | ≥3200 | ≥83.8 | 3~6 | Suitable for molds to make a straight rod, screws, nuts, High impact fastener etc |
| OCH013 | 13.4 | ≥3200 | ≥85.2 | 2~6 | Inner diameter Φ2.1 and above nut and bolt die for stainless |
| OCH014 | 13.38 | ≥2700 | ≥82.5 | 6~9 | High impact fastener, nut forming dies |
| OCH015 | 13.15 | ≥2600 | ≥81.5 | 6~9 | Suitable for High impact fastener Heavy loads nut molds |
