Product Details:
|
| Material: | Tungsten Carbide | Type: | Carbide Brazed Tips |
|---|---|---|---|
| Application: | Metal Working Tools | ISO Grade: | K20 |
| TRS: | 2800 | Hardness: | HRA 90.5-92 |
| Density: | 14.8 | Length: | 10-30 |
| Width: | 10-30 | Thickness: | 1-10 |
| High Light: | YG11C Tungsten Carbide Brazed Tips,CNC Tungsten Carbide Brazed Tips,YG8C carbide brazed tips |
||

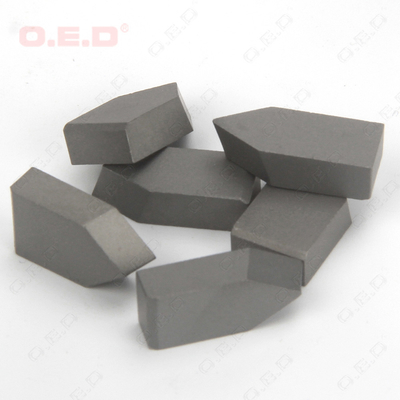

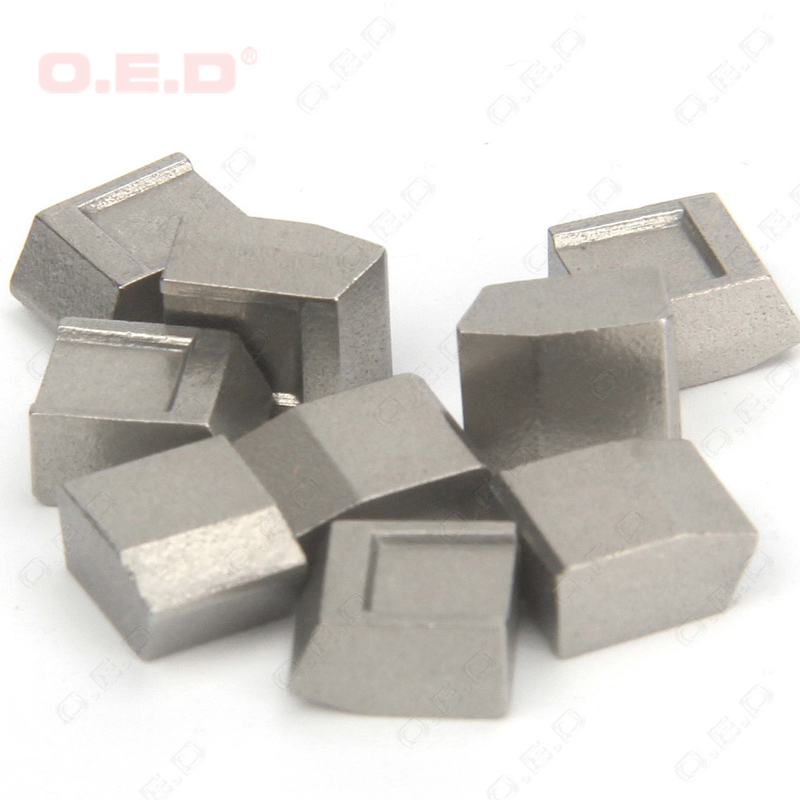

Tungsten Carbide Brazed Tips For Metal Working Cutting Blade Carbide Tipped Brazed Tools
Tungsten Carbide Brazed Tips are widely used for CNC machines as lathe tools, grounding tools, drilling tools, forming lathe tools, end mill tools, etc.
Material: high quality raw material with submicron and average grain size.
Tolerance: strict tolerance range control which can reach +/- 0.01mm;
Grade: various to choose from: YG8C, YG10C, YG11C and so on.
Types: standard, conical, parabolic, ballistic
Physical performance: high hardness and impact strength, very good mechanical and chemical stability.
Recommended grades for brazed tips:
| Grade | Density | Hardness | TRS |
| (g/cm3) | (HRA) | (MPa) | |
| K10/YG6X | 14.95 | 91.5 | 1800 |
| K20/YG6 | 14.95 | 90.5 | 1900 |
| OT15 | 11.4 | 91.5 | 1600 |
| OT14 | 11.6 | 90.8 | 1700 |
| OT5 | 12.9 | 90.5 | 2200 |
| M10 | 13.1 | 91.6 | 1600 |
| M20 | 13 | 90.6 | 1800 |
