Product Details:
|
Material: | Tungsten Carbide | Type: | Metal Cutting Tools |
---|---|---|---|
Application: | Copper Alloy | ISO Grade: | K30/K40 |
TRS: | 2000 | Hardness: | HV30 1500-1650 |
Density: | 14.5 | ||
High Light: | K30 Carbide Metal Cutting Tools,Raw Sintered Carbide Metal Cutting Tools,K40 carbide saw blades |
Raw Sintered Carbide Saw Blades K30/K40 Carbide Metal Copper Cutting Tools
Diameter 60.5mm
Inner hole 45mm
Thickness 3mm
Roundness 0.015
Ra 6.3
Teeth NO. 100pcs

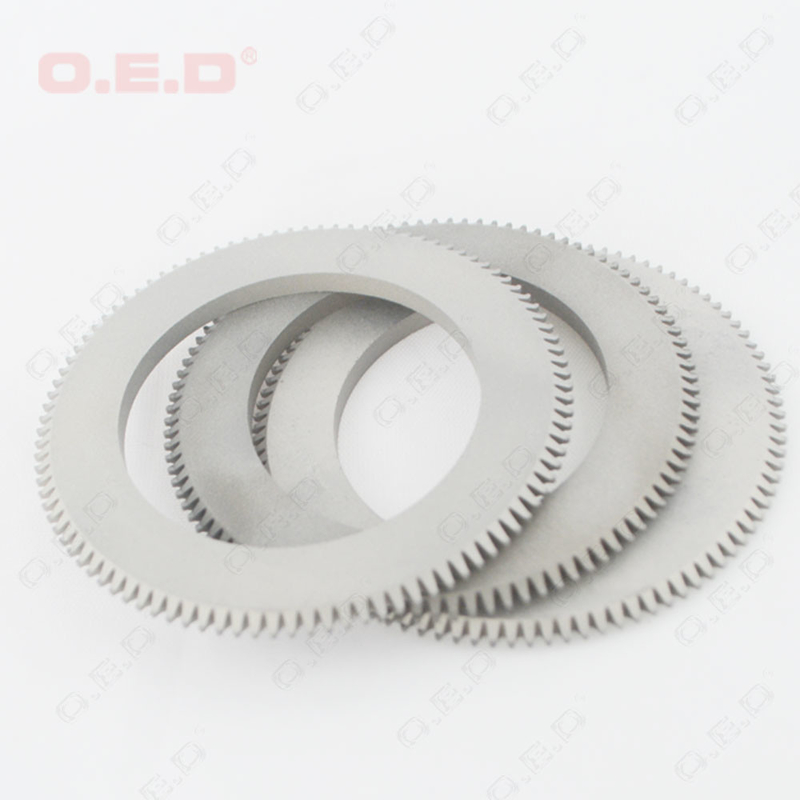

Carbide raw sintered saw blade with 100 teeth.
Recommended grades for metalworking
Application Code |
Chemical Composition | Physical Properties of powder |
Physical and mechanical properties and micro structure as sintered |
Application recommended | ||||||||
Co | Tic/ TacNbc |
WC | Hall Flow | Apparent density |
Density | Hardness | Transverse rupture strength |
Coercivity | Magnetic saturation |
Porosity | ||
s/25cm3 | g/cm3 | g/cm3 | HV 30 | N/mm2 | KA/m | % | ||||||
P10 | 9.5 | 35 | 55.5 | 35 | 2.52 | 10.3 | 1525-1675 | ≥1130 | 9.2-11.5 | 8.3-9.5 | A02 B00 | For machining steel and cast steel |
P20 | 8.2 | 14 | 77.8 | 32 | 2.83 | 11.52 | 1560-1700 | ≥1400 | 12.0-15.5 | 7.5-8.2 | A02 B00 | For machining long-chip steel, cast steel and forgeable cast iron |
P25 | 9.5 | 21.9 | 68.6 | 35 | 2.5 | 11.42 | 1400-1550 | ≥1700 | 8.0-10.4 | 8.5-9.5 | A02 B00 | |
P30 | 9.3 | 6.3 | 84.4 | 32 | 3.14 | 13.02 | 1370-1560 | ≥1750 | 9.5-12.5 | 8.6-9.2 | A02 B00 | |
10 | 20 | 70 | 33 | 3.08 | 12.86 | 1425-1575 | ≥1600 | 13.7-15.5 | 8.1-9.1 | A02 B00 | ||
P35 | 11 | 12 | 77 | 35 | 3.24 | 13.12 | 1320-1460 | ≥1650 | 10.7-13.1 | 9.1-10.1 | A02 B00 | For machining steel and cast steel parts with different pores including sand holes. |
P40 | 12 | 18.93 | 69.07 | 35 | 2.88 | 12.75 | ≥1400 | ≥2250 | 15.0-19.0 | 10.0-11.2 | A04 B02 |
