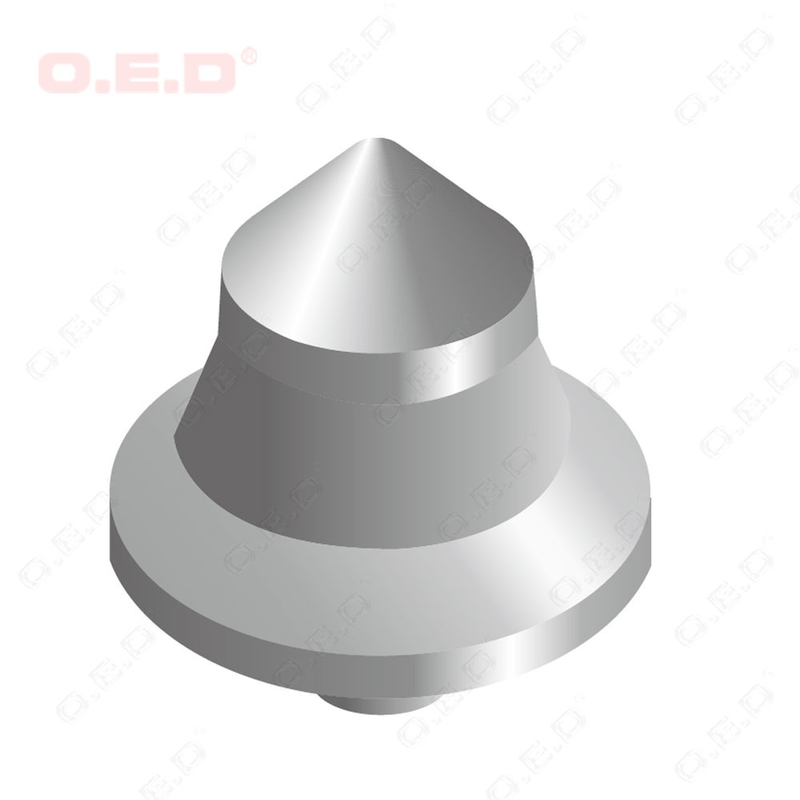

YG13C Road Breaking Tungsten Carbide Button For Construction

Certification
China Hunan Golden Globe I&E O.E.D Co., Ltd. certification
China Hunan Golden Globe I&E O.E.D Co., Ltd. certification
Customer Reviews
Our company has been cooperating with OED company for over ten years. They can always give us a suitable recommendation for our tools. Great partner!

—— Thomas Berlin

high quality products and also satisying service; being able to provide efficient service; professional proposal and also products.

—— Abdulghan Mohammed

I'm Online Chat Now

YG13C Road Breaking Tungsten Carbide Button For Construction

YG13C Road Breaking Tungsten Carbide Button For Construction
YG13C Road Breaking Tungsten Carbide Button For Construction YG13C Road Breaking Tungsten Carbide Button For Construction

Large Image :  YG13C Road Breaking Tungsten Carbide Button For Construction

Product Details:
Place of Origin: China
Brand Name: OED or OEM
Certification: ISO 9001: 2008
Model Number: Carbide button bits
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: 38usd/kg
Packaging Details: plastic box/+ Cartons
Delivery Time: Standard products in one week, special tools in 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000kgs per month

YG13C Road Breaking Tungsten Carbide Button For Construction

Description
Material: Tungsten Carbide Application: Road Breaking Button Bit
ISO Grade: YG13C Hardness: HRA87
TRS: 2600 Density: 14.2
Tolerance: ISO 2768 M Grain Size: 1.6
High Light:

Road Breaking Tungsten Carbide Button

,

YG13C Tungsten Carbide Button

,

Construction carbide mining button

Tungsten Carbide YG13C Road Breaking Buttons For Construction Drilling Tools​

Raw sintered button bits Ra 3.2
Type: Road breaking button bits
Application: Suitable for drilling medium-hard or hard rock formation.


YG13C Road Breaking Tungsten Carbide Button For Construction 0
Specifications of conical button bits

TYPE

Dimension (mm)





D

d1 d2 H h1 h2
WLCA1820 18.0 10.0 9.5 20.15 4.5 6.5


Material YG13C

Co 13%
WC 87%
Grain size: Coarse


YG13C Road Breaking Tungsten Carbide Button For Construction 1
Recommended Grades

Iso Code Grade Density Hardness
HRA
T.R.S. Grain size Applications
K30 YG8 14.75 90 2400 Medium Suitable for diameter-keeping inserts and serrated inserts.
K40 YG11C 14.4 88 2600 Coarse Suitable for drilling medium-hard or hard rock formation.
K40 YG13C 14.2 87 2600 Coarse Suitable for drilling medium-hard or hard rock formation.
K40 YG13 14.2 87.5 2800 Coarse Suitable for the matrix of composite with PDC and PCBN in cutting tools.
K50 YG16 13.9 87 2900 Medium Suitable for the matrix of composite with the diamond in geological and oil field excavation.

YG13C Road Breaking Tungsten Carbide Button For Construction 2



Our advantages:

  • CIP forming.

CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.

  • Cryogenic process

The internal stress can be removed through the cryogenic process to improve the microstructure.

  • Vibration process

The internal stress can be removed through the vibration process to improve the overall performance.

  • Heat treatment

The service can be improved through the heat treatment process.




YG13C Road Breaking Tungsten Carbide Button For Construction 3

YG13C Road Breaking Tungsten Carbide Button For Construction 4
CIP forming.
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.


YG13C Road Breaking Tungsten Carbide Button For Construction 5


YG13C Road Breaking Tungsten Carbide Button For Construction 6




YG13C Road Breaking Tungsten Carbide Button For Construction 7




Why choose us for carbide wear parts:


  • Professional production equipment. From spray drying towers, extrusion molding, mold molding, injection molding, CIP, HIP sintering furnaces, flat grinders, heartless grinders, round grinders, EMD cutting, polishing machines, etc. OED can provide reliable quality assurance for your products.



  • The strict control of the production processing. From raw materials, sintering, processing, we will strictly test each process, non-conforming products will not enter the subsequent production.



  • Proficient technical team. Senior carbide raw materials engineers: To analyze whether the product meets your application requirements. Senior production managers: To study the most suitable for your product processing methods. Skilled technical inspectors: To test whether the finished product meets your drawing requirements.



  • Reliable service. Not only can we provide pre-sales technical services, but our engineers can also come up with product improvements to provide the most reasonable solution for your product.



  • Low-cost sample development. For trial orders, such as quantity below 10pcs, our engineer team can help customers to find the solution with mold fees. In this way, our customers can try the samples at a minimized cost.



  • Fast delivery. Standard products could be delivered in one week, and the special carbide tools could be finished in 25-45 days after confirming the drawings or 3D model.
