Product Details:
|
Material: | Tungsten Carbide | Application: | Double Conical Button Bits |
---|---|---|---|
ISO Grade: | YG13C | Hardness: | HRA87 |
TRS: | 2600 | Density: | 14.2 |
Tolerance: | ISO 2768 M | Grain Size: | 1.6 |
High Light: | HRA87 Carbide Drilling Tools,Coal Mining Carbide Drilling Tools,YG13C Cone Shaped Drill Bit |

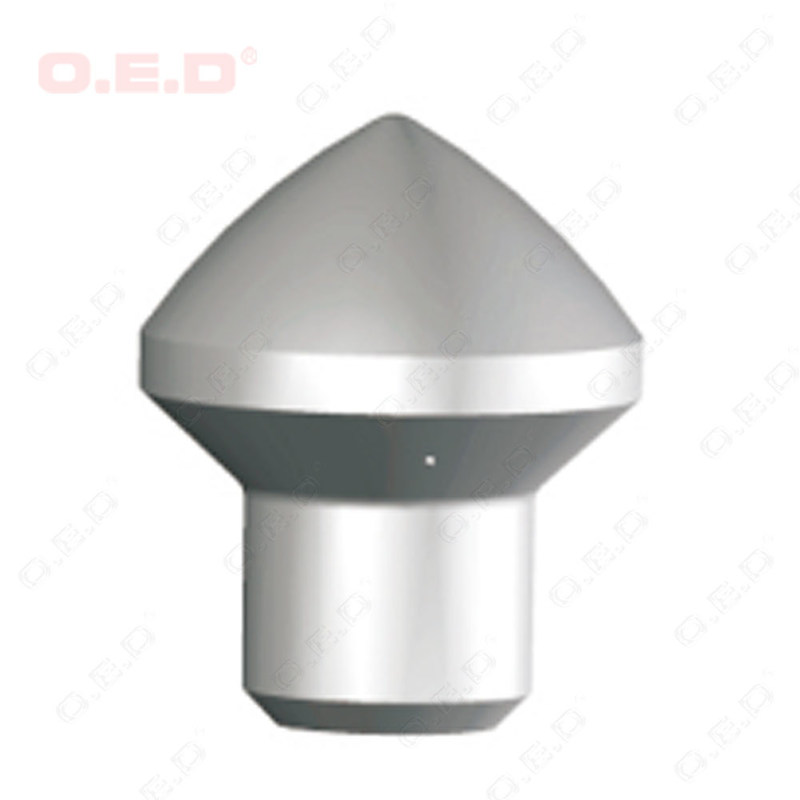

Coal Mining YG13C Mushroom Double Conical Button Bits For Ground Drilling
Material YG13C
Co 13%
WC 87%
Grain size: Coarse
The surface roughness Ra 3.2
Type: Double Conical Button Bits
Application: Suitable for drilling medium-hard or hard rock formation.
Specifications of conical button bits
TYPE | Dimension (mm) | ||||||
D | H | h | SR1 | SR2 | a. | B° | |
JCA0917 | 8.99 | 16 .80 | 10 .80 | 1.90 | 1.60 | 77 | 140 |
JCA1625 | 15.68 | 25.20 | 14.10 | 1.60 | 1.00 | 80 | 140 |
JCA0917-2 | 8.93 | 16 .80 | 10 .80 | 1.20 | 1.00 | 79 | 140 |
JCA1221 | 12.40 | 21.10 | 12.70 | 1.50 | 1.00 | 80 | 140 |
Recommended Grades
Iso Code | Grade | Density | Hardness HRA | T.R.S. | Grain size | Applications |
K30 | YG8 | 14.75 | 90 | 2400 | Medium | Suitable for diameter-keeping inserts and serrated inserts. |
K40 | YG11C | 14.4 | 88 | 2600 | Coarse | Suitable for drilling medium-hard or hard rock formation. |
K40 | YG13C | 14.2 | 87 | 2600 | Coarse | Suitable for drilling medium-hard or hard rock formation. |
K40 | YG13 | 14.2 | 87.5 | 2800 | Coarse | Suitable for the matrix of composite with PDC and PCBN in cutting tools. |
K50 | YG16 | 13.9 | 87 | 2900 | Medium | Suitable for the matrix of composite with the diamond in geological and oil field excavation. |
Our advantages:
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.
The internal stress can be removed through the cryogenic process to improve the microstructure.
The internal stress can be removed through the vibration process to improve the overall performance.
The service can be improved through the heat treatment process.
CIP forming.
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.
