Product Details:
|
Material: | Tungsten Carbide | Application: | PDC Sbustrate |
---|---|---|---|
ISO Grade: | YG8/K30 | Hardness: | HRA90 |
TRS: | 2400 | Density: | 14.75 |
Tolerance: | ISO 2768 M | Grain Size: | 1.6-2.0 |
High Light: | YG8 Carbide Drilling Tools,Carbide Drilling Tools PDC Substrate |

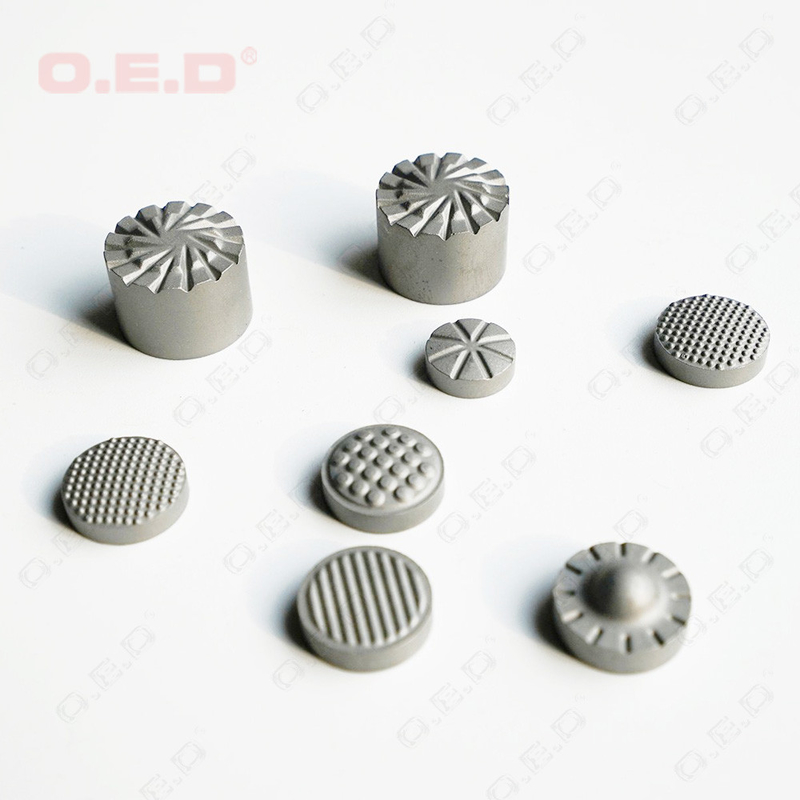

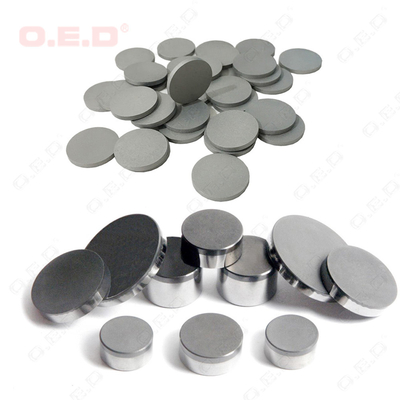

YG8 Tungsten Carbide PDC Substrate Matrix Of Composite Insert For Mining Oil Field
Suitable for the matrix of composite with the diamond in geological and oil field excavation.
Material YG8
Co 8%
WC 92%
T.R.S 2400
Hardness HRA 90
Grain size: Coarse
Recommended Grades
Iso Code | Grade | Density | Hardness HRA |
T.R.S. | Grain size | Applications |
K30 | YG8 | 14.75 | 90 | 2400 | Medium | Suitable for diameter-keeping inserts and serrated inserts. |
K40 | YG11C | 14.4 | 88 | 2600 | Coarse | Suitable for drilling medium-hard or hard rock formation. |
K40 | YG13C | 14.2 | 87 | 2600 | Coarse | Suitable for drilling medium-hard or hard rock formation. |
K40 | YG13 | 14.2 | 87.5 | 2800 | Coarse | Suitable for the matrix of composite with PDC and PCBN in cutting tools. |
K50 | YG16 | 13.9 | 87 | 2900 | Medium | Suitable for the matrix of composite with the diamond in geological and oil field excavation. |
Our advantages:
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.
The internal stress can be removed through the cryogenic process to improve the microstructure.
The internal stress can be removed through the vibration process to improve the overall performance.
The service can be improved through the heat treatment process.
CIP forming.
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.
