Product Details:
|
| Material: | 42CrMo/Z780/45CrNiMov | Application: | Rocking Drlling Tools |
|---|---|---|---|
| Color: | Golden/Red/Yellow | Button No: | 8 |
| Taper Degree: | 7° | Shank Size:: | Hex19 |
| High Light: | 8 Button Carbide Drilling Tools,Tapered Button Bit Hex19,7 Degree Tapered Button Bit |
||

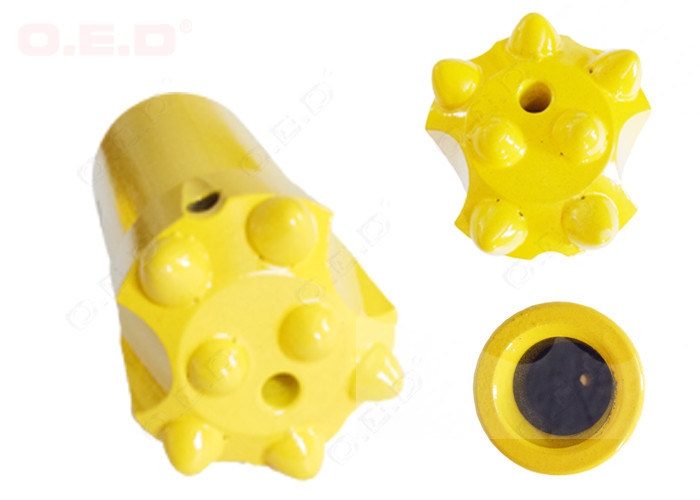

7 Dregree Tapered Button Carbide Rock Drilling Tools Bits Diameter From 24mm To 48mm
Q8-34-1222-65 specification:
Drill bit diameter Ø34mm
Length:65mm
Carbide Button: 8pcs
Button Shape: ballistc
Tapered degree:12°
Water (flushing) holes: Front 2pcs, side 1pc
Suit for air leg or hand jack hammer driller in quarry, like YT26.
| Code No. | Diameter(mm) | Length (mm) |
Carbide Dimension |
Code No. | Diameter(mm) | Length (mm) |
Carbide Dimension |
| Q4-26-722-65 | 26 | 65 | 0710×4 | Q7-38-722-50 | 38 | 50 | 0710×2 |
| Q4-28-722-55 | 28 | 55 | 0710×4 | 0913×5 | |||
| Q4-28-722-80 | 28 | 80 | 0710×4 | Q7-38-722-60 | 38 | 60 | 0710×2 |
| Q6-28-722-71 | 28 | 71 | 0710×4 | 0913×5 | |||
| 0610×2 | Q7-38-722-71 | 38 | 71 | 0710×2 | |||
| Q6-28-722-80 | 28 | 80 | 0710×4 | 0913×5 | |||
| 0610×2 | Q7-38-722-80 | 38 | 80 | 0710×2 | |||
| Q6-30-722-65 | 30 | 65 | 0710×6 | 0913×5 | |||
| Q5-30-722-65 | 30 | 65 | 0710×5 | Q8-38-722-50 | 38 | 50 | 0710×2 |
| Q5-32-722-60 | 32 | 60 | 0711×2 | 0812×6 | |||
| 0812×3 | Q8-38-722-80 | 38 | 80 | 0710×2 | |||
| Q6-32-722-60 | 32 | 60 | 0711×6 | 0812×6 | |||
| Q7-32-722-50 | 32 | 50 | 0710×7 | Q6-40-722-60 | 40 | 60 | 0812×2 |
| Q7-32-722-55 | 32 | 55 | 0710×7 | 0913×4 | |||
| Q7-32-722-60 | 32 | 60 | 0710×7 | Q7-40-722-50 | 40 | 50 | 0812×2 |
| Q7-32-722-71 | 32 | 71 | 0710×7 | 0913×5 | |||
| Q7-32-722-80 | 32 | 80 | 0710×7 | Q7-40-722-60 | 40 | 60 | 0812×2 |
| Q8-32-722-71 | 32 | 71 | 0710×8 | 0913×5 | |||
| Q9-32-722-55 | 32 | 55 | 0710×9 | Q7-40-722-71 | 40 | 71 | 0812×2 |
| Q7-33-722-55 | 33 | 55 | 0710×7 | 0913×5 | |||
| Q7-33-722-80 | 33 | 80 | 0710×7 | Q7-40-722-80 | 40 | 80 | 0812×2 |
| Q8-33-722-80 | 33 | 80 | 0710×8 | 0913×5 | |||
| Q9-33-722-71 | 33 | 71 | 0710×8 | Q8-40-722-60 | 40 | 60 | 0812×2 |
| Q6-34-722-60 | 34 | 60 | 0710×6 | 0913×6 | |||
| Q7-34-722-60 | 34 | 60 | 0710×7 | Q7-41-722-50 | 41 | 50 | 0812×2 |
| Q8-34-722-60 | 34 | 60 | 0710×8 | 0913×5 | |||
| Q8-34-722-71 | 34 | 71 | 0710×8 | Q7-41-722-80 | 41 | 80 | 0812×2 |
| Q8-34-722-80 | 34 | 80 | 0710×8 | 0913×5 | |||
| Q9-34-722-71 | 34 | 71 | 0710×9 | Q6-42-722-50 | 42 | 50 | 0812×2 |
| Q7-35-722-50 | 35 | 50 | 0710×2 | 0913×4 |
Our Small drill Bits:
1.Diameter from 24mm to 48mm
2.Tapered degree: 4°46’, 6°, 7°, 11°, 12°
3.Shank size: Hex 19, Hex 22, Hex 25mm
4.Carbide button numbers from 4 buttons to 9 buttons( bit diameter from 24mm to 48mm)
Advantages of our small drill bits:
1.Carbide buttons with good abrasion resistance performance(YK05 or T6)
2.Suitable steel material as skirt according to different aplications(Such as 35 CrNiMov, 45CrNiMov, 40Cr and so on)
3.Hot press the carbide button bits in skirt to provide reliable performance
4. safe package in wooden box
5.Competitive price and fast delivery
We are professional in selecting the type of bits, such as button configuration, tapered degree, diameter, and so on. Please let us know the details of the application, in this case we will let you get the most appropriate products.
