Product Details:
|
| Material: | Tungsten Carbide + Cast Steel | Type: | Sugar Cane Harvester Base Cutters |
|---|---|---|---|
| Application: | Agriculture Wear Parts | ISO Grade: | G20 |
| Hardness: | HV30 1500 | TRS: | 2800 |
| Density: | 14.65 | ||
| High Light: | 2800 TRS Carbide Wear Parts,Carbide Wear Parts Beet,ISO 9001 Carbide Wear Parts |
||

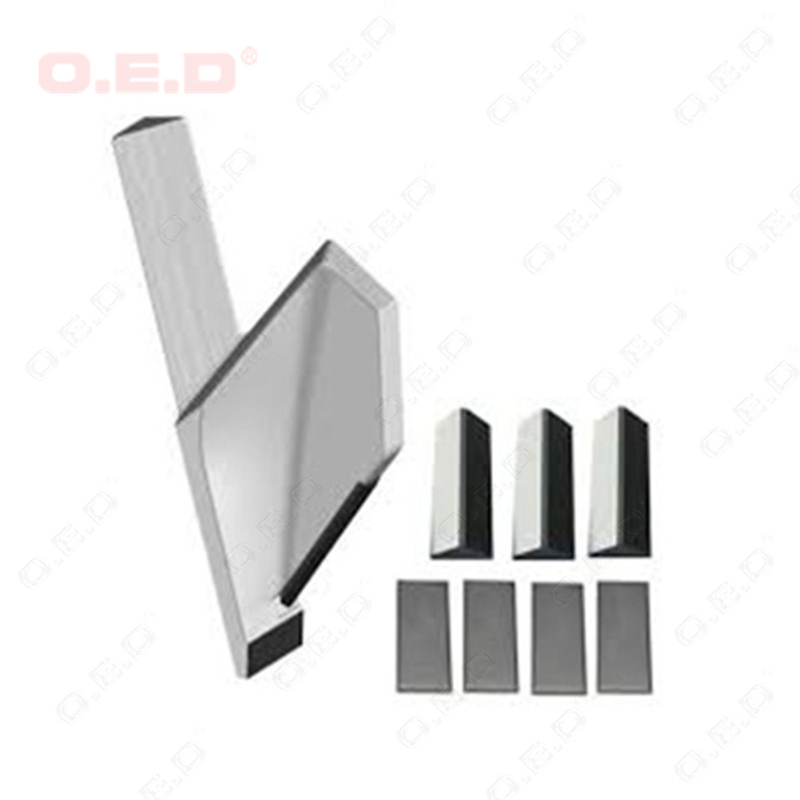

Carbide Beet Harvester Turbine Tines Tungsten Agriculture Wear Parts
How to solve the wear resistance of agricultural tools is a very important problem. Because agricultural tools are in constant contact with the ground, parts of the product are prone to wear and tear. And the soil composition is different in each region, according to different soils need to choose the right hard gold number, in order to achieve the best performance.

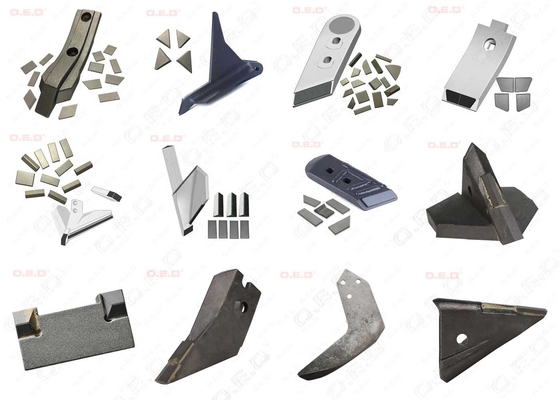

Our products range of agriculture wear parts:
Why choose us for agriculture wear parts:
Recommended carbide grades of agriculture wear parts:
| Application Code |
Chemical Composition | Physical Properties of powder |
Physical and mechanical properties and mirco structure as stintered |
Application recommended | ||||||||
| Co | Tic/ TacNbc |
WC | Hall Flow | Apparent density |
Density | Hardness | Transverse rupture strength |
Coercivity | Magnetic saturation |
Porosity | ||
| s/25cm3 | g/cm3 | g/cm3 | HV 30 | N/mm2 | KA/m | % | ||||||
| G05 | 6 | 94 | 35 | 3.45 | 14.9 | 1370-1490 | ≥2300 | 11.3-12.6 | 5.5-5.9 | A02 B00 | For drilling soft or medium hard rock formation with a single-zxis compression strength less than 60 Mpa | |
| 7.5 | 92.5 | 35 | 3.45 | 14.78 | 1300-1500 | ≥2600 | 9.4-12.5 | 6.6-7.5 | A02 B00 | |||
| G10 | 8.3 | 91.7 | 36 | 3.4 | 14.65 | ≥1500 | ≥2000 | 7.6-9.6 | 7.1-8.2 | A02 B02 | For drilling soft or medium hard rock formation with a single-zxis compression strength of60-120 Mpa | |
| 9.5 | 90.5 | 36 | 3.55 | 14.52 | 1155-1275 | ≥2400 | 6.6-7.4 | 8.6-9.5 | A02 B02 | |||
| G20 | 10 | 0.5 | 89.5 | 35 | 3.39 | 14.51 | ≥1100 | ≥2550 | 6.0-8.0 | 8.8-9.8 | A02 B02 | For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa |
| 11.5 | 88.5 | 36 | 3.4 | 14.3 | ≥1050 | ≥2400 | 6.0-8.0 | 9.5-11.4 | A02 B00 | |||
| G30 | 13 | 87 | 35 | 3.35 | 14.22 | ≥980 | ≥2500 | 5.5-7.0 | 11.7-13.0 | A02 B02 | For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa | |
| 11 | 89 | 36 | 3.45 | 14.39 | 1060-1170 | ≥2110 | 5.3-6.1 | 9.9-11.0 | A02 B02 | |||
| G40 | 15 | 85 | 37 | 3.15 | 14 | 950-1100 | ≥2160 | 4.8-6.3 | 13.5-15.0 | A02 B02 | For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa | |
| 16.5 | 83.5 | 37 | 3.13 | 13.9 | ≥880 | ≥2640 | 4.8-6.4 | 14.1-16.4 | A02 B02 | |||
| G50 | 20 | 80 | 37 | 3.13 | 13.5 | ≥760 | ≥2480 | 3.5-4.5 | 17.0-19.8 | A02 B02 | For drilling hard or super hard rock formation with a single axis compression strength higher than 200 Mpa | |
| G60 | 25 | 75 | 39 | 3.15 | 13.12 | 830-870 | ≥2650 | 4.0-4.6 | 20.0-25 | A04 B02 | ||
