Product Details:
|
Material: | Tungsten Carbide + Cast Steel | Type: | Carbide Plows |
---|---|---|---|
Application: | Agriculture Wear Parts | ISO Grade: | G20 |
Hardness: | HV30 1500 | TRS: | 2800 |
Density: | 14.65 | ||
High Light: | Welding Agricultural Wear Parts,OED Agricultural Wear Parts,Carbide Snow Plow Blade |

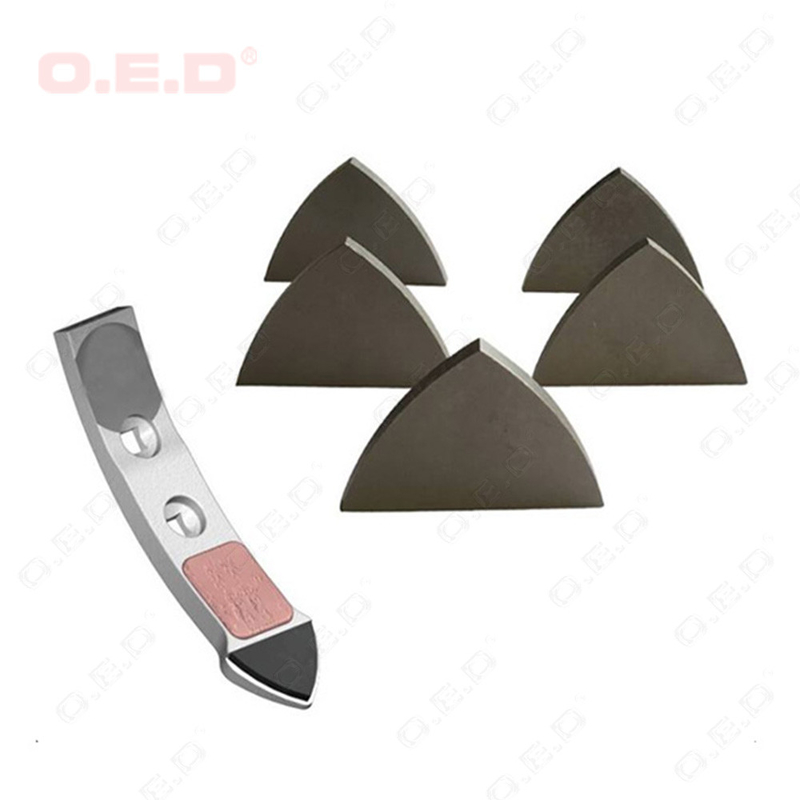

Tungsten Carbide Plows For Agriculture Wear Parts
Welding carbide wear-resistant parts to the main body of steel is a very effective way to achieve longer operating life and performance. In addition to extending service life, it also helps reduce downtime and save farm time and money, as equipment does not require frequent maintenance.
Our common products are as follows:
Seed drills, subsoil machines, tillers, plows, silt sprinklers, lawn mowers, root harvesters, sugar cane harvesters, buckets, spiral drills and scrapers.

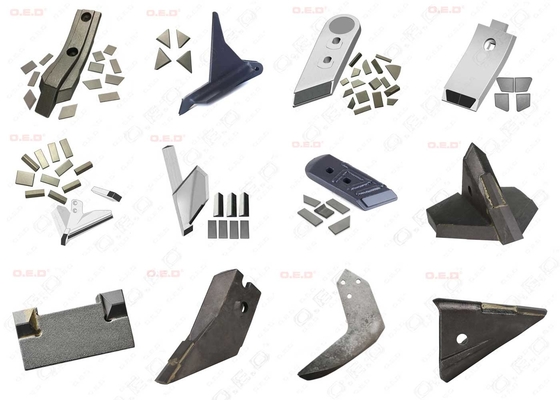

Our products range of agriculture wear parts:
Why choose us for agriculture wear parts:
Grades
Grade | Binder content |
Hardness (HRA) |
Density (g/cm3) |
T.R.S (MPa) |
Description |
YG6 |
6%Co |
91 |
14.6-15.0 |
1600 |
The highest wear resistance makes this an excellent general-purpose grade for use in pumps and valve |
YG8 |
8%Co |
89 |
14.4-14.8 |
1800 |
With better shock resistance than YG6, this grade is typically used as a mining grade where toughness and abrasion resistance are also important .it has also proven useful in bearing applications |
YG6x |
6%Co |
92 |
14.6-15 |
1850 |
Sub-micro alloy, high hardness and wear resistance than YG6, little lower toughness than YG8, used in parts where high wear resistance and high toughness are required. |
YG13 | 13%Co | 90.5 | 14.1-14.5 | 1950 | high toughness and hardness grade. |
YG15 | 15% | 91.0 | 14.0-14.2 | 2450 | high toughness and hardness grade. |
