Product Details:
|
| Material: | Tungsten Carbide | ISO GRADE: | G20 |
|---|---|---|---|
| Application: | Carbide Valve Ball | Type: | Oil/Gas Wear Parts |
| Hardness: | HRA 90.1 | TRS: | 3800 |
| Density: | 14.2 | ||
| Highlight: | Corrosion Resistance Tungsten Carbide Valve Seat,Tungsten Carbide Valve Seat Ball |
||

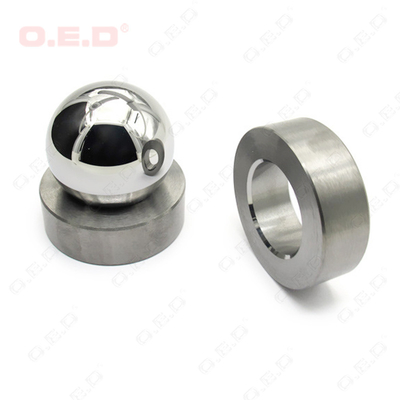

Carbide Corrosion Resistance Valve Seat And Ball For Oil Gas Fields
Hard metal ball valve or hard metal ball valve is a further development of traditional plug valve.
The opening and closing part is a sphere, and the purpose of opening and closing is realized by the sphere around the axis of the valve stem. Widely used in oil wells and deep-sea drilling, the pump valve ball and ball seat are also one of the key components of the pump.
Due to the extremely working environment and conditions of the petroleum drilling industry, sand wells, heavy oil wells, and high-pressure oil repellent wells usually contain water, various gases, wax, sand and other highly corrosive substances required by oil wells.
Cobalt Binder Grades
| Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90 | 1520 |
| YG6X | 6 | 14.9 | 91 | 1450 |
| YG6A | 6 | 14.9 | 92 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88 | 1810 |
| YG15 | 15 | 14 | 87 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84 | 2550 |
Nickel Binder Grades
| Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
