Product Details:
|
| Material: | Tungsten Carbide | ISO GRADE: | G20 |
|---|---|---|---|
| Application: | Oil/Gas Wear Parts | Type: | Punching Head |
| Hardness: | HRA 90.5-92 | TRS: | 1800-3800 |
| Density: | 14.5-15.2 | ||
| High Light: | Tungsten Carbide Rings HRA 91.5,Oil Gas Tungsten Carbide Rings,1600 TRS Tungsten Carbide Rings |
||

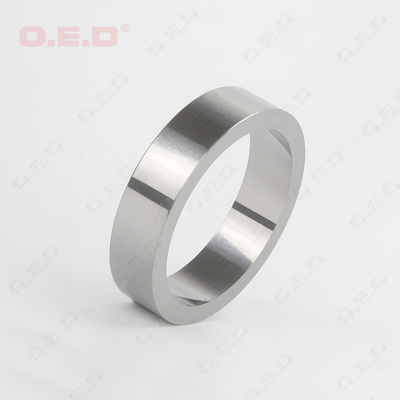

Tungsten Carbide Wear Rings For Oil Gas Wear Parts Carbide Protection Rings
Material: YG6, Co 6%
Hardness: HRA 91.5
TRS; 1600
Outer diameter 32mm
Inner Diameter 30mm
Height 8mm
Carbide wear ring/bush as protection wear parts in well drlling.
Compared with silicon carbide rings, cemented carbide rings have more stable chemical properties such as good wear resistance, high thermal conductivity, low friction coefficient, small expansion coefficient, acid resistance, alkali resistance, self-lubricity, corrosion resistance,
Cobalt Binder Grades
| Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90 | 1520 |
| YG6X | 6 | 14.9 | 91 | 1450 |
| YG6A | 6 | 14.9 | 92 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88 | 1810 |
| YG15 | 15 | 14 | 87 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84 | 2550 |
Nickel Binder Grades
| Grade | Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
