KU30F Tungsten Carbide EDM Block For Molding Punching Tools 10% Cobalt

Large Image : KU30F Tungsten Carbide EDM Block For Molding Punching Tools 10% Cobalt

Product Details:

Place of Origin:	China
Brand Name:	OED/OEM is available
Certification:	ISO9001:2015
Model Number:	Carbide block

Payment & Shipping Terms:

Minimum Order Quantity:	Small qty of amples are available.
Price:	negotiable
Packaging Details:	plastic box/box + Cartons
Delivery Time:	Standard products in one week, special tools in 45 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000kgs per month

Contact Now

KU30F Tungsten Carbide EDM Block For Molding Punching Tools 10% Cobalt

Description

Material:	Tungsten Carbide	Applicatin:	Carbide EDM Block
ISO Grade:	KU30F	Length:	150
Width:	100	Thickness:	50
TRS:	3800	Hardness:	HV 1620
Density:	14.42
High Light:	Tungsten Carbide EDM Block , KU30F Tungsten Carbide EDM Block , 10% Cobalt Molding Carbide Block

KU30F Tungsten Carbide EDM Block for molding punching tools 10% Cobalt

KU30F DATASHEET

Cobalt 10%

Density 14.4

T.R.S ≥3800

Hardness HV 1620

Grain size 0.6μm

Standard size EDM block:

Specification (LXW) Size	Tolerance	Thickness and Tolerance					Finished Ground Tolerance
Specification (LXW) Size	Tolerance	1.5~3	5~10	10~30	30~40	40~70	Finished Ground Tolerance
100x100	+2.0	+0.5	+0.5	+0.5	+0.5	+0.5	±0.02
100x100	0	+0.2	+0.2	+0.3	+0.3	+0.3	±0.02
105 x105	+2.0	+0.5	+0.5	+0.5	+0.5	+0.5	±0.02
105 x105	0	+0.2	+0.2	+0.3	+0.3	+0.3	±0.02
110x110	+3.0	+0.5	+0.5	+0.5	+0.5	+0.5	± 0.02
110x110	0	+0.2	+0.2	+0.3	+0.3	+0.3	± 0.02
120 x120	+3.0	+0.5	+0.5	+0.7	+0.7	+0.7	±0.02
120 x120	0	+0.2	+0.2	+0.4	+0.5	+0.5	±0.02
150x150	+5.0	+0.5	+0.5	+0.7	+0.7	+0.7	±0.02
150x150	0	+0.2	+0.2	+0.4	+0.5	+0.5	±0.02
200x200	+8.0	+0.5	+0.5	+0.8	+0.8	+0.8	± 0.02
200x200	0	+0.2	+0.2	+0.4	+0.5	+0.5	± 0.02
250 x250	+10.0 0	-	-	+0.5/+1.0	+0.5/+1.0	-	±0.5
300 x300	+10.0 0	-	-	+0.5/+1.0	+0.5/+1.0	-	±0.5

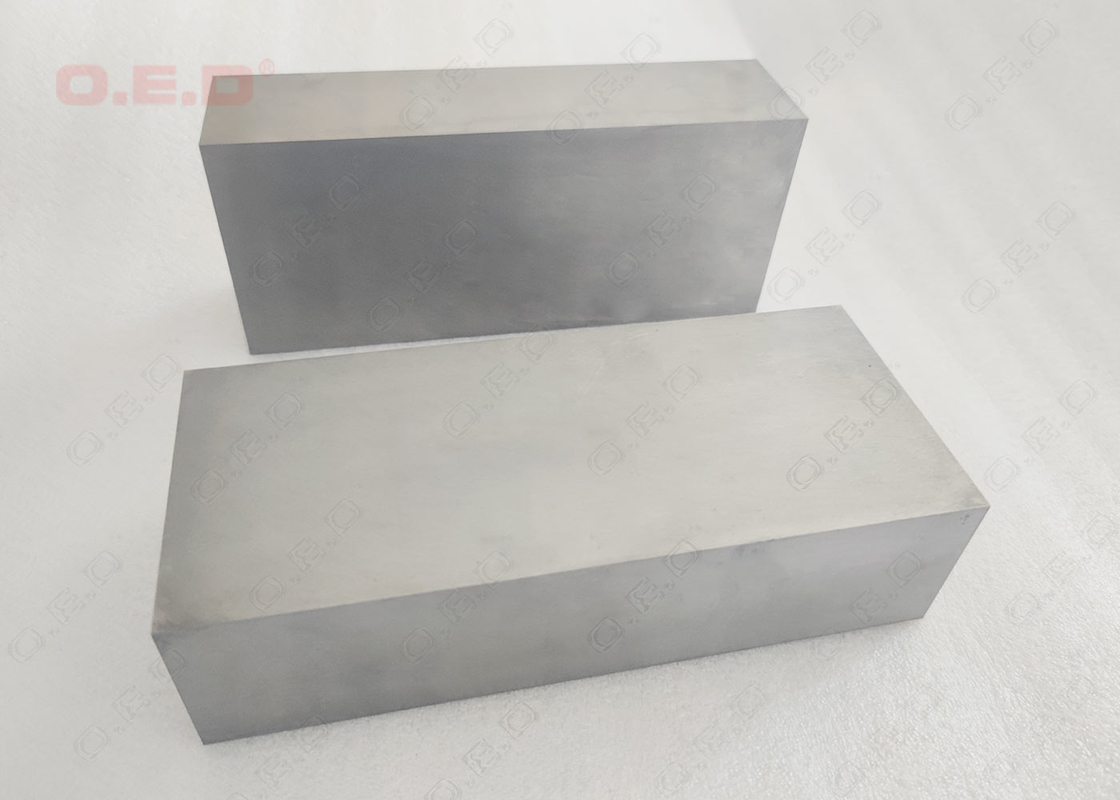

KU30F Tungsten Carbide EDM Block For Molding Punching Tools 10% Cobalt 0
