Product Details:
|
Material: | K20 | Hardness: | HRA 91.5 |
---|---|---|---|
T.R.S: | 2800 | Denstiy: | 15.0 |
Hardness HV30: | 1600 | Roughness: | Ra 0.2 |
Circularity: | 0.05 | Inner Dia: | 0.8 |
High Light: | Polished Spray Carbide Nozzles,K20 Cemented Carbide Nozzles,HRA 91.5 Spray Carbide Nozzles |

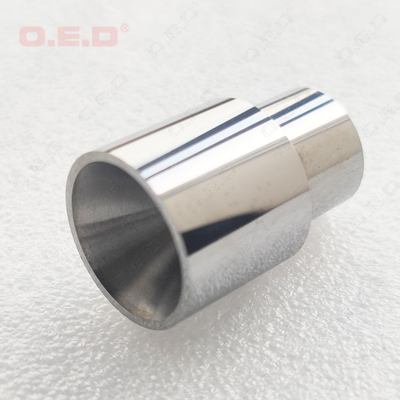

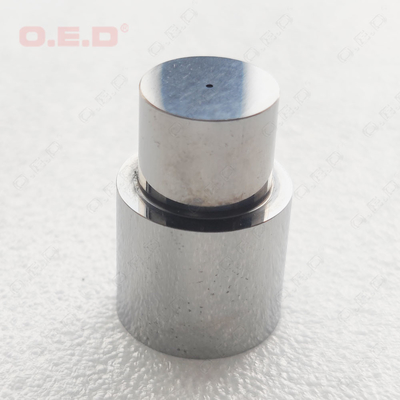

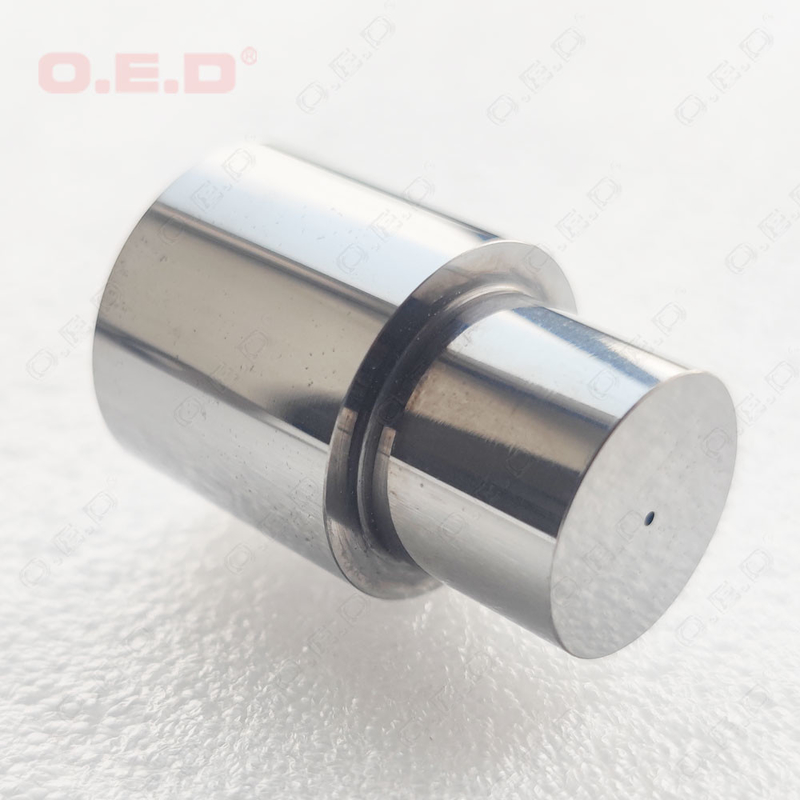

Polished High Hardness Spray Carbide Nozzles K20 Cemented Carbide Nozzles
Description:
With HV30 1800 hardness and T.R.S 2500, the carbide nozzles are well used in many industries.
Such as slurry nozzles for cleaning. Spraying cutting nozzles.
Specifications:
OD 25mm +0.05
ID 0.8 +0.1
Thickness 27mm
The surface roughness Ra 0.05
Carbide grade OK20
Cobalt 8%
Density 14.7
Hardness HV30 1800
T.R.S 2500
