Product Details:
|
| Material: | Tungsten Carbide | Applicatin: | Carbide Ground Plate |
|---|---|---|---|
| ISO Grade: | OK10F | Length: | 195 |
| Width: | 45 | Thickness: | 2 |
| TRS: | 2800 | Hardness: | HRA 92 |
| Density: | 15.10 | ||
| High Light: | OK10F Tungsten Carbide Plate,Polished Bevel Tungsten Carbide Plate,HRA 92 Tungsten Carbide Sheet |
||

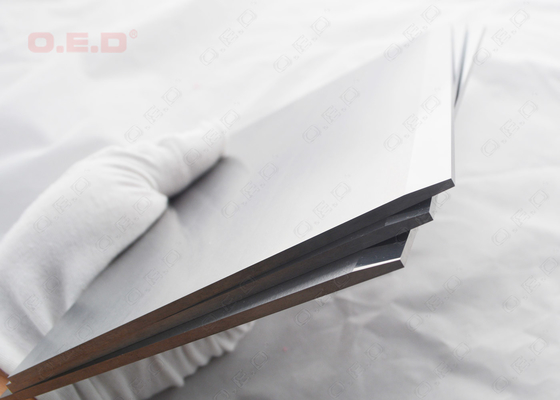

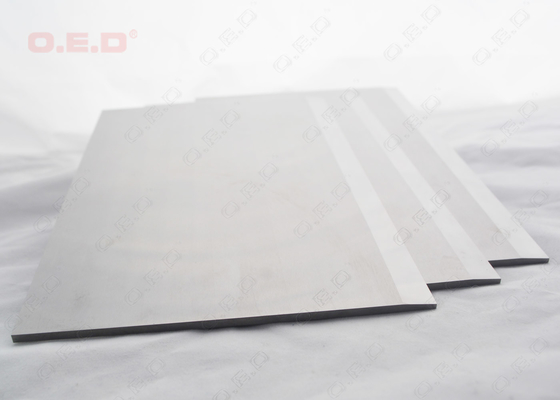

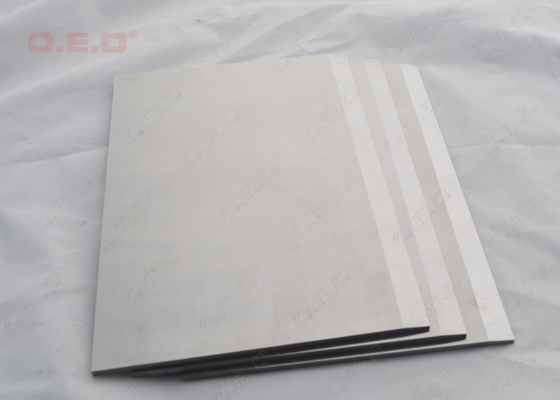

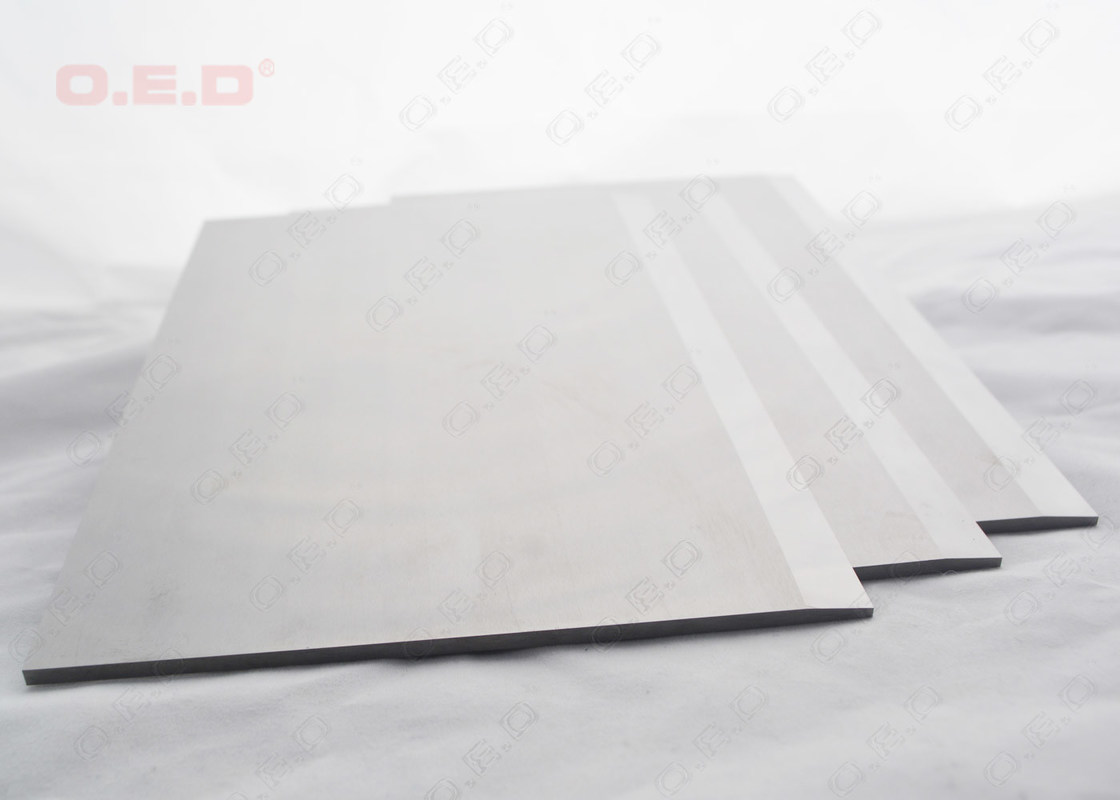

OK10F tungsten carbide plate with one polished bevel hardness HRA 92
Carbide plate with bevel
Length 195mm +0.2
Width 45mm +0.2
Thickness 2mm +0.05mm
Bevel polished to Ra 0.2
Other surfaces Ra 0.8
Grade for OK10F
Cobalt 6%
Density 15.1
Hardness HRA 92
TRS 2800
| Corrosion resistant grades | Grade | Ni | Density | Hardness | Hardness | T.R.S. | Grain size |
| HRA | HV30 | ||||||
| ON10 | 5.5 | 14.8 | 90.9 | 1480 | ＞1450 | Middle | |
| ON20 | 6 | 14.8 | 90.8 | 1460 | ＞1600 | Middle | |
| ON30 | 7.5 | 14.65 | 90.3 | 1410 | ＞1800 | Middle | |
| ON40 | 9 | 14.55 | 89.2 | 1310 | ＞2150 | Middle | |
| ON50 | 10 | 14.4 | 89 | 1300 | ＞2300 | Middle | |
| ON60 | 11 | 14.2 | 88.5 | 1250 | ＞2450 | Middle | |
| ON70 | 15 | 13.15 | 84.1 | 950 | ＞2650 | Middle |
Grade recommended:
| Wear part grades | Grade | ISO Grade | Co | Density | Hardness | T.R.S. | Grain size |
| OK05UF | K05 | 6.00 | 14.90 | 93.20 | 3000 | Ultra Fine | |
| OK10F | K10-K20 | 6.00 | 14.90 | 92.00 | 2000 | Middle/Fine | |
| OK30M | K30 | 8.00 | 14.80 | 91.50 | 2200 | Fine | |
| OK40F | K40 | 10.00 | 14.45 | 91.90 | 3400 | Middle/Fine | |
| OK50M | K50 | 12.00 | 14.25 | 90.00 | 3500 | Fine | |
| OG30M | G10 | 8.00 | 14.70 | 91.00 | 2100 | Middle | |
| OG60M | G20 | 11.00 | 14.40 | 89.00 | 2400 | Middle | |
| OG70M | G30 | 15.00 | 14.20 | 86.70 | 2800 | Middle | |
| OG80M | G40 | 20.00 | 13.65 | 85.00 | 3000 | Middle | |
| OG90M | G50 | 25.00 | 13.20 | 84.20 | 3200 | Middle |
