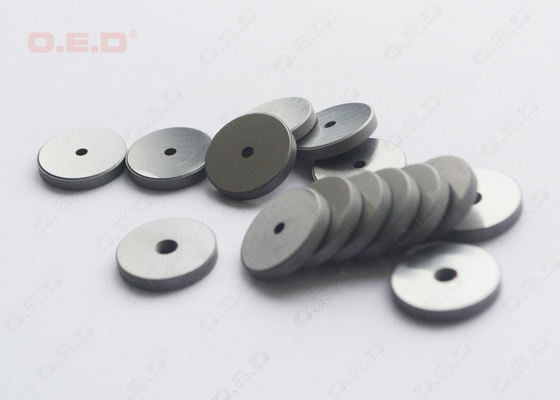

Ground Tungsten Carbide G10 Nozzles Plate With Hole YG8 Round Plate For Spraying

Ground Tungsten Carbide G10 Nozzles Plate With Hole YG8 Round Plate For Spraying
Ground Tungsten Carbide G10 Nozzles Plate With Hole YG8 Round Plate For Spraying Ground Tungsten Carbide G10 Nozzles Plate With Hole YG8 Round Plate For Spraying Ground Tungsten Carbide G10 Nozzles Plate With Hole YG8 Round Plate For Spraying

Large Image :  Ground Tungsten Carbide G10 Nozzles Plate With Hole YG8 Round Plate For Spraying

Product Details:
Place of Origin: China
Brand Name: OED/OEM
Certification: ISO9001:2015
Model Number: Carbide spraying nozzles
Payment & Shipping Terms:
Minimum Order Quantity: Small qty of amples are available.
Price: negotiable
Packaging Details: plastic box/box + Cartons
Delivery Time: Standard products in one week, special tools in 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000kgs per month

Ground Tungsten Carbide G10 Nozzles Plate With Hole YG8 Round Plate For Spraying

Description
Material: YG8 Applicatin: For Spraying Application
ISO Grade: G20 OD: 18
ID: 2.3 Thickness: 3
TRS: 2800 Hardness: HV30 1600
Density: 14.52
High Light:

Tungsten Carbide G10 Nozzles Plate

,

Hole G10 Nozzles Plate

,

YG8 Round Plate

Ground Tungsten Carbide G10 Nozzles Plate With Hole YG8 Round Plate For Spraying



Specifications:

Outer diameter 19.3mm -0.2mm

Inner diameter 2.3mm

Thickness 3mm -0.1

Chamfer 0.5*45°



G10 datasheet

Cobalt 8%

WC + other 92%

Density 14.52

TRS ≥2000

Hardness HV30 1500



Tungsten carbide nozzle plates are used for sandblasting and other spray applications.

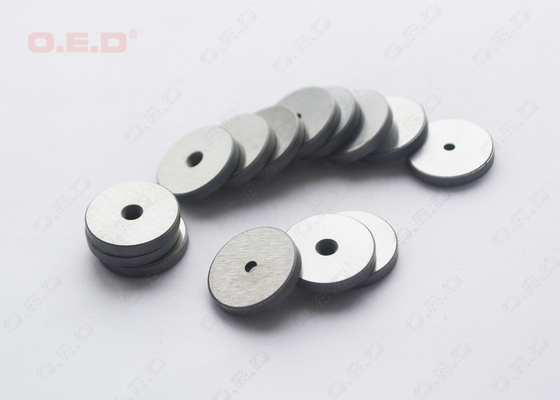

Ground Tungsten Carbide G10 Nozzles Plate With Hole YG8 Round Plate For Spraying 0




Regular Carbide Grades:



Wear part grades Grade ISO Grade Co Density Hardness T.R.S. Grain size
OK05UF K05 6.00 14.90 93.20 3000 Ultra Fine
OK10F K10-K20 6.00 14.90 92.00 2000 Middle/Fine
OK30M K30 8.00 14.80 91.50 2200 Fine
OK40F K40 10.00 14.45 91.90 3400 Middle/Fine
OK50M K50 12.00 14.25 90.00 3500 Fine
OG30M G10 8.00 14.70 91.00 2100 Middle
OG60M G20 11.00 14.40 89.00 2400 Middle
OG70M G30 15.00 14.20 86.70 2800 Middle
OG80M G40 20.00 13.65 85.00 3000 Middle
OG90M G50 25.00 13.20 84.20 3200 Middle



Corrosion resistance grades:

Corrosion-resistant grades Grade Ni+Co Density Hardness Hardness T.R.S. Grain size
HRA HV30
ON10 5.50 14.80 90.90 1,480 >1450 Middle
ON20 6.00 14.80 90.80 1,460 >1600 Middle
ON30 7.50 14.65 90.30 1,410 >1800 Middle
ON40 9.00 14.55 89.20 1,310 >2150 Middle
ON50 10.00 14.40 89.00 1,300 >2300 Middle
ON60 11.00 14.20 88.50 1,250 >2450 Middle
ON70 15.00 13.15 84.10 950 >2650 Middle

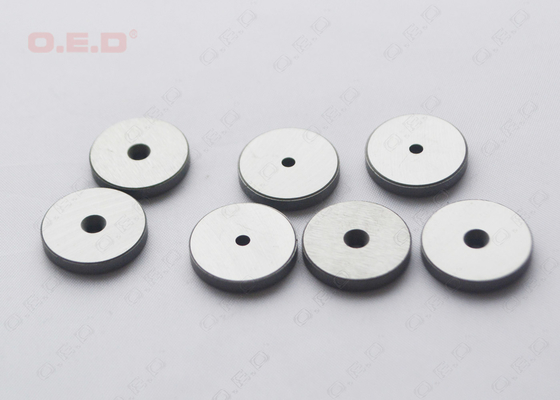

Ground Tungsten Carbide G10 Nozzles Plate With Hole YG8 Round Plate For Spraying 1Ground Tungsten Carbide G10 Nozzles Plate With Hole YG8 Round Plate For Spraying 2
