Product Details:
|

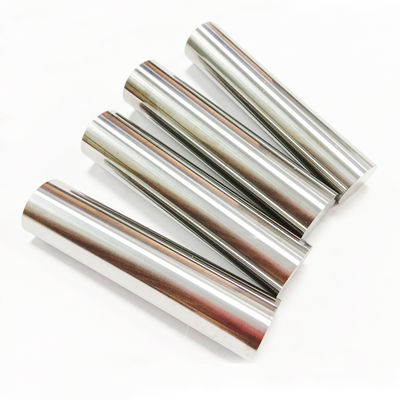

Material: | Tungsten Carbide | Application: | Carbide Rods |
---|---|---|---|
ISO Grade: | K30 | Cobalt: | 12% Cobalt |
Hardness: | HRA 92.3 | TRS: | 4400 |
Density: | 14.1 | Grain Size: | Sub-fine |
Length: | 100mm | OD: | OD14.00 |
High Light: | 12% Cobalt Ground Carbide Rods,Kic 10 Ground Carbide Rods,Heat Resistant Steel Tungsten Carbide Rods |
Outer Diameter: 18.0mm
Tolerance of OD -0.011
Length: 80mm
Tolerance of Length:+0.5
Roughness: Ra0.2 or Ra 0.05 polished
Recommended application:
Steels
Corrosion and heat resistant steel
Stainless steels
Non-ferrous metals
Titanium alloys
General tolerance for the h6 finished ground solid carbide rods | ||||||||||
Diameter | Tolerance μm | Length | Tolerance | Straightness | Tolerance | Circularity | Tolerances | |||
<3.0 | -6/0 | <100.0 | +0.5/+1.0 | <4.0 | 0.07 | <3,0 | 2,0 micron | |||
3.0-6.0 | -8/0 | 100.0-165.0 | +1.0/+2.5 | 4.5-5.0 | 0.06 | 3,0- 6,0 | 2,5 micron | |||
6.0-1.0 | -9/0 | 165.0-335.0 | +1.0/+6.0 | 5.5-12 | 0.05 | 6,1-10,0 | 3,0 micron | |||
10.0-18.0 | -11/0 | >12.5 | 0.04 | 10,1-18,0 | 3,5 micron | |||||
18.0-30.0 | -13/0 | 18,1- 30,0 | 4,0 micron | |||||||
30.0-50.0 | -16/0 | 30,1- 50,0 | 5,0 micron |
General tolerance for the h5 finished ground solid carbide rods | ||||||||||
Diameter | Tolerance μm | Length | Tolerance | Straightness | Tolerance | Circularity | Tolerances | |||
<3.0 | -4/0 | <100.0 | +0.5/+1.0 | <4.0 | 0.07 | <3,0 | 2,0 micron | |||
3.0-6.0 | -5/0 | 100.0-165.0 | +1.0/+2.5 | 4.5-5.0 | 0.06 | 3,0- 6,0 | 2,5 micron | |||
6.0-1.0 | -6/0 | 165.0-335.0 | +1.0/+6.0 | 5.5-12 | 0.05 | 6,1-10,0 | 3,0 micron | |||
10.0-18.0 | -8/0 | >12.5 | 0.04 | 10,1-18,0 | 3,5 micron | |||||
18.0-30.0 | -9/0 | 18,1- 30,0 | 4,0 micron | |||||||
30.0-50.0 | -11/0 | 30,1- 50,0 | 5,0 micron |
OED Carbide grades for Rods
OEDF06 | OEDU06 | OEDU08E | OED10A | OED10.2 | OED10D | OEDU12 | ||
ISO range | K05-K10 | K05-K10 | K05-K10 | K20-K30 | K20-K30 | K30-K40 | K30-K40 | |
WC+other | % | 93.7 | 93 | 92 | 91 | 89.4 | 86.5 | 86.5 |
Co | % | 6 | 6 | 8 | 8 | 10 | 12 | 12 |
WC grain size | μm | 0.6 | 0.4 | 0.4 | 0.8 | 0.6 | 0.6 | 0.4 |
density | g/㎝³ | 14.9 | 14.75 | 14.62 | 14.65 | 14.42 | 14.15 | 14.05 |
hardness | Hv30 | 1850 | 1890 | 1850 | 1700 | 1620 | 1700 | 1750 |
HRA | 93.5 | 93.8 | 93.5 | 92.5 | 92.2 | 92.5 | 92.8 | |
transverse rupture strength | N/mm² | 3800 | 3000 | 4000 | 3000 | 4200 | 4000 | 4200 |
Metallograph |
Grade recommendation.
Non-coated Grade | Application | |||||||
6% Co | Reamer, for machining grey cast iron nonferrous metal, hardening steel, chilled iron, with high wear resistance. | |||||||
8% Co | Drills and taps, for machining grey cast iron, nonferrous metal, with good wear resistance. | |||||||
10% Co | It's widely used for milling tools, good performance of wearability bending strength, and toughness. | |||||||
12% Co | High-speed milling tools, for machining steel and high silicon-aluminum alloy, with perfect wear resistance, bending strength, and toughness. | |||||||
The other grades are available. Please let us know the usage and workpiece, then we can recommend the most suitable grade for you. |
Our advantages:
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.
The internal stress can be removed through the cryogenic process to improve the microstructure.
The internal stress can be removed through the vibration process to improve the overall performance.
The service can be improved through the heat treatment process.
CIP forming.
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.
