K40 Finished Ground Ra 0.05 Tungsten Carbide Rods For Making Endmills

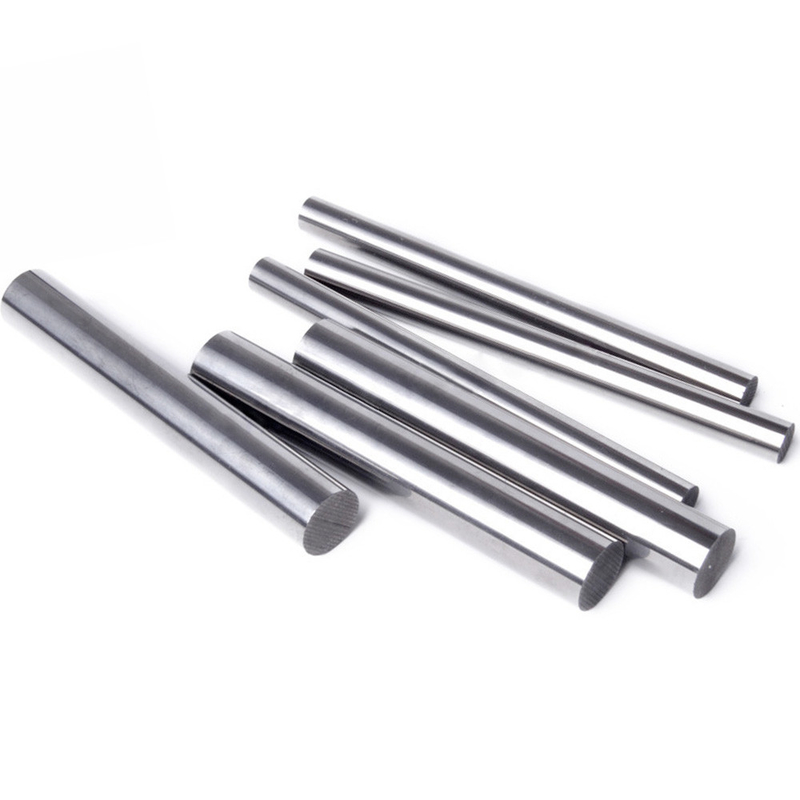

Large Image : K40 Finished Ground Ra 0.05 Tungsten Carbide Rods For Making Endmills

Product Details:

Place of Origin:	China
Brand Name:	OED or OEM
Certification:	ISO 9001: 2008
Model Number:	Carbide Rods

Payment & Shipping Terms:

Minimum Order Quantity:	Small qty of amples are available.
Price:	$38-$78/kg
Packaging Details:	plastic box/+ Cartons
Delivery Time:	Standard products in one week, special tools in 45 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000kgs per month

Contact Now

K40 Finished Ground Ra 0.05 Tungsten Carbide Rods For Making Endmills

Description

Material:	Tungsten Carbide	Application:	Carbide Rods
ISO Grade:	K40	Hardness:	HRA 91.9
TRS:	3800	Density:	14.45
Tolerance:	ISO 2768 F	Grain Size:	0.8
High Light:	Ra 0.05 Tungsten Carbide Rods , K40 Finished Ground Tungsten Carbide Rods , Endmills Ground Carbide Rod

Tungsten Carbide K40 Cut To Length Finished Ground Ra 0.05 Rods For Making Endmills

Dimension:

OD 4mm

Length 50/80/120/150mm

Roughness Ra 0.05

Straightness 0.02

Material:

K40UF

Cobalt 10%

Grain size 0.8

Hardness HRA 91.9

T.R.S 3800

Carbide solid rod is the most regular carbide rod, OED solid rod with stable quality, competitive prices can provide our customers with very good support. It's good for machining grey cast iron nonferrous metal, hardening steel, chilled iron, with high wear resistance.

Our Regular rods can be shipped within 3 days and finished ground rods can be shipped in 7 days.

The standard size of inch cut-to-length rods:

Diameter (inch)		Length (inch)		Stock status •
Diameter (inch)		Length (inch)		OED10A	OED10.2	OED10D	OEDU12
D	D	Length	Tol.	Order by stock article
3/64	0.0469	13-1/4	0/+0.2	IN-1014- 3/64FG	IN-2014- 3/64FG •	IN-3014- 3/64FG	IN-4014- 3/64FG
1/16	0.0625	13-1/4	0/+0.2	IN-1014- 1/16FG	IN-2014- 1/16FG •	IN-3014- 1/16FG	IN-4014- 1/16FG
5/64	0.0781	13-1/4	0/+0.2	IN-1014- 5/64FG	IN-2014- 5/64FG •	IN-3014- 5/64FG	IN-4014- 5/64FG
3/32	0.0938	13-1/4	0/+0.2	IN-1014- 3/32FG	IN-2014- 3/32FG •	IN-3014- 3/32FG	IN-4014- 3/32FG
7/64	0.1094	13-1/4	0/+0.2	IN-1014- 7/64FG	IN-2014- 7/64FG •	IN-3014- 7/64FG	IN-4014- 7/64FG
1/8	0.1250	13-1/4	0/+0.2	IN-1014- 1/8 FG	IN-2014- 1/8 FG •	IN-3014- 1/8 FG	IN-4014- 1/8 FG
9/64	0.1406	13-1/4	0/+0.2	IN-1014- 9/64FG	IN-2014- 9/64FG •	IN-3014- 9/64FG	IN-4014- 9/64FG
5/32	0.1563	13-1/4	0/+0.2	IN-1014- 5/32FG	IN-2014- 5/32FG •	IN-3014- 5/32FG	IN-4014- 5/32FG
11/64	0.1719	13-1/4	0/+0.2	IN-1014- 11/64FG	IN-2014- 11/64FG •	IN-3014- 11/64FG	IN-4014- 11/64FG
3/16	0.1875	13-1/4	0/+0.2	IN-1014- 3/16FG	IN-2014- 3/16FG •	IN-3014- 3/16FG	IN-4014- 3/16FG
13/64	0.2031	13-1/4	0/+0.2	IN-1014- 13/64FG	IN-2014- 13/64FG •	IN-3014- 13/64FG	IN-4014- 13/64FG
7/32	0.2188	13-1/4	0/+0.2	IN-1014- 7/32FG	IN-2014- 7/32FG •	IN-3014- 7/32FG	IN-4014- 7/32FG
15/64	0.2344	13-1/4	0/+0.2	IN-1014- 15/64FG	IN-2014- 15/64FG •	IN-3014- 15/64FG	IN-4014- 15/64FG
1/4	0.2500	13-1/4	0/+0.2	IN-1014- 1/4 FG	IN-2014- 1/4 FG •	IN-3014- 1/4 FG	IN-4014- 1/4 FG
17/64	0.2656	13-1/4	0/+0.2	IN-1014- 17/64FG	IN-2014- 17/64FG •	IN-3014- 17/64FG	IN-4014- 17/64FG
9/32	0.2813	13-1/4	0/+0.2	IN-1014- 9/32FG	IN-2014- 9/32FG •	IN-3014- 9/32FG	IN-4014- 9/32FG
19/64	0.2969	13-1/4	0/+0.2	IN-1014- 19/64FG	IN-2014- 19/64FG •	IN-3014- 19/64FG	IN-4014- 19/64FG
5/16	0.3125	13-1/4	0/+0.2	IN-1014- 5/16FG	IN-2014- 5/16FG •	IN-3014- 5/16FG	IN-4014- 5/16FG
21/64	0.3281	13-1/4	0/+0.2	IN-1014- 21/64FG	IN-2014- 21/64FG •	IN-3014- 21/64FG	IN-4014- 21/64FG
11/32	0.3438	13-1/4	0/+0.2	IN-1014- 11/32FG	IN-2014- 11/32FG •	IN-3014- 11/32FG	IN-4014- 11/32FG
23/64	0.3594	13-1/4	0/+0.2	IN-1014- 23/64FG	IN-2014- 23/64FG •	IN-3014- 23/64FG	IN-4014- 23/64FG
3/8	0.3750	13-1/4	0/+0.2	IN-1014- 3/8 FG	IN-2014- 3/8 FG •	IN-3014- 3/8 FG	IN-4014- 3/8 FG
25/64	0.3906	13-1/4	0/+0.2	IN-1014- 25/64FG	IN-2014- 25/64FG •	IN-3014- 25/64FG	IN-4014- 25/64FG
13/32	0.4063	13-1/4	0/+0.2	IN-1014- 13/32FG	IN-2014- 13/32FG •	IN-3014- 13/32FG	IN-4014- 13/32FG
27/64	0.4219	13-1/4	0/+0.2	IN-1014- 27/64FG	IN-2014- 27/64FG •	IN-3014- 27/64FG	IN-4014- 27/64FG
7/16	0.4375	13-1/4	0/+0.2	IN-1014- 7/16FG	IN-2014- 7/16FG •	IN-3014- 7/16FG	IN-4014- 7/16FG
29/64	0.4531	13-1/4	0/+0.2	IN-1014- 29/64FG	IN-2014- 29/64FG •	IN-3014- 29/64FG	IN-4014- 29/64FG
15/32	0.4688	13-1/4	0/+0.2	IN-1014- 15/32FG	IN-2014- 15/32FG •	IN-3014- 15/32FG	IN-4014- 15/32FG
31/64	0.4844	13-1/4	0/+0.2	IN-1014- 31/64FG	IN-2014- 31/64FG •	IN-3014- 31/64FG	IN-4014- 31/64FG
1/2	0.5000	13-1/4	0/+0.2	IN-1014- 1/2 FG	IN-2014- 1/2 FG •	IN-3014- 1/2 FG	IN-4014- 1/2 FG
33/64	0.5156	13-1/4	0/+0.2	IN-1014- 33/64FG	IN-2014- 33/64FG •	IN-3014- 33/64FG	IN-4014- 33/64FG
17/32	0.5313	13-1/4	0/+0.2	IN-1014- 17/32FG	IN-2014- 17/32FG •	IN-3014- 17/32FG	IN-4014- 17/32FG
35/64	0.5469	13-1/4	0/+0.2	IN-1014- 35/64FG	IN-2014- 35/64FG •	IN-3014- 35/64FG	IN-4014- 35/64FG
9/16	0.5625	13-1/4	0/+0.2	IN-1014- 9/16FG	IN-2014- 9/16FG •	IN-3014- 9/16FG	IN-4014- 9/16FG
37/64	0.5781	13-1/4	0/+0.2	IN-1014- 37/64FG	IN-2014- 37/64FG •	IN-3014- 37/64FG	IN-4014- 37/64FG
19/32	0.5938	13-1/4	0/+0.2	IN-1014- 19/32FG	IN-2014- 19/32FG •	IN-3014- 19/32FG	IN-4014- 19/32FG
39/64	0.6094	13-1/4	0/+0.2	IN-1014- 39/64FG	IN-2014- 39/64FG •	IN-3014- 39/64FG	IN-4014- 39/64FG
5/8	0.6250	13-1/4	0/+0.2	IN-1014- 5/8 FG	IN-2014- 5/8 FG •	IN-3014- 5/8 FG	IN-4014- 5/8 FG
41/64	0.6406	13-1/4	0/+0.2	IN-1014- 41/64FG	IN-2014- 41/64FG •	IN-3014- 41/64FG	IN-4014- 41/64FG
45/64	0.7031	13-1/4	0/+0.2	IN-1014- 45/64FG	IN-2014- 45/64FG •	IN-3014- 45/64FG	IN-4014- 45/64FG
23/32	0.7188	13-1/4	0/+0.2	IN-1014- 23/32FG	IN-2014- 23/32FG •	IN-3014- 23/32FG	IN-4014- 23/32FG
3/4	0.7500	13-1/4	0/+0.2	IN-1014- 3/4 FG	IN-2014- 3/4 FG •	IN-3014- 3/4 FG	IN-4014- 3/4 FG
25/32	0.7813	13-1/4	0/+0.2	IN-1014- 25/32FG	IN-2014- 25/32FG •	IN-3014- 25/32FG	IN-4014- 25/32FG
51/64	0.7969	13-1/4	0/+0.2	IN-1014- 51/64FG	IN-2014- 51/64FG •	IN-3014- 51/64FG	IN-4014- 51/64FG
53/64	0.8281	13-1/4	0/+0.2	IN-1014- 53/64FG	IN-2014- 53/64FG •	IN-3014- 53/64FG	IN-4014- 53/64FG
55/64	0.8594	13-1/4	0/+0.2	IN-1014- 55/64FG	IN-2014- 55/64FG •	IN-3014- 55/64FG	IN-4014- 55/64FG
7/8	0.8750	13-1/4	0/+0.2	IN-1014- 7/8 FG	IN-2014- 7/8 FG •	IN-3014- 7/8 FG	IN-4014- 7/8 FG
29/32	0.9063	13-1/4	0/+0.2	IN-1014- 29/32FG	IN-2014- 29/32FG •	IN-3014- 29/32FG	IN-4014- 29/32FG
15/16	0.9375	13-1/4	0/+0.2	IN-1014- 15/16FG	IN-2014- 15/16FG •	IN-3014- 15/16FG	IN-4014- 15/16FG
61/64	0.9531	13-1/4	0/+0.2	IN-1014- 61/64FG	IN-2014- 61/64FG •	IN-3014- 61/64FG	IN-4014- 61/64FG
63/64	0.9844	13-1/4	0/+0.2	IN-1014- 63/64FG	IN-2014- 63/64FG •	IN-3014- 63/64FG	IN-4014- 63/64FG
1- 1/32	1.0313	13-1/4	0/+0.2	IN-1014-1- 1/32FG	IN-2014-1- 1/32FG •	IN-3014-1- 1/32FG	IN-4014-1- 1/32FG
1- 7/64	1.1094	13-1/4	0/+0.2	IN-1014-1- 7/64FG	IN-2014-1- 7/64FG •	IN-3014-1- 7/64FG	IN-4014-1- 7/64FG
1- 3/16	1.1875	13-1/4	0/+0.2	IN-1014-1- 3/16FG	IN-2014-1- 3/16FG •	IN-3014-1- 3/16FG	IN-4014-1- 3/16FG
1- 17/64	1.2656	13-1/4	0/+0.2	IN-1014-1- 17/64FG	IN-2014-1- 17/64FG •	IN-3014-1- 17/64FG	IN-4014-1- 17/64FG

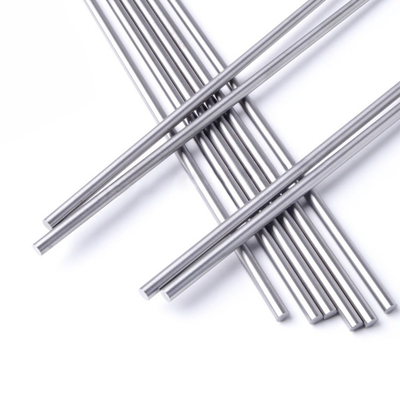

K40 Finished Ground Ra 0.05 Tungsten Carbide Rods For Making Endmills 0

OED Carbide grades for Rods

		OEDF06	OEDU06	OEDU08E	OED10A	OED10.2	OED10D	OEDU12
ISO range		K05-K10	K05-K10	K05-K10	K20-K30	K20-K30	K30-K40	K30-K40
WC+other	%	93.7	93	92	91	89.4	86.5	86.5
Co	%	6	6	8	8	10	12	12
WC grain size	μm	0.6	0.4	0.4	0.8	0.6	0.6	0.4
density	g/㎝³	14.9	14.75	14.62	14.65	14.42	14.15	14.05
hardness	Hv30	1850	1890	1850	1700	1620	1700	1750
HRA		93.5	93.8	93.5	92.5	92.2	92.5	92.8
transverse rupture strength	N/mm²	3800	3000	4000	3000	4200	4000	4200
Metallograph

Grade recommendation.

Non-coated Grade	Application
6% Co	Reamer, for machining grey cast iron nonferrous metal, hardening steel, chilled iron, with high wear resistance.
8% Co	Drills and taps, for machining grey cast iron, nonferrous metal, with good wear resistance.
10% Co	It's widely used for milling tools, good performance of wearability bending strength, and toughness.
12% Co	High-speed milling tools, for machining steel and high silicon-aluminum alloy, with perfect wear resistance, bending strength, and toughness.
The other grades are available. Please let us know the usage and workpiece, then we can recommend the most suitable grade for you.

Our advantages:

CIP forming.

CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.

Cryogenic process

The internal stress can be removed through the cryogenic process to improve the microstructure.

Vibration process

The internal stress can be removed through the vibration process to improve the overall performance.

Heat treatment

The service can be improved through the heat treatment process.

K40 Finished Ground Ra 0.05 Tungsten Carbide Rods For Making Endmills 2

CIP forming.
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.

K40 Finished Ground Ra 0.05 Tungsten Carbide Rods For Making Endmills 4

K40 Finished Ground Ra 0.05 Tungsten Carbide Rods For Making Endmills 5

K40 Finished Ground Ra 0.05 Tungsten Carbide Rods For Making Endmills 6

Why choose us for carbide wear parts:

Professional production equipment. From spray drying towers, extrusion molding, mold molding, injection molding, CIP, HIP sintering furnaces, flat grinders, heartless grinders, round grinders, EMD cutting, polishing machines, etc. OED can provide reliable quality assurance for your products.
The strict control of the production processing. From raw materials, sintering, processing, we will strictly test each process, non-conforming products will not enter the subsequent production.
Proficient technical team. Senior carbide raw materials engineers: To analyze whether the product meets your application requirements. Senior production managers: To study the most suitable for your product processing methods. Skilled technical inspectors: To test whether the finished product meets your drawing requirements.
Reliable service. Not only can we provide pre-sales technical services, but our engineers can also come up with product improvements to provide the most reasonable solution for your product.
Low-cost sample development. For trial orders, such as quantity below 10pcs, our engineer team can help customers to find the solution with mold fees. In this way, our customers can try the samples at a minimized cost.
Fast delivery. Standard products could be delivered in one week, and the special carbide tools could be finished in 25-45 days after confirming the drawings or 3D model.
