Product Details:
|
Material: | Tungsten Carbide YL10.2 | Type: | Engraving Router Bit |
---|---|---|---|
Coating: | None | ISO Grade: | K20 |
Item: | Engraving Router Bit | ØD: | 3 |
L: | 38 | L1: | 16 |
Re: | 0.2 | ||
High Light: | D3.175mm Engraving Router Bit,k20 Engraving Router Bit,Carbide Cutting Tools Router Bit |

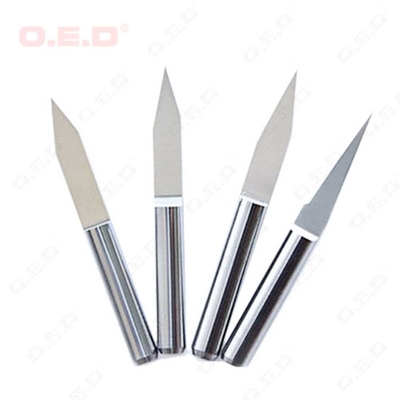

Solid 3.175mm 6mm Tungsten Carbide V Engraving Router Bit For Wood Acrylic Plastic PVC
OED can provide various special end mills, drills, reamers. We can produce it according to your drawings. just feel free to send us your requirements and we'll reply to you in 12 Hours.
Carbide flat V engraving bits
Size D3.175mm, D6mm
Tool Material Tungsten steel
Features Fine Grinding, High precision grinding, and brightness polishing. Sharp, Durable, engraving smooth.
Processing way Engraving, relief, lettering, fine carving
Processing material Hardwood, Solid wood, MDF, density board, two-color board, Acrylic, Plastic, PVC, etc
SIZE | SHANK (mm) | TIP (mm) | ANGLE(°) |
3.175*10*0.1 | 3.175 | 0.1 | 10 |
3.175*10**0.2 | 3.175 | 0.2 | 10 |
3.175*10**0.3 | 3.175 | 0.3 | 10 |
3.175* 20⁹*0.2 | 3.175 | 0.2 | 20 |
3.175*20**0.3 | 3.175 | 0.3 | 20 |
3.175*20**0.4 | 3.175 | 0.4 | 20 |
3.175*20**0.5 | 3.175 | 0.5 | 20 |
3.175* 30⁹*0.1 | 3.175 | 0.1 | 30 |
3.175*30**0.2 | 3.175 | 0.2 | 30 |
3.175* *30⁹*0.3 | 3.175 | 0.3 | 30 |
3.175* 30⁹*0.4 | 3.175 | 0.4 | 30 |
3.175* *30⁹*0.5 | 3.175 | 0.5 | 30 |
3.175*30**0.6 | 3.175 | 0.6 | 30 |
3.175* 30⁹*0.8 | 3.175 | 0.8 | 30 |
3.175 *30⁹*1.0 | 3.175 | 1 | 30 |
3.175*45**0.1 | 3.175 | 0.1 | 45 |
3.175*45*0.2 | 3.175 | 0.2 | 45 |
3.175*45**0.3 | 3.175 | 0.3 | 45 |
3.175*60*0.1 | 3.175 | 0.1 | 60 |
3.175*60*0.2 | 3.175 | 0.2 | 60 |
3.175*60**0.3 | 3.175 | 0.3 | 60 |
Material available:
Solid tungsten carbide
Cermet
Ceramic
Coating or without coating
