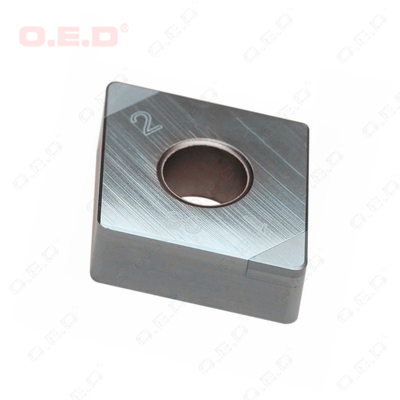

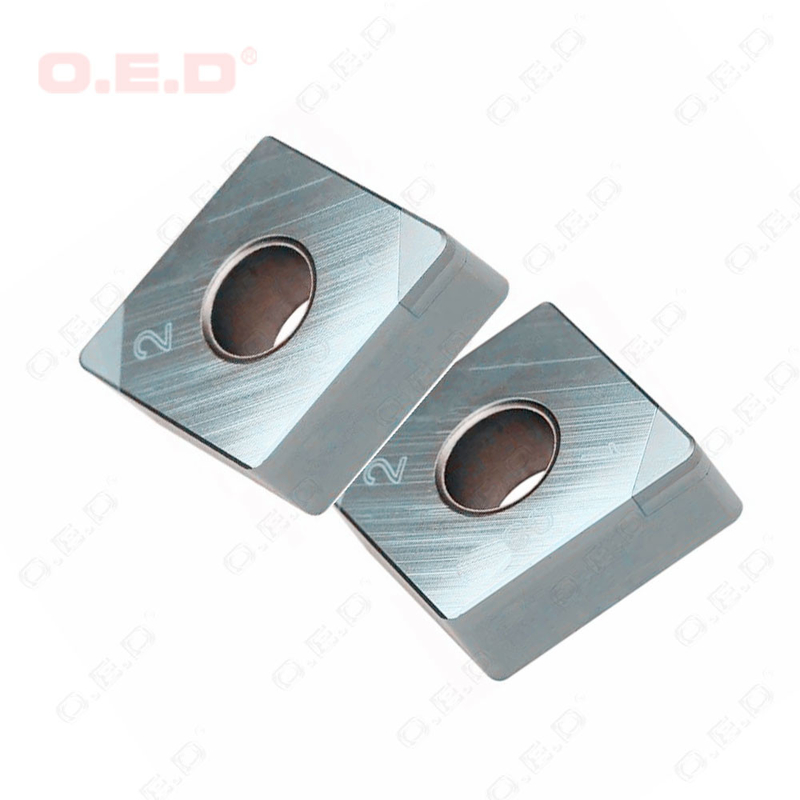

CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools

CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools
CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools

Large Image :  CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools

Product Details:
Place of Origin: China
Brand Name: OED or OEM
Certification: ISO 9001: 2008
Model Number: CCGW09T304
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: $1-$7/pc
Packaging Details: plastic box/+ Cartons
Delivery Time: Standard products in one week, special tools in 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month

CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools

Description
Material: Tungsten Carbide Type: DNMG
ISO Grade: PCD Inserts Item: CCGW09T304
ØI.C: 9.525 T: 4.76
Ød: 3.81 Re: 0.4-1.2
High Light:

CCGW09T304 CBN Inserts

,

Carbide Wood Turning Lathe Tools

,

CCMT060204 CBN Inserts

CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools​



CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools 0CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools 1



PCD-as is known as Polycrystalline Diamond inserts, is mainly suitable for processing aluminum, copper, acrylic, brass, plastics, stone, wood, non-ferrous metals, etc.



PCBN-Cubic Boron Nitride Blade (CBN) is mainly suitable for processing hardened steel, hard/ grey cast iron, HSS Roll. Sintered metal, high hardness materials

PCD Recommended Cutting Condition
Workpiece Cutting Speed
(m/min)
Depth of Cut
(mm)
Feed Rate (mm/rev)
Aluminum(5~8% SI ) 350~1600 0.05~2.50 0.10~0.40
Aluminum(8~ 12% SI ) 350~1300 0.05~2.50 0.10~0.40
Aluminum(14~18% SI ) 160~800 0.05~2.50 0.05~0.25
Copper 350~1000 0.15~2.50 0.05~0.20
Sintered Carbide 15~25 0.05~0.60 0.10~0.20
Glass Fiber 100~800 0.15~0.50 0.03~0.25
Carbon 160~700 0.15~2.50 0.15~0.40
High Aluminum 70~250 0.05~1.50 0.03~0.15
Ceramics
Wood 1000-2500 0.2~5.0 010~0.50





PCBN Recommended Cutting Condition
Workpiece Cutting method Cutting speed Feed Depth of cut
  (m/min) Turning (mm/rev) (mm)
    Milling (mm/tooth)
Gray cast iron Turning 400~1000 0.15~0.40 0.12~2.00
(180~230HB) Milling 400~1000 0.15~0.30 0.20~2.00
Chilled cast iron Turning 75~150 0.15~0.30 0.12~2.00
(400HB) Milling 120~ -240 0.15~0.30 0.20~2.00
Hardened steel Rough turning 60~140 0.15~0.40 0.70~2 50
(>HRC 45) Finish turning 100~140 0.10~0.20 0.12~0.75
  Milling 120~240 0.10~0.25 0.12~1.00
Supper alloy Turning 100~ 240 0.05~0.30 0.10~2.50
(HRC35) Milling 100~ 240 0.10~0.40 0.10~1.00
Sintered metal Turning 90~180 0.05~0.20 0.10~1.00
Miling 100~ 240 0.05~0.20 0.10~1.00
DCI roll, HSS roll Turning 45~60 0.60~0.80 2.00~4.00



CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools 2

CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools 3






CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools 4




CBN Inserts CCGW09T304 CCMT060204 TWO Tip PCBN Indexable Carbide Wood Turning Lathe Tools 5





Why choose us for carbide cutting tools:


  • Professional production equipment. From spray drying towers, extrusion molding, mold molding, injection molding, CIP, HIP sintering furnaces, flat grinders, heartless grinders, round grinders, EMD cutting, polishing machines, etc. OED can provide reliable quality assurance for your products.



  • The strict control of the production processing. From raw materials, sintering, processing, we will strictly test each process, non-conforming products will not enter the subsequent production.



  • Proficient technical team. Senior carbide raw materials engineers: To analyze whether the product meets your application requirements. Senior production managers: To study the most suitable for your product processing methods. Skilled technical inspectors: To test whether the finished product meets your drawing requirements.



  • Reliable service. Not only can we provide pre-sales technical services, but our engineers can also come up with product improvements to provide the most reasonable solution for your product.



  • Low-cost sample development. For trial orders, such as quantity below 10pcs, our engineer team can help customers to find the solution with mold fees. In this way, our customers can try the samples at a minimized cost.



  • Fast delivery. Standard products could be delivered in one week, and the special carbide tools could be finished in 25-45 days after confirming the drawings or 3D model.
