Product Details:
|
Material: | Tungsten Carbide | Application: | Carbide Bushing |
---|---|---|---|
ISO Grade: | G20 | Hardness: | HV30 1500 |
TRS: | 3800 | Density: | 14.45 |
Tolerance: | ISO 2768 F | ||
High Light: | Textile Industry Tungsten Carbide Bushes,ISO 2768 f Tungsten Carbide Bushes |

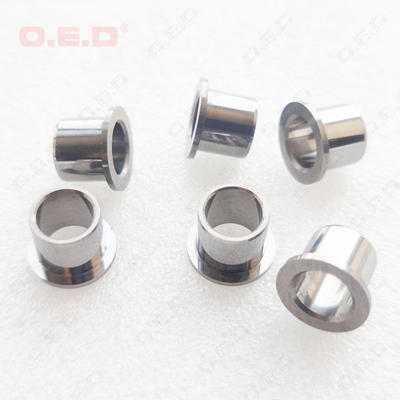

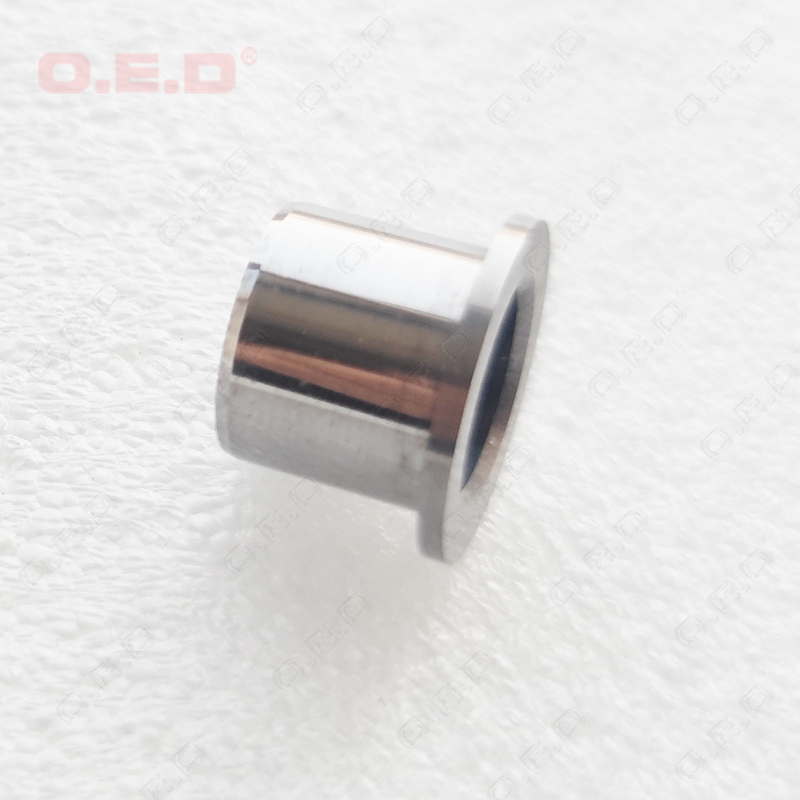

High Precision TC Wear Rings Tungsten Carbide Wear Bushers For Texitle Industry
Material G20(ZCC grade YG11)
Main Dimensions:
OD 13mm
ID 8h6mm
Height 5.5mm
Polished Ra 0.2
Hardness HRA 91.5
TRS >3000 N/mm2
Density 14.42 g/cm3
High hardness with good wear resistance.
Our products range of customized wear parts:
Recommended carbide grades for wear parts:
Application Code |
Grade | Chemical Composition | Physical and mechanical properties and mirco structure as stintered |
Application recommended | |||||||
Co | Tic/ TacNbc |
WC | Density | Hardness | Hardness | TRS | Coercivity | Grain Size | |||
g/cm3 | HV 30 | HRA | N/mm2 | KA/m | μm | ||||||
G05 | OG6X | 6 | 94 | 14.85~15.05 | ≥1500 | ≥91.00 | ≥1700 | 19.2~25.7 | 0.8 | For drilling soft or medium hard rock formation with a single-zxis compression strength less than 60 Mpa | |
G10 | OG6 | 6 | 94 | 14.85~15.05 | ≥1350 | ≥89.50 | ≥1800 | 12.0~15.9 | 1.6 | ||
G15 | OG8C | 8 | 92 | 14.55~14.75 | ≥1150 | ≥87.50 | ≥2000 | 7.6~9.6 | 2.5 | For drilling soft or medium hard rock formation with a single-zxis compression strength of60-120 Mpa | |
G20 | OG11C | 12 | 88 | 14.20~14.40 | ≥1050 | ≥86.50 | ≥2400 | 6.0~8.0 | 2.0 | ||
G30 | OG15 | 15 | 85 | 13.95~14.15 | ≥1050 | ≥86.50 | ≥2220 | 8.0~10.8 | 1.6 | For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa | |
G40 | OG20 | 20 | 80 | 13.45~13.65 | ≥750 | ≥83.50 | ≥2480 | 7.0~8.9 | 1.0 | ||
G50 | OG25 | 25 | 75 | 13~13.15 | ≥650 | 82.5 | ≥3500 | 10~13 | 1.6 | For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa |
Why choose us for carbide wear parts:
