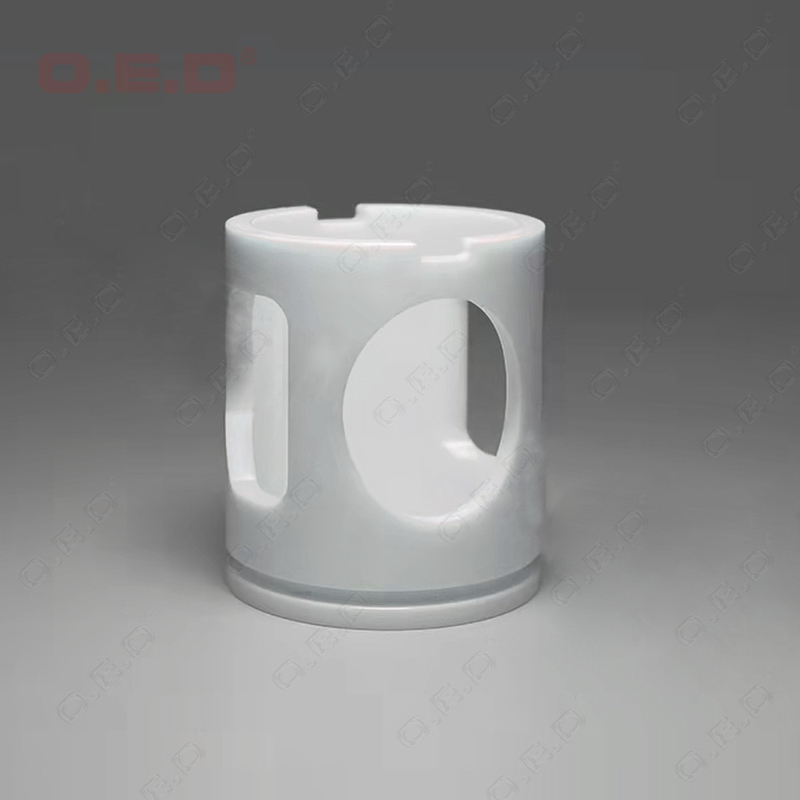

OED Ceramic Wear Parts , 3300 TRS Ceramic Shaft Sleeve ISO 2768 m

OED Ceramic Wear Parts , 3300 TRS Ceramic Shaft Sleeve ISO 2768 m
OED Ceramic Wear Parts , 3300 TRS Ceramic Shaft Sleeve ISO 2768 m

Large Image :  OED Ceramic Wear Parts , 3300 TRS Ceramic Shaft Sleeve ISO 2768 m

Product Details:
Place of Origin: China
Brand Name: OED or OEM
Certification: ISO 9001: 2008
Model Number: Ceramic wear parts
Payment & Shipping Terms:
Minimum Order Quantity: Small qty of amples are available.
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: Standard products in one week, special tools in 45 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000kgs per month

OED Ceramic Wear Parts , 3300 TRS Ceramic Shaft Sleeve ISO 2768 m

Description
Material: Tungsten Carbide Application: Ceramic Wear Parts
ISO Grade: Ceramic Hardness: HV30 1300
TRS: 3300 Density: 14.2
Tolerance: ISO 2768 M
High Light:

OED Ceramic Wear Parts

,

ISO 2768 M Ceramic Wear Parts

,

3300 TRS Ceramic Shaft Sleeve

Ceramic Pad Printer Rings Piston Wear Sleeves Carbide Wear Parts​



Ceramic offer better heat and wear resistance than carbide and can be harder. Therefore, in many low impact requirements of the use of environment, ceramic can be very good use in different applications.



Our products range of customized wear parts:



  • Mechanical seal parts
  • Pump bush
  • Pump sleeve
  • API ball and seat
  • Choke stem and seat
  • TC flow cages
  • Carbide disc
  • Drill nozzles
  • Wear inserts
  • TC Inlet plate
  • Wear rings



Why choose us for carbide wear parts:

  • Professional engineer team and skillful workers
  • 100% brand new material, various caribde grades for wear parts.
  • More than 25 years experience in producing wear parts.
  • Quality guarantee, no quality complaint over 25 years.
  • Cost effective and customized service is available.

Recommended carbide grades for wear parts:

Application
Code
Grade Chemical Composition Physical and mechanical properties
and mirco structure as stintered
Application recommended
Co Tic/
TacNbc
WC Density Hardness Hardness TRS Coercivity Grain Size
g/cm3 HV 30 HRA N/mm2 KA/m μm
G05 OG6X 6   94 14.85~15.05 ≥1500 ≥91.00 ≥1700 19.2~25.7 0.8 For drilling soft or medium hard rock formation with a single-zxis compression strength less than 60 Mpa
G10 OG6 6   94 14.85~15.05 ≥1350 ≥89.50 ≥1800 12.0~15.9 1.6
G15 OG8C 8   92 14.55~14.75 ≥1150 ≥87.50 ≥2000 7.6~9.6 2.5 For drilling soft or medium hard rock formation with a single-zxis compression strength of60-120 Mpa
G20 OG11C 12   88 14.20~14.40 ≥1050 ≥86.50 ≥2400 6.0~8.0 2.0
G30 OG15 15   85 13.95~14.15 ≥1050 ≥86.50 ≥2220 8.0~10.8 1.6 For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa
G40 OG20 20   80 13.45~13.65 ≥750 ≥83.50 ≥2480 7.0~8.9 1.0
G50 OG25 25   75 13~13.15 ≥650 82.5 ≥3500 10~13 1.6 For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa




OED Ceramic Wear Parts , 3300 TRS Ceramic Shaft Sleeve ISO 2768 m 0





OED Ceramic Wear Parts , 3300 TRS Ceramic Shaft Sleeve ISO 2768 m 1





OED Ceramic Wear Parts , 3300 TRS Ceramic Shaft Sleeve ISO 2768 m 2





OED Ceramic Wear Parts , 3300 TRS Ceramic Shaft Sleeve ISO 2768 m 3
