Product Details:
|
| Material: | Tungsten Carbide | Application: | Carbide Wear Strips |
|---|---|---|---|
| ISO Grade: | G10 | Hardness: | HV30 1500 |
| TRS: | 3300 | Density: | 14.2 |
| Tolerance: | ISO 2768 M | ||
| High Light: | Sliding Tungsten Carbide Strips,Tungsten Carbide Strips With Holes ,Tungsten Carbide Strips 110mm |
||

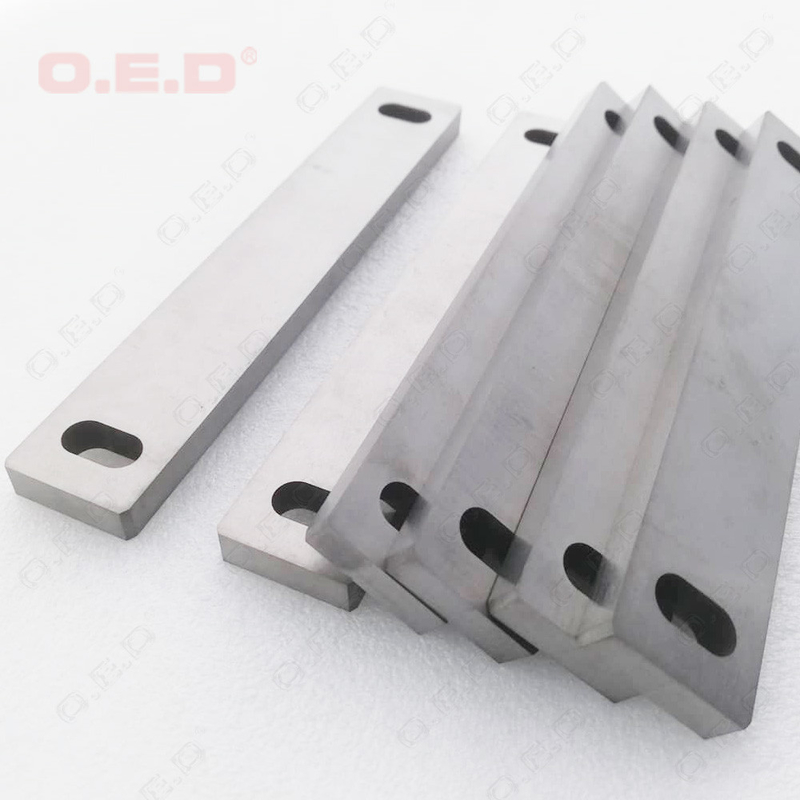

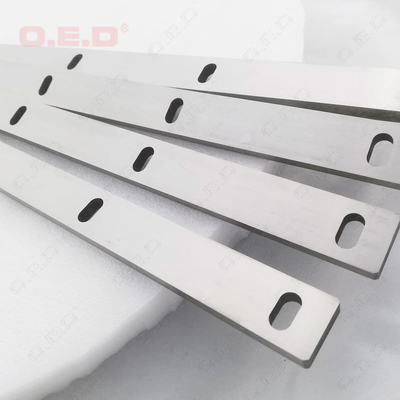

Ground Carbide Sliding Wear Strips Carbide Wear Fixing Strips With Holes
Sliding carbide wear strips
Length 110mm
Width 25mm
Thickness 5mm
Holes, round, oval, squar
It's good for spare parts of machine parts.
Our products range of customized wear parts:
Why choose us for carbide wear parts:
Recommended carbide grades for wear parts:
| Application Code |
Grade | Chemical Composition | Physical and mechanical properties and mirco structure as stintered |
Application recommended | |||||||
| Co | Tic/ TacNbc |
WC | Density | Hardness | Hardness | TRS | Coercivity | Grain Size | |||
| g/cm3 | HV 30 | HRA | N/mm2 | KA/m | μm | ||||||
| G05 | OG6X | 6 | 94 | 14.85～15.05 | ≥1500 | ≥91.00 | ≥1700 | 19.2～25.7 | 0.8 | For drilling soft or medium hard rock formation with a single-zxis compression strength less than 60 Mpa | |
| G10 | OG6 | 6 | 94 | 14.85～15.05 | ≥1350 | ≥89.50 | ≥1800 | 12.0～15.9 | 1.6 | ||
| G15 | OG8C | 8 | 92 | 14.55～14.75 | ≥1150 | ≥87.50 | ≥2000 | 7.6～9.6 | 2.5 | For drilling soft or medium hard rock formation with a single-zxis compression strength of60-120 Mpa | |
| G20 | OG11C | 12 | 88 | 14.20～14.40 | ≥1050 | ≥86.50 | ≥2400 | 6.0～8.0 | 2.0 | ||
| G30 | OG15 | 15 | 85 | 13.95～14.15 | ≥1050 | ≥86.50 | ≥2220 | 8.0～10.8 | 1.6 | For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa | |
| G40 | OG20 | 20 | 80 | 13.45～13.65 | ≥750 | ≥83.50 | ≥2480 | 7.0～8.9 | 1.0 | ||
| G50 | OG25 | 25 | 75 | 13~13.15 | ≥650 | 82.5 | ≥3500 | 10~13 | 1.6 | For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa |
|
